Electrical Desktop Dot Peen Marking Machine ThorX6 Software ISO9001 Certificate

China Electrical Desktop Dot Peen Marking Machine ThorX6 Software ISO9001 Certificate supplier
Electrical Desktop Dot Peen Marking Machine ThorX6 Software ISO9001 Certificate supplier Electrical Desktop Dot Peen Marking Machine ThorX6 Software ISO9001 Certificate supplier Electrical Desktop Dot Peen Marking Machine ThorX6 Software ISO9001 Certificate supplier

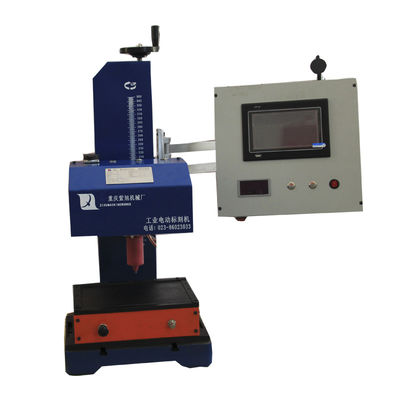

Large Image :  Electrical Desktop Dot Peen Marking Machine ThorX6 Software ISO9001 Certificate

Product Details:

Place of Origin: China(mainland)
Brand Name: ZIXU
Certification: FDA,ISO,CE
Model Number: EMK-D02

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1300-1600 per set
Packaging Details: Packing in carton,45*54*90cm
Delivery Time: after payment 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 600 sets per month
Contact Now
Detailed Product Description
Fixture: Manual Fixture For Plate Apply: Metal
Advantage: Depth Marking Controller: Touch Screen
Software: ThorX6 Product Name: Iso9001 Certificate Electrical Portable Dot Peen Marking Machine For Sale
Marking Area: 140x80mm Marking Materials: Above HRC60 Need Special Stylus
Repeat Accuracy: 0.02-0.04mm Power: 300w

Iso9001 Certificate Electrical Portable Dot Peen Marking Machine For Sale


Working Principle

Electric marking machine does not require gas source, the domestic initiative. Using electromagnetic printing, as long as there is power to work, the field work can be equipped with batteries, compared with the pneumatic marking system, low noise.


Application Range

The most advanced numerical control system, the key components insist on the use of high-cost imported accessories, the successful application of the product in many well-known domestic automobile production lines, has withstood the most severe test.

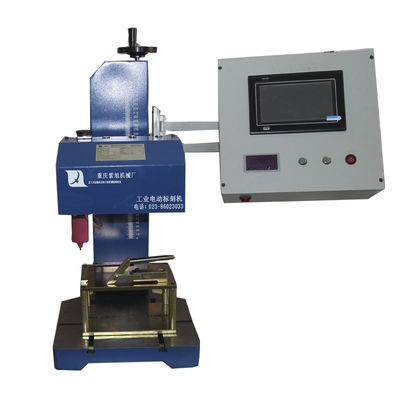

Electrical Desktop Dot Peen Marking Machine ThorX6 Software ISO9001 Certificate

Instructions

Electric marking machine simply connect the power and controller, write the contents of the controller to be marked, press the print button to start printing.


Product Features

Dot marking All labels (text, numbers, LOGO, QR codes, etc.) consist of a series of dots, each dot formed by a marking pin striking the marking surface. Controllable current pulse generated by the magnetic field generated by the magnetic field impact, carbide or inlaid industrial diamond marking needle in the magnetic field violently hit the surface of the workpiece, the high-performance spring needle back to the initial position, waiting for the next pulse . Adjust the marking frequency by adjusting the marking intensity and the movement speed of X and Y axes.

Marking area: 140X80mm(or customized)
Marking speed: 3-5 characters / second (2X2)
Software application system: LCD touch screen
Marking depth: 0.01-1.2mm Adjustable (depending on the material)
Accuracy Assurance:  ≤ 0.01
Height adjustment Range:  330mm
Automatic storage: can automatically store files and print content, 3L/S
analog display: you can directly observe the marking on the screen
Print pin impact frequency: 300 beats / second
Marking content: Chinese and English characters, numbers, graphics (By marking software editing) Graphic
Editing: Serial number (serial number) Automatic printing, storage, weight automatic detection, can identify the bar code
Marking material: all kinds of metal (HRC85 hardness below), all kinds of hard materials Plastic bakelite, etc.)
Power: 300W
Working voltage: 110VAC / 220VAC
Delviery time: 3-15 working days
Type of shipping: Express,air or sea
Terms of payment: T/T,credit card,western union
package size: 45X54X90cm
Gross weight: 67KG
Warranty time: one year


Service Content
1.1 year guarantee,providing free technical support.
2.During the warranty period, Warranty period, the required parts after the non-human damage free replacement,the freight is borne by us.
3.Machine has been adjusted before delivery, operation instructions is included in the delivery. If there is any other questions, pls kindly tell us.
FAQ

1 electric marking machine print speed and depth can reach how much? Marking speed is 3-8 characters mm / s, depth can reach 0.01-1mm

2. Reset function how? Reset the number of settings, each marking without zero-return detection, and can be positive and negative sequence marking greatly saves time and improve efficiency

3.electric marking machine can mark what content? Chinese and English characters, two-dimensional code, graphics, special symbols

4.Marking range? Standard range 140 * 80mm, marking range can be customize.


Design Features

Electric marking machine,a little different from pneumatic marking machine,belongs to dot peen marking machine.It can be marked without gas,more convenient compared with the traditional pneumatic marking machine.

Benchmarking machine or hand-held marking machine has a common feature of marking, marking depth, marking the general metal material, the mark can be clearly and permanently stored, in line with the mark of metal materials.


Packing And Shipping

Packing in carton case,56*45*90cm The machine gross is 1-75KG, you can use express delivery. If more than 75KG, you can choose sea transportation.


After-Sales Service

A: How to install and run the machine?
Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
B:How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

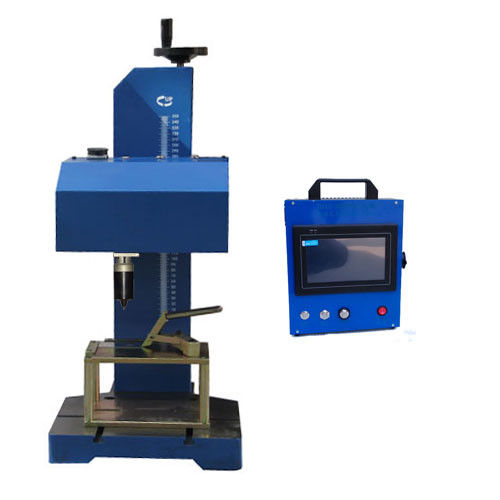

 Electrical Desktop Dot Peen Marking Machine ThorX6 Software ISO9001 Certificate
