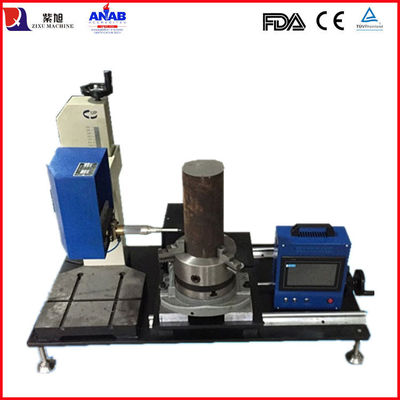

Product Guarantee Letter Sample Dot Matrix Marking Machine For Rotary Engraving

Product Guarantee Letter Sample Dot Matrix Marking Machine

Principle

 the controller controls the print pin in X-Y two-dimensional plane by a certain trajectory, while the print pin under the action of compressed air for high-frequency micro-impact movement, Thus printing beautiful marks on the workpiece. The printing method is tracing printing

Application:

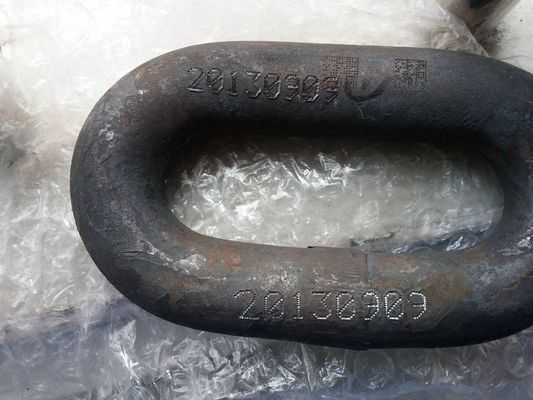

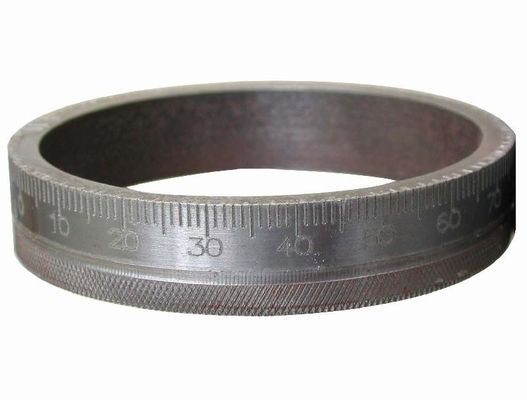

motorcycles, aerospace, aviation, electronics, instruments, meters and other fields, all kinds of metal, hard plastic parts of the logo and product nameplate printing (such as: instruments, meters and mechanical equipment Nameplate).

Usage method

Check the power, cable, trachea connection, after confirmation of correct power, gas source, according to the software manual editing marking the contents of the file.

Product features

Under normal circumstances, the pressure is set to 0.5MPa (general workpiece) or 0.2-0.3MPa (aluminum or nameplate). In the case of certain pressure, usually adjust the distance of the print pin to achieve different depths. You can achieve this by moving the handwheel up and down to print the mechanism

FAQ

1 electric marking machine print speed and depth can reach how much?                               Print speed is 3-8 characters mm / s, depth can reach 0.01-1mm                                              2. Reset function how?                                                                                                             Set the number of reset function, each marking without zero-return detection, and can be positive and negative sequential marking greatly save time and improve efficiency



Design features

Standard machine motor using a custom two-phase hybrid stepping motor, the rotor using the highest quality materials, with high step accuracy, high speed stability, high torque, so that the printing effect is very beautiful

After service

1. We sell the whole one year warranty, life-long maintenance;

2. Free installation, debugging my company sold products;

3. Free training for the use of operators, maintenance staff;

4. Free equipment upgrade software;

Packing and shipping

Packing in carton case, The machine gross is 1-75KG, you can use express delivery. If more than 75KG, you can choose sea transportation.

Chuke Factory

Chuke Machinery Factory was established in 2006, before my company staff have many years of machining experience, so initially I was established in the production of marking the needle business, with the customer's needs, our company has gradually achieved business expansion , So far the company's technology has been in the forefront of domestic counterparts, customized business reached a new level, both pneumatic marking machine or laser marking machine have been recognized by customers, marking needle is occupied the vast domestic market Part of the market. Our products have been certified by world famous quality system, including: ISO, CE, PDA, TUV and so on. Recently, the company is capturing new technical problems and providing brand new services to customers with higher requirements. Our products are completely free within the warranty period of repair and replacement, the warranty period only charge a cost, at any time to solve the urgent needs of customers, in order to solve customer needs for the purpose. No matter where you are, we can serve you.
