| Min Quantity: | 5 Set | Marking Depth: | 0.01-1mm |
|---|---|---|---|
| Marking Materials: | High Melting Point Material | Type: | Electric Marking Machine |
| System Functions: | Date And VIN Code | Screw Thread: | M24 |
| High Light: | metal laser engraving machine,industrial laser marking machine |
||

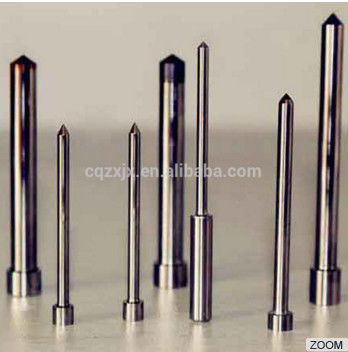

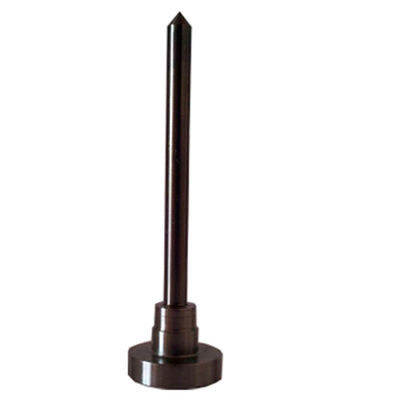

OEM Lowest Price Custom Electric Writing/Engraving Pen Needle/Pins/Stylus Core
Principle
Electric marking needle through the magnetic field generated by the coil, driven needle for marking.
The electric coil generates electromagnetic induction, the electromagnetic force drives the needle core forward, and different impact forces can be formed according to the winding manner of the coil.
Application:
Imported alloy needle
Core hardness reached HRA93.8 °, can be widely applied to a variety of hardness less than HRC60 ° metal materials.
Such as copper, aluminum, stainless steel and so on
Wear resistance is three times the normal alloy core.
Usage method
Test marking needle spring is reasonable placement, through high-speed and low-speed marking for testing.According to the design requirements, the cable needs to be connected to the controller, and the specific voltage can form a certain impact strength.
Product features
Custom colors to meet customer needs. And to meet the needs of customers for different types of needles
| type | marking needle |
| Size | 4 mm |
| length | 65mm |
| Type | Electric marking needle |
FAQ
Needle first marking will not come out: Should be too far away from the product needle core, needle core is not much return, which resulted in the needle core can not be reset, the needle core down regulation.
Function
Applying the most widely used up-down lifting structure to realize multi-functions.
For non-corrosive or depth marking needs
After service
1. We sell the whole one year warranty, life-long maintenance;
2. Free installation, debugging my company sold products;
Packing and shipping
Packing in carton case,20*20*25cm The machine gross is 1-75KG, you can use express delivery. If more than 75KG, you can choose sea transportation.
| Delviery time | 1-3 working days |
| Type of shipping | Express |
| Terms of payment | T/T,credit card,,paypal |
| package size | 20x20x10cm |
| Gross weight | 0.5KG/5 piece |
