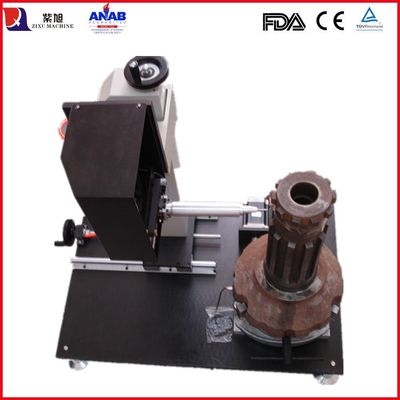

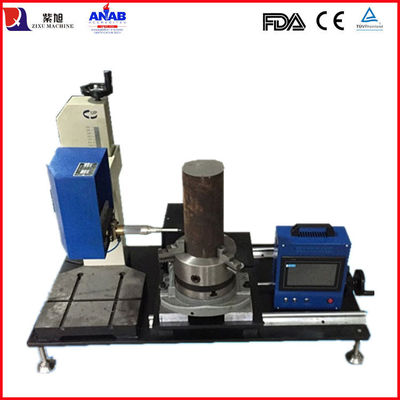

Lcd Controller Rotary Dot Matrix Engraving Machine For Metal Pipe
Principle

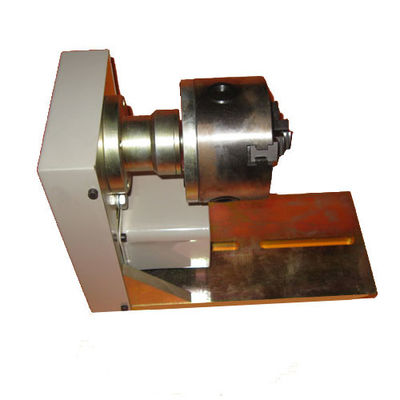

The motor drives the rotating disc to rotate along with the product. The marking needle then works together. While the product is rotating, the marking machine engraves the model on the flange.
Application:
Flange marking is an essential part of the flange type because of special. Flanges need to mark the circumference, then need to use a custom large flange.
| model | Dot pin marking machine |
| weight | 67kg |
| Machinpower | <300w |
| Power supply | 220v/110v |
| Strokefre quency | 300times/s |
| Marking speed | 2-5 characters(2x2mm)/s |
| Marking depth | 0.01 to 1mm (Vary to the material) |
| Standard marking area | 140x80mm |
Usage method
1. Keep the marking cylinder liner cleaning, do not allow dust, iron filings into the cylinder or copper sleeve.
2. The pressure regulator should be free of water inside, no impurities.
3. Limit switch does not allow oil and iron filings and so on.
4. Compressed air should meet: clean, anhydrous, no impurities.
Product features
Accuracy to ensure continuous work 5 years Font accuracy error ≤ 0.01 Printing materials Various metals (hardness HRC60 or less) Various hard materials
Optional print direction, down, left, right and tube arc, fan-shaped
Input method manual, automatic serial number increase (optional incremental) a variety of fonts optional
Graphics editing software provides self-editing text editor also provides various types of logo text editing
FAQ
Marking machine does not mark: There may be operational problems, you should first connect the controller and marking head, and then turn on the power and software.
Design features
Standard machine motor using a custom two-phase hybrid stepping motor, the rotor using the highest quality materials, with high step accuracy, high speed stability, high torque, so that the printing effect is very beautiful
After service
1. We sell the whole one year warranty, life-long maintenance;
2. Free installation, debugging my company sold products;
3. Free training for the use of operators, maintenance staff;
4. Free equipment upgrade software;
Packing and shipping
Packing in carton case, The machine gross is 1-75KG, you can use express delivery. If more than 75KG, you can choose sea transportation.
| Delviery time | 7-15 working days |
| Type of shipping | Express or by sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 45x54x90cm |
| Gross weight | 67kg |
Chuke Factory
Chuke Machinery Factory was established in 2006, before my company staff have many years of machining experience, so initially I was established in the production of marking the needle business, with the customer's needs, our company has gradually achieved business expansion , So far the company's technology has been in the forefront of domestic counterparts, customized business reached a new level, both pneumatic marking machine or laser marking machine have been recognized by customers, marking needle is occupied the vast domestic market Part of the market. Our products have been certified by world famous quality system, including: ISO, CE, PDA, TUV and so on. Recently, the company is capturing new technical problems and providing brand new services to customers with higher requirements. Our products are completely free within the warranty period of repair and replacement, the warranty period only charge a cost, at any time to solve the urgent needs of customers, in order to solve customer needs for the purpose. No matter where you are, we can serve you.
