Product Details:
Payment & Shipping Terms:
|
Machine Type: | Portable | Application: | Vin Code Marking |
---|---|---|---|
Marking Material: | Carbon Steel | Marking Type: | Dot Peen Penumatic Marking Machine |
Feature: | Computer Control | System Functions: | Character |
Advantage: | Noncontact Machining | ||
High Light: | dot peen engraver,handheld dot peen marking system |

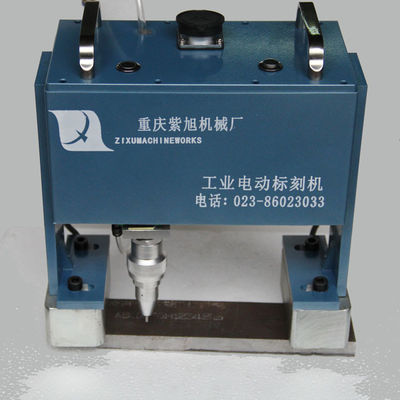

Portable Dot Matrix Engraver Metal Vin Code Marking Machine
Principle

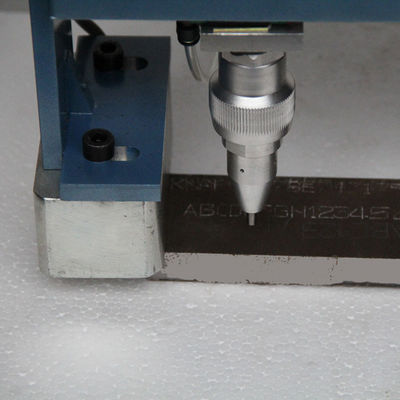

Slider moving on the precision rail, the marking head constantly impact, forming a certain magnitude, when the metal surface contact with the product will form a depression. It is because of these indentations formed a marking line.
Application:

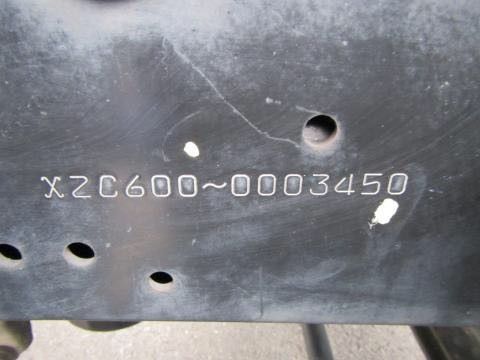

Auto parts is the most widely used industry, the car contains many parts, each part in the course of the need to easily identify the model, so parts must be marked, marking models and brands.
model | Dot pin marking machine |
weight | 23kg |
Machinpower | <300w |
Power supply | 220v/110v |
Strokefre quency | 300times/s |
Marking speed | 2-5 characters(2x2mm)/s |
Marking depth | 0.01 to 1mm (Vary to the material) |
Standard marking area | 130x30mm |
Usage method
Mechanical Maintenance and Care:
1.X, Y-axis linear guide should be kept clean, do not allow dust or iron to stay on the top, so as not to affect the slide accuracy.
2.X, Y-axis linear guide plus 20 # above a little oil to keep the linear guide lubrication.
3. Regularly check the X, Y-axis timing belt tension.
Product features
Marking area 100mm × 20mm, 150mm × 80mm, or customized according to customer requirements (optional electromagnetic absorption type)
Run the system win98 / windows2000 / windowsXP
marking a variety of Chinese and English characters, numbers, graphics (by marking software editing), serial number, VIN code and graphic security tag
Bar code can support external bar code machine, bar code printing source
Knock or hit Quick marks for grouping workpieces
Print speed 2-4 characters / second (2 characters) Line 80mm / s *** Small characters 1 × 1mm
Print needle impact frequency 220-300 times / sec marking pin hardness> HRC92 Working voltage 220VAC
Compressed air 0.3-0.6Mpa 2L / s Print depth 0.1 ~ 1.2mm adjustable (depending on the material)
FAQ
Left and right marking machine does not move: Check the cable is loose. Under normal circumstances is loose, re-tighten.
Design features
Graphics conversion provides a variety of graphics file conversion
Data Retrieval Archives daily print content and retrieves historical print data at any time
Automatic memory setting status, automatic comparison of serial number serial number, VIN, reminder repeat
Text positioning to provide mouse drag and coordinate input automatically save automatically prompted to save the file
After service
1. We sell the whole one year warranty, life-long maintenance;
2. Free installation, debugging my company sold products;
3. Free training for the use of operators, maintenance staff;
4. Free equipment upgrade software;
Packing and shipping
Packing in carton case, The machine gross is 1-75KG, you can use express delivery. If more than 75KG, you can choose sea transportation.
Delviery time | 7-15 working days |
Type of shipping | Express or by sea |
Terms of payment | T/T,credit card,,paypal |
package size | 45x45x55cm |
Gross weight | 23kg |
