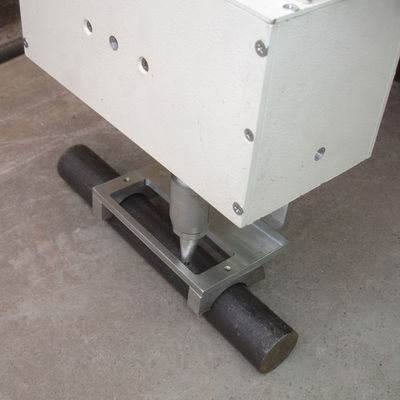

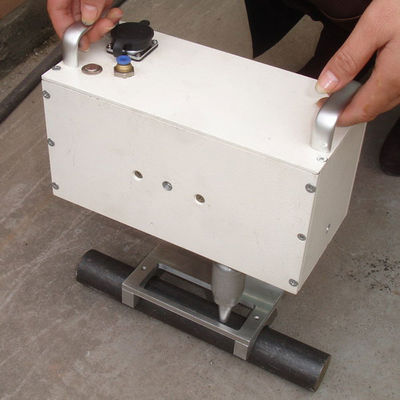

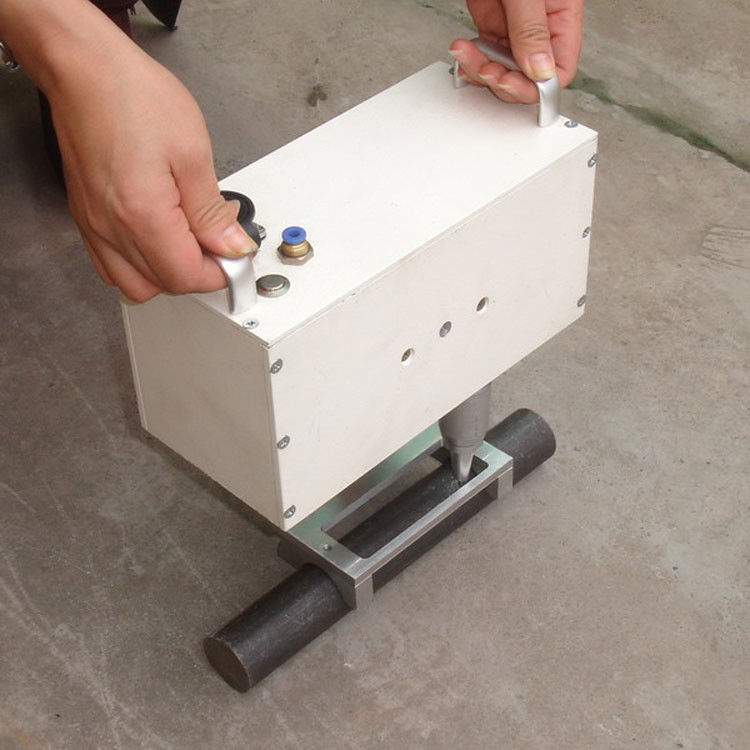

Tube Metal Lot Number Dot Pipe Marking Machine With Pc Controller
Principle
Computer-controlled stepper motor to print the needle in accordance with the predetermined characters or graphics track, while compressed air so that the print needle at a frequency of 200 times per second up and down vibration, hit the workpiece by a continuous dot matrix composed of characters and graphics.
Application:
For a variety of metal or non-metallic signs, parts of the plane marking, and cylindrical workpiece radial marking. Especially for a variety of nameplates, signs marking, easy to use and economical.
| model | Dot pin marking machine |
| weight | 23kg |
| Machinpower | <300w |
| Power supply | 220v/110v |
| Strokefre quency | 300times/s |
| Marking speed | 2-5 characters(2x2mm)/s |
| Marking depth | 0.01 to 1mm (Vary to the material) |
| Standard marking area | 130x30mm |
Usage method
For pneumatic marking machine, can be used in some machinery, instrumentation and other industries, it is also an easy maintenance equipment, but when maintaining the pneumatic marking machine, or need to pay attention to some points.
1, pneumatic marking needle more oil, the general use of light sewing machine oil. The location of the oil to pay attention to: mainly in the pneumatic marking machine outside the head of the needle oil, but also to rotate the needle regularly to ensure that the internal can touch. This avoids wear and tear.
2, when the oil to avoid stained oil on the belt, otherwise it will cause the belt skid, resulting in marking the results of mistakes.
3, regular use of blowing dust gun, blow off the pneumatic marking machine controller's internal dust.
Product features
Marking range: 125x85 (150 × 130 / <200 × 150/300 × 200 (mm) custom.>
Marking depth: 0.01 ~ 2mm (depending on the material hardness)
Marking speed: 30 ~ 40mm / s
Lifting range: 300mm
Machine power: 500W
Pressure requirements: 0.3 ~ 0.6Mpa (industrial gas or compressor gas source)
Power Requirements: 220V ± 10% 50HZ ± 1%
Material hardness: ≤ HRC60
Wooden box packaging: 560 * 380 * 720 (L * W * H) mm
Weight: 50KG (excluding computer);
FAQ
1 electric marking machine print speed and depth can reach how much? Print speed is 3-8 characters mm / s, depth can reach 0.01-1mm 2. Reset function how? Set the number of reset function, each marking without zero-return detection, and can be positive and negative sequential marking greatly save time and improve efficiency
Design features
serve the customers with one heart, friends make friends all over the world" for the purpose of operating in good faith, perfect service for the concept of good service for each of a marking equipment, and strive to create one-stop solution to the trouble of laser equipment users of service companies.
After service
1. We sell the whole one year warranty, life-long maintenance;
2. Free installation, debugging my company sold products;
3. Free training for the use of operators, maintenance staff;
4. Free equipment upgrade software;
Packing and shipping
Packing in carton case, The machine gross is 1-75KG, you can use express delivery. If more than 75KG, you can choose sea transportation.
| Delviery time | 7-15 working days |
| Type of shipping | Express or by sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 45x45x55cm |
| Gross weight | 23kg |
Chuke Factory
Chuke Machinery Factory was established in 2006, before my company staff have many years of machining experience, so initially I was established in the production of marking the needle business, with the customer's needs, our company has gradually achieved business expansion , So far the company's technology has been in the forefront of domestic counterparts, customized business reached a new level, both pneumatic marking machine or laser marking machine have been recognized by customers, marking needle is occupied the vast domestic market Part of the market. Our products have been certified by world famous quality system, including: ISO, CE, PDA, TUV and so on. Recently, the company is capturing new technical problems and providing brand new services to customers with higher requirements. Our products are completely free within the warranty period of repair and replacement, the warranty period only charge a cost, at any time to solve the urgent needs of customers, in order to solve customer needs for the purpose. No matter where you are, we can serve you.
