Application:
Auto parts, metal nameplate changes on the parameters.
1, cars, motorcycles and other engines, pistons, body, frame, chassis, connecting rod, engine, cylinder and other parts number, name, trademark, date of production marking.
2, electric cars, bicycles, motorcycles and other frame number marking.
3, a variety of products, vehicles, equipment, product label marking.

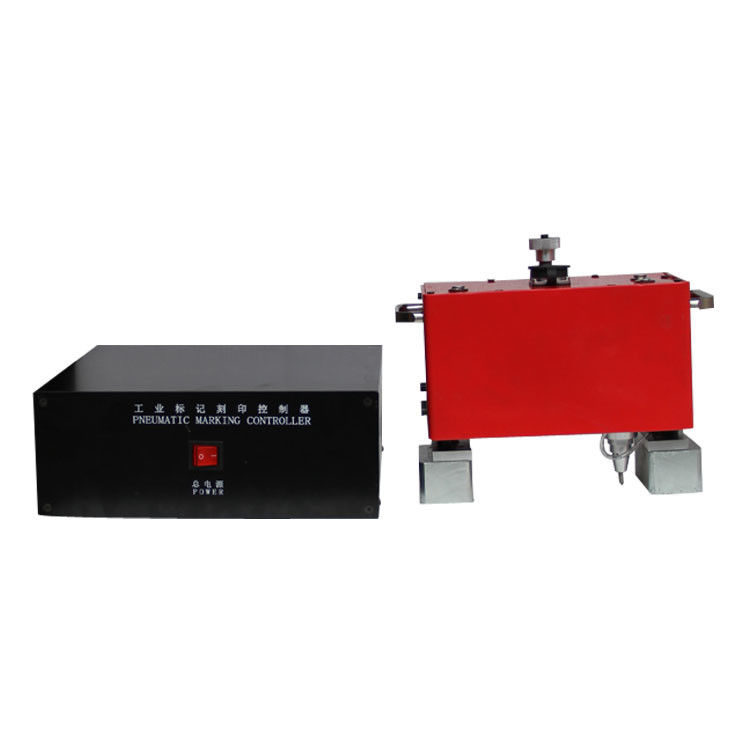

Portable Dot Peen Marking Machine parameter
| model | Pneumatic marking machine |
| weight | 20kg |
| Machinepower | <300w |
| Power supply | 220v/110v |
| Stroke frequency | 300times/s |
| Marking speed | 2-5 characters(2x2mm)/s |
| Marking depth | 0.01 to 1mm (Vary to the material) |
| Standard marking area | 130x30mm |
Usage method
Controller maintenance
Equipment due to its long-term exposure to the characteristics of the air, a long time in the circuit board easy to fouling, long time not easy to clean the circuit is likely to cause short circuit. The way to clear is to turn off the power of the controller, open the cover of the cabinet, and blow the dust inside with clean air. Usually should also pay more attention to dust outside the chassis work.
Note: The controls should be placed in a well-ventilated, dry and dust-free place.
Product features
The machine can print a variety of characters, serial number, VIN code and graphic anti-counterfeit marks, fan-shaped marking and drop less than 3mm cylindrical marking, but also an external synchronous rotating fixture for circumferential marking.
FAQ
Unable to open print program.cause of issue?
A. There is a marking icon in the computer interface but I can not open the marking program.
First understand the marking program used by the device.
marking program using USB Procedure:
Connect the wires between all devices. (Must be properly connected)
First, open the computer host, monitor power switch.
Open the controller's power switch.
Third, open the marking program.
If you still can not open the marking program, follow these steps:
One. Close the marking program. (Do not need to turn off the computer host, monitor power)
Second, turn off the controller power switch. (5 seconds before turning the power switch)
Three. Unplug the USB cable on the controller. (1 second later plug back)
Design feature
Various mechanical parts, machine tools, metal products, metal pipes, gears, pumps, valves, fasteners, steel, instrumentation. Mechanical and electrical equipment such as metal marking; marking plastic products.
After service
The engineering department is responsible for tracking and handling customer problems reflected in the business and quality. According to the analysis reasons and testing data of the Quality Center, the products are insured and processed to ensure that the after-sales service of the products is completed in a reasonable, orderly and timely manner to satisfy the customers' satisfaction.
Packing and shipping
Products placed in the box way to smooth, reliable principle, choose vertical, flat, staggered placed back to back and so on, depending on the specific product. After packaging to ensure that the product during normal handling does not occur in the tumbling box, a serious tilt phenomenon.
| Delviery time | 7-15 working days |
| Type of shipping | Express,air or sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 45*45*55cm |
| Gross weight | 22KG |
Chuke Factory
The quality of the company as the soul of our business! 10 years of insistence, let us get excellent reputation in the industry. Intentions of the service to our customers more trust. Professional design, thoughtful after-sale, pneumatic stamping stainless steel stamping machine, let our products are exported to all corners of the country, won the unanimous praise of customers at home and abroad! We firmly believe that through the joint efforts of CHUKE people, we will surely make all enterprises have their own identification system and successfully create a business anti-counterfeiting and traceability system.
