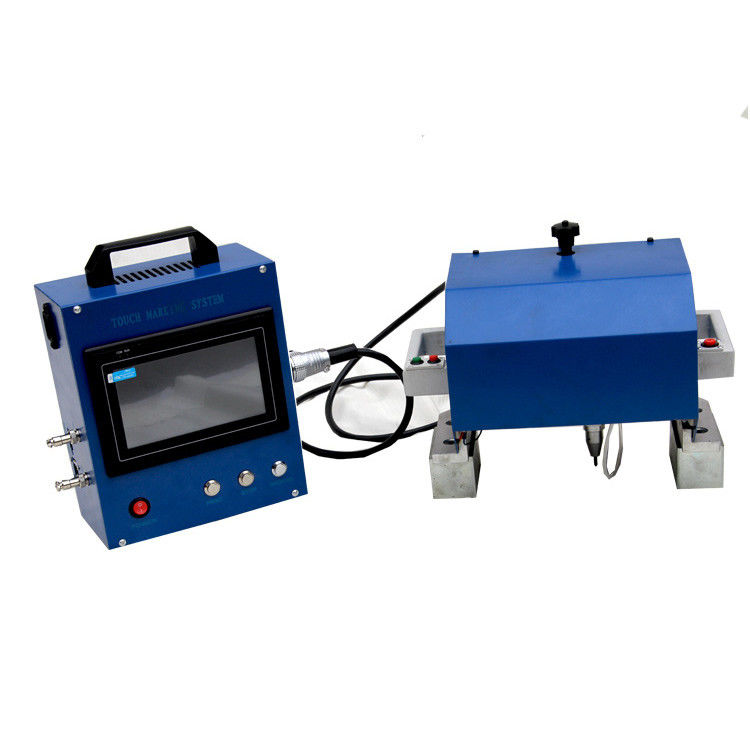

Number cnc Chassis Pneumatic Marking Machine Iso9001 Certificate Serial


Principle:


Through the Chinese characters to be printed, the contents of the graphics input into the computer, computer marking software to change the content of digital control signals sent to the controller to drive the print pin in the X-Y two-dimensional plane according to the set trajectory, while achieving compliance Needles in the role of compressed air for high-frequency micro-impact movement, which printed on the workpiece surface by the dense lattice composed of concave mark

Application:

It is suitable for marking flat and cylindrical workpieces of various metal and nonmetal nameplate parts such as steel, copper, iron, aluminum, alloy and plastic. It is widely used in automobile and motorcycle parts, machinery, flange, electrical equipment, Metal pipe and other fields.

Portable Dot Peen Marking Machine parameter



Usage method

⑴ connected to air;
⑵ adjust the pneumatic duplex, the pressure is 0.2-0.4Mpa;

⑶ open the total power supply;
⑷ start the computer, in accordance with the computer prompted to enter the working state of marking;

⑸ open the control box power, the manual / automatic key placed in the "automatic" state;
Edit the marking file contents according to the software manual.

Shut down:

⑴ off the computer;

⑵ off control box power;

⑶ cut off the total power supply;

⑷ cut off the gas source. "
Product features

 According to the needs of industrial production automatically print the serial number, serial number, can print international standard VIN code, bar code and two-dimensional code mark

FAQ

Marking needle does not work cause of issue?
The needle does not vibrate or vibrate very weakly.
Check if the 'Ventilation' switch is on.
Note: You must also open the 'air valve switch' on the software and the 'air switch' on the marking machine head at the same time.
Check the pressure of the size.
Normal working pressure is: 0.4 ~ 0.6MPa pressure
Note: When using gas station or air compressor to supply air to marking machine, the output pressure of gas station or air compressor must be greater than the air pressure of pressure regulating valve for marking machine. Such as: gas station or air compressor output pressure 0.8 MPa, pressure regulator for marking machine pressure 0.4 MPa-0.6 MPa)

Design feature

There are special requirements on the depth of the pneumatic marking machine must also be selected, if the amount is large, the choice of laser marking machine or electro-corrosion marking machine, there is a variety of heavy heavy parts marking, marking often need to off-site operations , Pneumatic marking machine is a good choice, and the price is moderate, you can use the portable computer integrated machine, suitable for field operations marking.

After service


If the products provided by the company to the customers are already in use or installed, there are product quality problems or service problems, the products are dealt with in accordance with the after-sale treaties of the company's products and the unscheduled maintenance is carried out to ensure that the products of the company run accurately and smoothly at the customer's site to meet the customers' actual conditions Demand, continue to enhance customer satisfaction.

Packing and shipping
Carton pacaking with PE foam inside for courier express.
