Principle:
The contents of the input to computer English character and graphics printing, computer marking software convert the content of digital control signal transmitted to the controller, drive and print on the workpiece play consisting of a continuous lattice character and graphics; the needle in the X Y two dimensional plane trajectory according to the set, and print needle under the effect of compressed air on the surface of the work piece to print out the concave marks composed of dense lattice.
Application:
Markings of motorcycle frames, large pipes, special-shaped pieces, nameplates, and various workpieces that are not moved easily

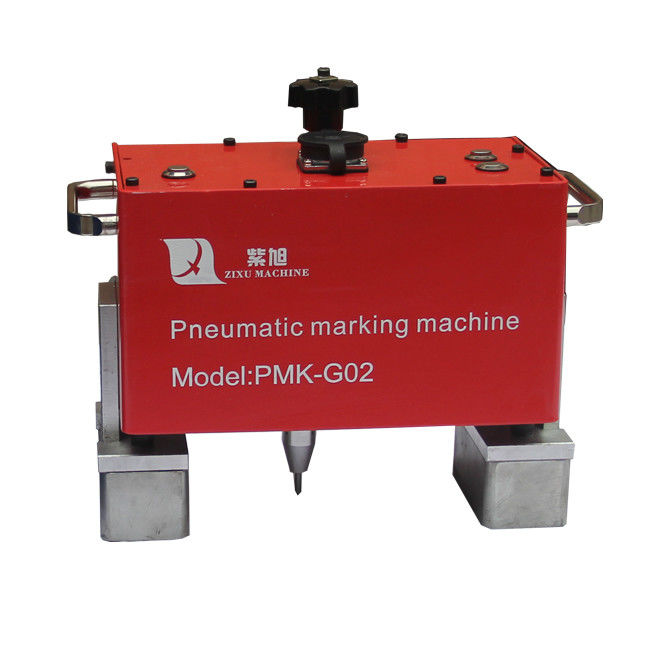

Portable Dot Peen Marking Machine parameter
| model | Pneumatic marking machine |
| weight | 20kg |
| Machinpower | <300w |
| Power supply | 220v/110v |
| Strokefre quency | 300times/s |
| Marking speed | 2-5 characters(2x2mm)/s |
| Marking depth | 0.01 to 1mm (Vary to the material) |
| Standard marking area | 130x30mm |
Usage method
For not easy to move to the workpiece on the bench marking, marking machine head to move the workpiece marking, it inherits the advantages of desktop pneumatic marking machine original, made a great improvement in the applicability of the products, to make up for the lack of bench marking machine, widely used in automobile beam easy to use, simple operation, easy to carry, can be matched with a notebook computer or machine.
Product features
The single chip microcomputer pneumatic marking machine instead of the traditional pneumatic marking machine connected to the computer is more suitable for industrial harsh environmental requirements.
FAQ
1. How to choose a suitable marking machine?
Identify the product material, general metal pneumatic marking machine, fiber laser marking machine, individual rigid plastic can also be used pneumatic marking machine, but to take into account the thickness of the product. Non-metallic (such as ceramics, synthetic materials, rubber leather, paper, vernier caliper) CO2 laser marking machine.
Design feature
Pneumatic marking machine marking head place switch using Japanese OMRON products, high precision, good reliability, our company uses the most advanced circuit design, and SCM participation control mode, the printer has a very long continuous working hours, stable operation reliable
After service
1. We sell the whole one year warranty, life-long maintenance;
2. Free installation, debugging my company sold products;
3. Free training for the use of operators, maintenance staff;
4. Free equipment upgrade software;
Packing and shipping
Carton pacaking with PE foam inside for courier express.
| Delviery time | 7-15 working days |
| Type of shipping | Express,air or sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 45*45*55cm |
| Gross weight | 22KG |
Chuke Factory
Chuke Machinery Factory was established in 2006, before my company staff have many years of machining experience, so initially I was established in the production of marking the needle business, with the customer's needs, our company has gradually achieved business expansion , So far the company's technology has been in the forefront of domestic counterparts, customized business reached a new level, both pneumatic marking machine or laser marking machine have been recognized by customers, marking needle is occupied the vast domestic market Part of the market. Our products have been certified by world famous quality system, including: ISO, CE, PDA, TUV and so on. Recently, the company is capturing new technical problems and providing brand new services to customers with higher requirements. Our products are completely free within the warranty period of repair and replacement, the warranty period only charge a cost, at any time to solve the urgent needs of customers, in order to solve customer needs for the purpose. No matter where you are, we can serve you.
