Cnc Dot Pin Marking Machine Model Number Name Plate Ce Certificate

China Cnc Dot Pin Marking Machine Model Number Name Plate Ce Certificate supplier

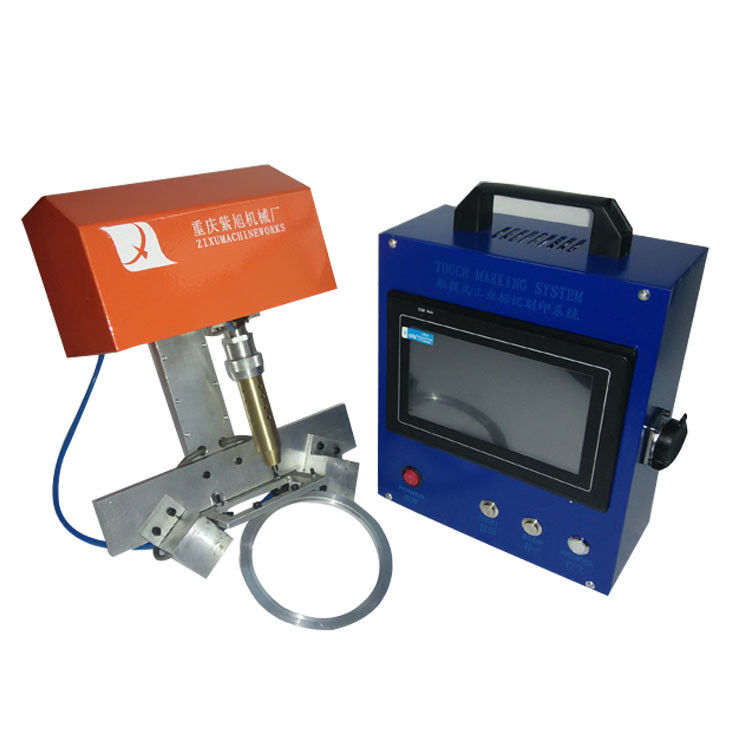

Large Image :  Cnc Dot Pin Marking Machine Model Number Name Plate Ce Certificate

Product Details:

Place of Origin: China(mainland)
Brand Name: CHUKE
Certification: FDA,ISO,CE
Model Number: PMK-D01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1300-1600 per set
Packaging Details: Packing in carton,45*45*55cm
Delivery Time: after payment 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 600 sets per month
Contact Now
Detailed Product Description
Marking Characteristic: Plus Hard,Large Thread Application: Body Of Motorcycle
Application Material: Steel, All Kinds Of Metal Materials Marking Speed: 2-5 Chanracters/s
Marking Area: 140x80mm Product Name: Ce Certificate Model Number Name Plate Cnc Dot Pin Marking Machine
Marking Materials: Above HRC60 Need Special Stylus Power: 300w/220V/110V 50hz-60hz
Stylus Material: Alloy Steel
High Light:

pneumatic engraving machine

,

pneumatic metal stamping machine

Ce Certificate Model Number Name Plate Cnc Dot Pin Marking Machine


Principle:

The working principle of the pneumatic marking needle is to make the high-frequency impact movement through the pressure generated by air compression and the reaction of the spring, and then print a certain depth mark on the workpiece


Application:
Hardened steel, such as high hardness steel, wheel, cylinder, gear, bearing, valve body, flange, sensor, transformer, oil pipe, steel pipe, roll, plate.Cnc Dot Pin Marking Machine Model Number Name Plate Ce Certificate
Portable Dot Peen Marking Machine parameter

model Pneumatic marking machine
weight 20kg
Machinpower <300w
Power supply 220v/110v
Strokefre quency 300times/s
Marking speed 2-5 characters(2x2mm)/s
Marking depth 0.01 to 1mm (Vary to the material)
Standard marking area 140x80mm



Usage method


When the pneumatic marking machine is working normally, the walking track is normal, but the needle or the amplitude is not out, the cause analysis and the method of displacement are:
Reason:
Terms of settlement:
(1) without unloading the needle sleeve, with a needle rod ordinary sewing machine oil can be directly coated on the outside; or if not, it may be a set of internal needle dirt stuck, as long as the removal of the needle by gas blowing in ladle clean or clean. Generally, the possibility of the latter is very small, as long as it takes first steps.
(2) regularly released in oil-water separator, and rotating the needle sleeve, clean the oil on the O ring.


Product features

Domestic devaluation USB2.0 high-speed data interface, data transmission faster and more stable, with double column linear bearing structure, no horizontal clearance, more accurate positioning, more freedom, imported linear guide, stepper motor, solenoid valve, wear-resistant , Longer service life
FAQ

can your marking needle be made of high hardness material?"
No problem, of course. Our diamond needle is specially designed for a variety of high cemented carbide. Maximum hardness of up to 60hrc.


Design feature
Accessories that comes with marking machine is the next big thing. User can create complete automatic systems using them. Manual nameplate clamping device, Pneumatic nameplates clamping device are included in accessories. It has fully customized auto nameplate feeder application already developed for automated process. With Penumatic and Electric marking machines there are other variants too. It is available as a 3 axis machine with either a rotary device to mark on circumferential components or motorized Z axis machine to adjust heights based upon component thickness.

After service

1. We sell the whole one year warranty, life-long maintenance;
2. Free installation, debugging my company sold products;
3. Free training for the use of operators, maintenance staff;
4. Free equipment upgrade software;

Packing and shipping
Packaging Details
Plywood case

Delivery Time
3 days(depends on your quantity request)

Delviery time 7-15 working days
Type of shipping Express,air or sea
Terms of payment T/T,credit card,,paypal
package size 45*45*55cm
Gross weight 20KG



Chuke Factory

Chongqing masamaso Intelligent Machinery Co. Ltd. specializes in R & D and production of marking needle for 11 years, sales throughout the country, export is 7 years, marking the needle has been foreign customers high praise and recognition, in Germany, Brazil, India, Indonesia, Pakistan, Turkey and other countries have agents and clients. Through cooperation with foreign clients, but also abroad with the West moment, technifor, marking needle advantage, and domestic top marking machine company yisiwo, Huapu also reached a strategic cooperation agreement, purple professional R & D team and production team has become a top class marking needle production experts. specializes in R & D and production of marking needle for 11 years, sales throughout the country, export is 7 years, marking the needle has been foreign customers high praise and recognition, in Germany, Brazil, India, Indonesia, Pakistan, Turkey and other countries have agents and clients. Through cooperation with foreign clients, but also abroad with the West moment, technifor, marking needle advantage, and domestic top marking machine company yisiwo, Huapu also reached a strategic cooperation agreement, purple professional R & D team and production team has become a top class marking needle production experts.
