Principle:
Needle under the action of compressed air for high-frequency vibration, the impact of the workpiece.At the same time, computer-controlled two-dimensional motion mechanism driven by the needle in accordance with the preset trajectory.Thus the formation of characters and graphics on the workpiece
Application:
Automobiles, motorcycles and other engines, pistons, body, frame, chassis, connecting rod, engine, cylinder and other parts number, name, trademark, production date printing.
Portable Dot Peen Marking Machine parameter
| model | Pneumatic marking machine |
| weight | 67kg |
| Machinpower | <300w |
| Power supply | 220v/110v |
| Strokefre quency | 300times/s |
| Marking speed | 2-5 characters(2x2mm)/s |
| Marking depth | 0.01 to 1mm (Vary to the material) |
| Standard marking area | 140x80mm |
Usage method
First connect the air compressor, adjust the pressure to 0.2mpa-0.6mpa, connect the 19 core plug line, connect the power line, open the software and use it.
Product features
1 Press the back panel shown above, the computer system cable, the power connection;
2 one end of the control cable that is 19-core aviation plug with the back of the electric control box 19 core connector, the other end with the host 19 core connector;
3 Use Φ8 trachea to connect the pneumatic parts of the marking machine with the air source of the factory; 4 Start the computer; 5 Turn on the power of the control box;
6 according to the instructions of the software manual (or press the software interface prompts) enter the correct print content; 7 workpiece positioning, marking.
FAQ
Unable to open print program.
cause of issue
A. There is a marking icon in the computer interface but I can not open the marking program.
First understand the marking program used by the device.
marking program using USB Procedure:
Connect the wires between all devices. (Must be properly connected)
First, open the computer host, monitor power switch.
Open the controller's power switch.
Third, open the marking program.
If you still can not open the marking program, follow these steps:
One. Close the marking program. (Do not need to turn off the computer host, monitor power)
Second, turn off the controller power switch. (5 seconds before turning the power switch)
Three. Unplug the USB cable on the controller. (1 second later plug back)
Design feature

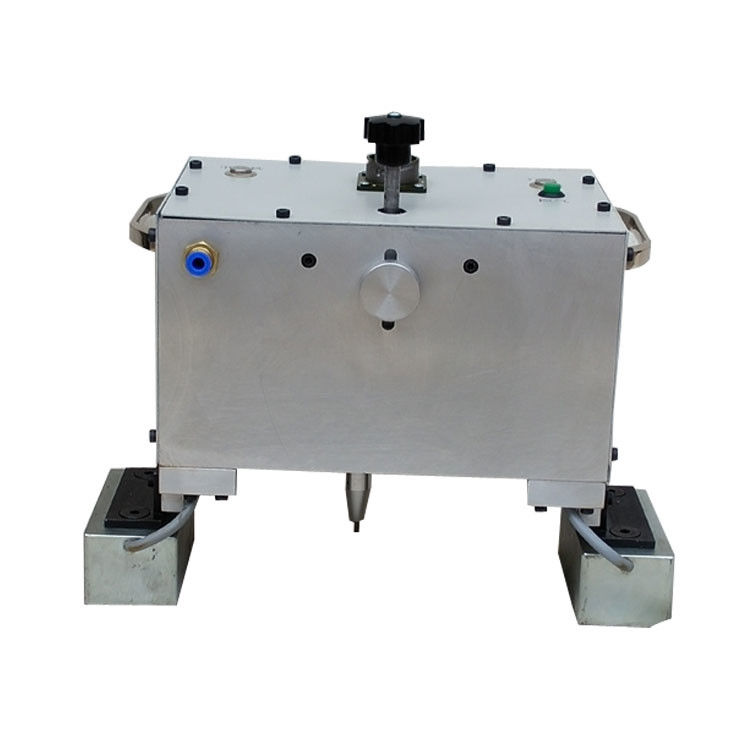

Portable marking machine, also known as hand-held marking machine, especially for steel and steel pipe is not easy to move the workpiece, marking machine with electromagnet adsorption, electrified to the workpiece above, very easy and convenient, such as doing a very successful car engine is playing Code machine and cylinder portable code machine.
After service
The relevant staff of the marketing department track and supervise the quality throughout the whole process of project receiving service, quality and completed customer satisfaction of the customer. Assist the department manager to coordinate the personnel or suppliers in the corresponding department of the company to properly handle and solve all the problems of the customer's products.
Packing and shipping
Packaging Details
Plywood case
Delivery Time
3 days(depends on your quantity request)
| Delviery time | 7-15 working days |
| Type of shipping | Express,air or sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 45*54*90cm |
| Gross weight | 22KG |
