Desktop Fiber Gold Metal Laser Marking Machine 0.5Mm Depth With Low Noise

Desktop Fiber Gold Metal Laser Marking Machine 0.5Mm Depth With Low Noise

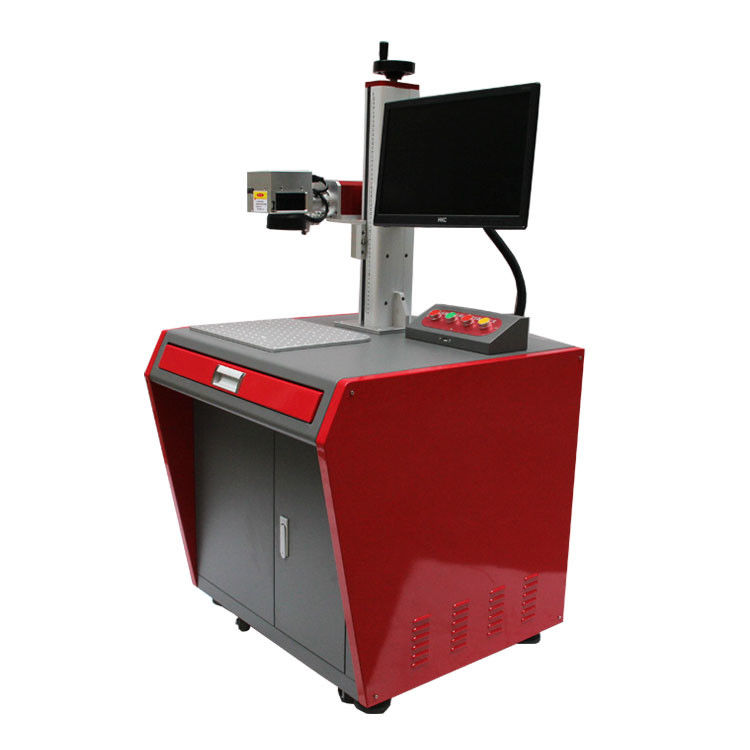

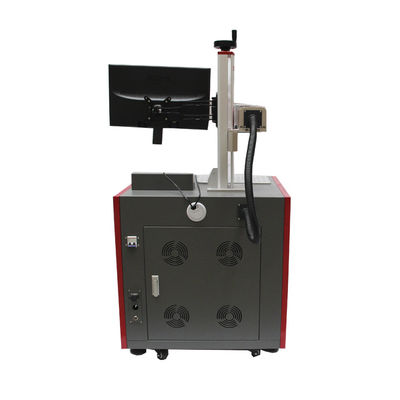

CHUKE Laser Marking 0.5Mm Depth Desktop Fiber Laser Marking Machine

Fiber Laser Marking MachineWorking principle

The laser scanner is also called a laser vibro mirror, consisting of a X-Y optical scanning head, an electronic drive amplifier and an optical reflection lens. The signal provided by the computer controller drives the optical scanning head by driving the amplifying circuit to control the deflection of the laser beam in the X-Y plane.

fiber laser marking machine parameter

Application

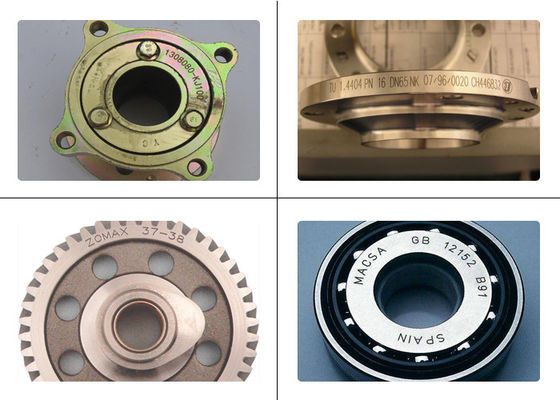

Fiber Laser Marking Machine sample

It is mainly used for laser marking, which can mark more dot matrix information, Chinese character characters. Vector marking and dot matrix marking can be used

Usage method

off the laser marking machine steps are as follows:
1, press the red mushroom button (emergency stop switch), cut off the laser head power;
2, confirm the IPC did not run any software, the normal exit, shutdown;
3, turn the key switch 90o counterclockwise to the "off" position, turn off the marking machine total power supply, the power indicator light goes out;
4, unplug the key, someone kept for future use;
5, cover the lens cover.

Product features

Completely follow the design method of the current table of the design idea, the lens instead of hands, and the DC signal probe signal controlled by -5V - 5V or -10V+10V replaced, scheduled to complete action. The same rotating mirror scanning system, this control system typically uses a pair of folding mirror, is different, the lens driving stepping motor servo motor was replaced in the control system, using the position sensor and the negative feedback loop design to ensure the accuracy of the system, scanning the speed of the system and the repetitive positioning accuracy to reach a new level

FAQ

As the company's users, we thank you for your trust, you are the products of our company have any suggestions and requirements should inform us in time, and shall be regularly maintained by the company of all kinds of product instructions for use and maintenance manual, equipment failure should inform our company to the maintenance personnel, the timely discovery in a timely manner processing, and make the equipment running station daily record, we believe that the two sides will maintain communication and coordination, good equipment.

Design feature

The galvanometer scanning head is mainly composed of XY scanning mirror, field mirror, vibrating mirror and computer controlled marking software. The corresponding optical components are selected according to the different laser wavelengths. The relevant selection includes laser beam enlargement mirror, laser and so on. The galvanometer scanning system, can use vector graphics and text, this method adopts the way of computer graphics software in graphics processing, and galvanometer marking can also use matrix marking method, used in this way for online marking is applicable, according to the different speed of the production line can be used in a a scanning mirror or two scanning mirror,

Packing and shipping

Packaging Details

1.Standard export wooden case packing
Delivery Time
1~5 working days

Aftersale service

the equipment, timely answer the questions raised by users and help users solve problems. The company's maintenance centers and maintenance outlets are responsible for the opening, maintenance and technical consulting services. The maintenance center is held by full-time engineer at any time to provide free technical consultation service for the customer.

Chuke Factory

Chongqing first intelligent machinery equipment Co., Ltd. was founded in 2006, before our staff has many years of experience in machining, so our company is established in the initial marking needle production business, with the needs of customers, our company gradually realize the business expansion to the technical force so far the company has domestic counterparts in the forefront custom business, reached a new height, either pneumatic marking machine or laser marking machine has been recognized by customers, the marking needle is occupied most of the domestic market market. Our products have been certified by world - known quality systems, including ISO, CE, PDA, TUV and so on.
