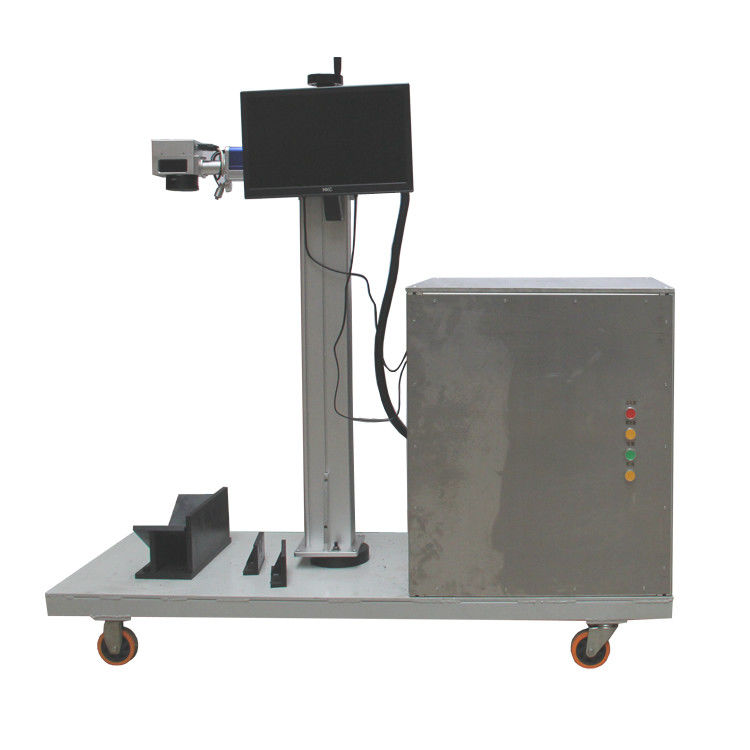

Jzc Control Card Fiber Laser Metal Marking Machine 20 Watt With Mopa Laser

Fiber laser marking machine burned off the surface of the metal material by the laser, exposing the internal fresh material, the formation of color contrast. Laser power determines the speed and depth of marking.

Laser Marking Machine 20W With Mopa Laser Application

Fiber laser marking machine is mainly used in metal marking, more and more products in order to enhance the advantages of their products, the pursuit of aesthetic appearance, the use of laser marking machine marking trademarks, serial numbers, so that their products can be Traceability, safeguard their own rights and interests, more choice of mechanical products laser marking as a priority marking program, the brand awareness can safeguard their own interests, so that the market is broader, marking is the necessary choice.

Laser Marking Machine 20W With Mopa Laser  parameter

Usage method

Matters needing attention About fiber laser marking machine to prevent the two, to prevent fiber breakage, the laser source and the laser head of the laser system connected by the optical fiber, users should ensure that the fiber bending diameter is greater than 300mm during use or in transit. Serious bending will lead to fiber breakage and laser system does not work properly. Preventing dust from polluting The optical fiber inlet of the power supply and laser head must be fitted with a protective cover provided with the system to prevent contamination of the internal optical components by external dust when not connected to the optical fiber..

Product features

Laser fiber laser marking machine laser beam quality is good, near the diffraction limit.EMEM based transverse mode output, M2 close to 1, the beam divergence angle of 0.24mrad;
2. Fiber laser pulse repetition frequency high, the output power is extremely stable, single pulse energy change of less than 1%, or even high-speed laser marking can be completed, but also accurately control the depth of the spot shape.
3. Fiber lasers can have high power, plug power up to 20%, electro-optical switching power up to 70%;
4. Fiber laser marking machine environment habit ability, can be in a sensational, high humidity environment of normal operation.
5. Fiber laser marking machine laser without water cooling equipment, small size, high power, high reliability, long-term maintenance-free, saving operating costs. "

FAQ

laser marking machine manufacturers, in addition to daily use and maintenance, but also to understand some common knowledge, and now introduce the laser a few common problems:
Symptoms: all the light is not normal, in the high-voltage side, string into the ammeter, showing the ammeter shows abnormalities, or have a long time current, or sometimes no, and sometimes not controlled.
Failure reasons: The main reason is the wrong choice of laser type, motherboard, patch panel, power supply or control line connection and cooling water circulation system failure.

Design feature

can be a variety of metal, non-metallic materials for processing. Especially for high hardness, high melting point, brittle material marking even more advantages. 2, belong to non-contact processing, does not damage the product, no tool wear, marking quality is good. 3, thin laser beam, processing material consumption is small, processing heat-affected zone small. 4, high processing efficiency, the use of computer control, easy to automate.

After service

Adhere to the customer as the center, integrity management, we adhere to the quality as the fundamental, by service to win, establish an industry model!

Packing and shipping

The company's products in circulation when the packaging, storage, handling and transport process of timely and effective monitoring and management, product packaging to meet the requirements. Handling, transportation process products are effectively protected, the entire process under control.
