Product Details:
Payment & Shipping Terms:
|
| Colour: | Yellow | Application: | Engine |
|---|---|---|---|
| Drive Type: | Electric | Controller: | Touch Screen |
| Software: | ThorX6 | Product Name: | Dot Metal Stamp |
| Marking Area: | 40x80mm | Marking Materials: | Above HRC60 Need Special Stylus |
| Repeat Accuracy: | 0.02-0.04mm | Power: | 300w |
| High Light: | electric engraving machine,raycus laser source |
||

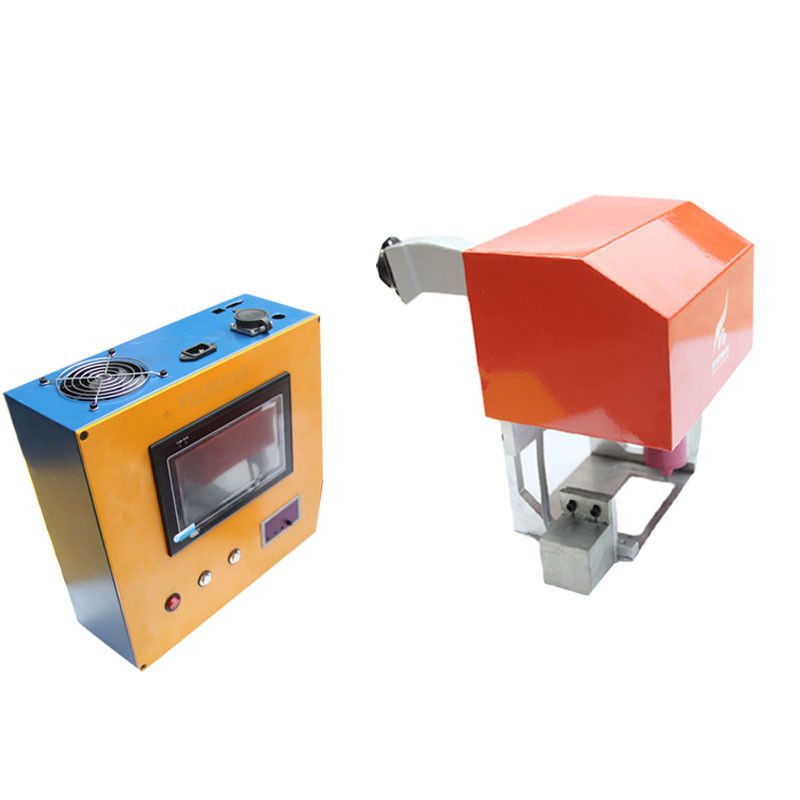

Yellow Steel Electric Marking Machine Check Dot Number Pin Printing Dot Metal Stamp
Working Principle
Car frame nameplate marking machine is a specialized type of marking machine, mainly for car, truck and minicar, etc., carry on the marking of the frame or nameplate, the equipment adopts the industrial control system, the technical stability can be good, the marking head uses the high strength alloy material, the wearability is good, and the kind of frame can be finished clearly and accurately. The marking requirements for numbers and codes conform to the relevant standards of vehicle management parts.
.
Application Range
The characteristics of the equipment of the marking machine for the nameplate of the car frame:
1. The control system of the marking machine has strong anti-interference ability, is not affected by the environment, and is stable in marking.
2, small size, easy to use in narrow space.
3, the configuration of electromagnet module can be firmly adsorbed on the body with strong stability.
4. Marking needles are of high quality, strong impact and long usage.
5, professional marking software, in line with industry related standards, so that the mark is more standard.
Instructions
Mark, mark the information for testing. To understand the marking is in line with the requirements, to review, modify.
Product Features
Low noise, simple operation Software and automatic control fixture seamless connection, can be set to delay clamping, delay printing, etc.
| Marking area: | 40X80mm(or customized) |
| Marking speed: | 3-5 characters / second (2X2) |
| Software application system: | LCD touch screen |
| Marking depth: | 0.01-1.2mm Adjustable (depending on the material) |
| Accuracy Assurance: | ≤ 0.01 |
| Height adjustment Range: | 10mm |
| Automatic storage: | can automatically store files and print content, 3L / S |
| analog display: | you can directly observe the marking on the screen |
| Print pin impact frequency: | 300 beats / second |
| Marking content: | Chinese and English characters, numbers, graphics (By marking software editing) Graphic |
| Editing: | Serial number (serial number) Automatic printing, storage, weight automatic detection, can identify the bar code |
| Marking material: | all kinds of metal (HRC85 hardness below), all kinds of hard materials Plastic bakelite, etc.) |
| Power: | 300W |
| Working voltage: | 110VAC / 220VAC |
| Delviery time: | 3-15 working days |
| Type of shipping: | Express,air or sea |
| Terms of payment: | T/T,credit card, |
| package size: | 45X45X55cm |
| Gross weight: | 23KG |
| Warranty time: | one year |
Service Content
More peace of mind:
Free shipping, free installation and commissioning, free operation and maintenance personnel training.
FAQ
What are the marking contents?
Alphanumeric info, date matrix or dot matrix 2D codes, shift codes, barcode, serial number, date, VIN code, time, letter, figure, logo, graphics and etc.
Design Features
With continuous revocation and recovery capabilities, do not have to worry about misuse;
USB interface transmission, plug and play, subvert the old product must use the history of parallel port transmission;
Interface lock function, marking process without having to worry about other people change.
marking after becoming a permanent mark on long, generally marked workpiece weight of less than about 1600(10 5mm high character calculation)
Packaging:
Packaging material: Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
Free training for machines installation and operation of the staffs.
