Product Details:
Payment & Shipping Terms:
|
| Colour: | Red | Application: | Engine |
|---|---|---|---|
| Drive Type: | Electric | Controller: | Touch Screen |
| Software: | ThorX6 | Product Name: | Markers Marking Equipment |
| Marking Area: | 80x40mm | Marking Materials: | Above HRC60 Need Special Stylus |
| Repeat Accuracy: | 0.02-0.04mm | Power: | 300w |
| High Light: | electric engraving machine,raycus laser source |
||

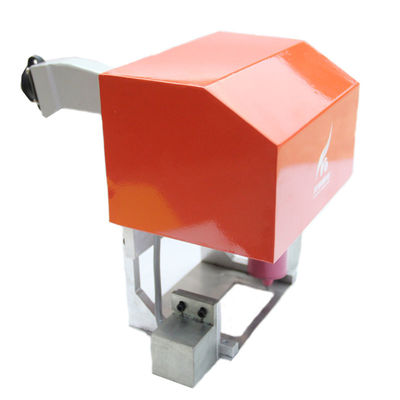

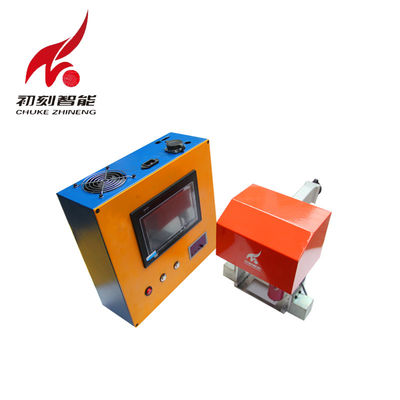

Red Dot Matrix Printer Equipment , Metal Marking Machine Electric Drive Type
Dot Matrix Printer Price Metal Marking Machine Print Equipment
Working Principle
Portable electric marking machine is a new type of portable marking machine developed by our company, which saves the carrying of air pump and noise trouble, and breaks away from the original method of using air source to mark. This machine uses electromagnetic printing, as long as there is a power source can work, compared with pneumatic marking noise is lower, save the cost of gas source
Application Range
1, new design software, humanized man-machine interface, powerful function, simple operation, easy to learn and use, 2, powerful contour to needle, four angles to needle, setting stop needle position (XHY coordinate) function, greatly improve working efficiency and reduce labor intensity; 3, reset times setting function, each marking does not need to go back to zero detection, and can be positive, reverse order marking greatly save time to improve efficiency
Instructions
1.The software and the automatic control fixture seamless connection, may set the delay clamping, the delay printing and so on; 2.the font library (special character and so on) is rich, and may call the windows font library; 3. the graph may call the PLT graphics; 4. the typesetting function is strong, such as alignment, the center, Average distribution and so on; 8, with continuous undo and recovery function, no need to worry about misoperation; 5.U USB port transmission, plug and play, overturning the history that old products must use parallel port transmission; 6.interface locking function, There is no need to worry about other people's changes during the marking process.
Product Features
Low noise, simple operation Software and automatic control fixture seamless connection, can be set to delay clamping, delay printing, etc.
| Marking area: | 40X80mm(or customized) |
| Marking speed: | 3-5 characters / second (2X2) |
| Software application system: | LCD touch screen |
| Marking depth: | 0.01-1.2mm Adjustable (depending on the material) |
| Accuracy Assurance: | ≤ 0.01 |
| Height adjustment Range: | 10mm |
| Automatic storage: | can automatically store files and print content, 3L / S |
| analog display: | you can directly observe the marking on the screen |
| Print pin impact frequency: | 300 beats / second |
| Marking content: | Chinese and English characters, numbers, graphics (By marking software editing) Graphic |
| Editing: | Serial number (serial number) Automatic printing, storage, weight automatic detection, can identify the bar code |
| Marking material: | all kinds of metal (HRC85 hardness below), all kinds of hard materials Plastic bakelite, etc.) |
| Power: | 300W |
| Working voltage: | 110VAC / 220VAC |
| Delviery time: | 3-15 working days |
| Type of shipping: | Express,air or sea |
| Terms of payment: | T/T,credit card, |
| package size: | 45X45X55cm |
| Gross weight: | 22KG |
| Warranty time: | one year |
Service Content
More peace of mind:
Free shipping, free installation and commissioning, free operation and maintenance personnel training.
FAQ
What are the marking contents?
Alphanumeric info, date matrix or dot matrix 2D codes, shift codes, barcode, serial number, date, VIN code, time, letter, figure, logo, graphics and etc.
Design Features
With continuous revocation and recovery capabilities, do not have to worry about misuse;
USB interface transmission, plug and play, subvert the old product must use the history of parallel port transmission;
Interface lock function, marking process without having to worry about other people change.
marking after becoming a permanent mark on long, generally marked workpiece weight of less than about 1600(10 5mm high character calculation)
Packaging:
Packaging material: Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
Free training for machines installation and operation of the staffs.
Chuke look for the dealer!
The advantages of the Chuke marking machine dealer?
1 Certificate of different star agency rights
2. check the function and quality of the equipment item by item before shipment
3. area full power agency
4. strong customization capabilities meet the needs of different customers
5. technical team the whole course tracking service solve the problem
