Product Details:
Payment & Shipping Terms:
|
| Name: | Fiber Laser Marking Machine | Type: | Portbale |
|---|---|---|---|
| Applicable Material: | Qr Code | Marking Depth: | 0.01~1mm |
| Marking Speed: | 7000mm/s | ||
| High Light: | laser marking device,metal marking equipment |
||

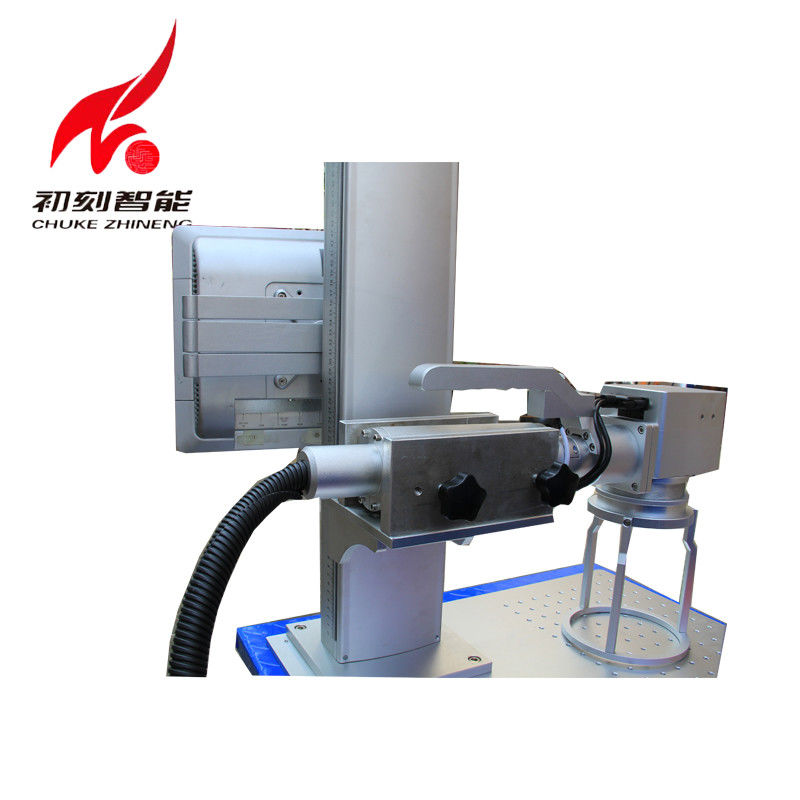

Low Cost 20w Raycus Two Years Guarantee Laser Marking Machine For Metal
Product quick detial:
1, for large-scale, ultra heavy equipment marking;
2, marking the trademark and factory number of auto parts.
3. small size, no space, easy to store.
4. the laser marking machine pushes the cart to move freely on the uneven ground and is convenient for application.
5. The portable laser marking machine belongs to fiber laser marking machine. Fiber laser marking machine adopts Raycus pulse fiber laser. Its output laser mode has good service life and is designed to be installed in the marking machine housing.
6.The portable machine adopts Jinhai high speed mirror, marking the fastest speed up to 7000mm/s
Product applicaiton:
1. permanent marking of metals and plastics;
2, 5m super radius marking without mobile devices.
3.150mm super size mark, custom marking range can be customized.
9360 degree mark in any direction, no angle restriction;
4.used for 3C products beautifully marked.
Product advantage:
1. The laser marking machine adopts blue and white color, the trolley also uses blue, and the machine color matches very well. Exquisite shell, high-end products.
2. Laser marking machine printing range 100x100m, marking head only 3.5KG. Portable, portable, mobile, user-friendly operation.
3. Optical fiber laser marking machine, optical fiber line 2 mm long, long enough to move the marking machine head to the marking object marking.
4, door-to-door marking can be placed directly in the trunk of the car.
5, for multiple marking of the same product, fast and efficient marking.
6, multi-purpose function, at the same time can be used as desktop marking equipment, accessories marking.
Parameter
| type | Metal marking machine |
| Size | 75*55*83cm |
| Gross Weight | 75kg |
| Laser power | 20w |
| Laser wavelength | 1064nm |
| Power supply | 220V±10%/50Hz/4A |
| Repeating precision | ±0.002 |
| Repeating frequency | ±0.002 |
| Marking range | 110x110mm(customize) |
| Marking depth | 0.01~1mm |
| Marking speed | 7000mm/s |
| Minimum character | 0.15mm |
| Minimum line width | 0.01mm |
| Marking content |
Graphics, text, bar codes, two-dimensional code, |
· All of our machine will be full-checked and tested by our quality control department before shipment.
· Lifetime technology maintenance in free and spare parts supply.
· Free training. our engineer can speak English.
· 24 hours technical supported.
· We will offer ‘instruction books’, “Operation Manual” and “Training Video” to you. Which is easily understand.
· We also will offer online face by face training, from our special software, our engineer can control machine computer and machine to show you step by step.
