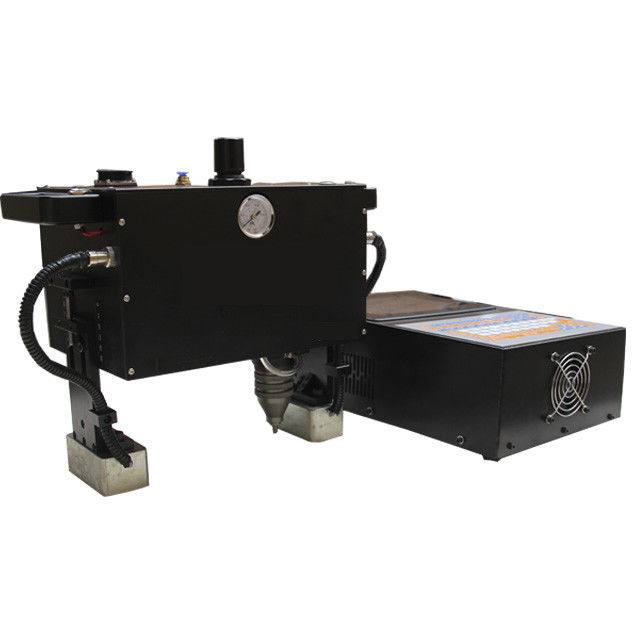

Black Chassis Dot Pin Marking Machine / Metal Marking Machine Big Punching Power

China Black Chassis Dot Pin Marking Machine / Metal Marking Machine Big Punching Power supplier

Large Image :  Black Chassis Dot Pin Marking Machine / Metal Marking Machine Big Punching Power

Product Details:

Place of Origin: China(mainland)
Brand Name: ZIXU
Certification: FDA,CE,ISO
Model Number: PMK-G03

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1000-3500 per set
Packaging Details: Packing in carton,45*45*55cm
Delivery Time: after payment 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Marking Pin: 6mm Name: Metal Marking Machine
Service: Customized Feature: Good Mark Quality
Marking Product: Car Frame Type: Pneumatic Printer
High Light:

dot peen engraver

,

handheld dot peen marking system

Big Punching Powper Black Colour Chassis Number Machine Metal Marking Machine



Product quick detial:



1. 24V high power exhaust fan forced ventilation, cooling controller, so that the machine is always at a suitable temperature.



2. Powerful operating system can add design software, link with the Internet, get more information, one machine multi-purpose, integrated operation.



3, Full touch screen operation, responsive, convenient and fast.



4, Super size display, windows system compatible with a variety of programs.

Black Chassis Dot Pin Marking Machine / Metal Marking Machine Big Punching Power



Model Dot peen marking machine
Working Area 140*80(L*W) 80*40(L*W) 120*50(L*W)
Marking Speed Range 10-100words/min(Adjustable)
Marking Depth Range 0.05-1.0mm(According to the materials)
Unit power ≤ 200W
Power 220V/50HZ/10A

Compressed Air Pressure

Required

0.4-0.8Mpa



System Functions

Character inputting, editing ,marking. VIN code automatically

calculating, set, marking. Serial number setting, automatically

increasing,marking. Tag data query, reporting, printing.

Characters, Graphics, Chinese characters editing.

Marked Font Size Arbitrary Adjustable
The Content of Mark Character

0-9 figures, A-Z large, lower case letters, graphics,

characters ( Users can be random homemade)

Working Voltage 220V 50Hz ± 10 %
Machine Consume Power ≤ 200W
Working Environment Temperature: 0-45℃ Humidity: ≤ 80 %





Principle



The portable pneumatic marking machine is driven by the motor, controlled by the board card, and the electromagnetic valve controls the guide rail, and the printing needle is marked by the high frequency impact motion under the action of compressed air.



chassis VIN marking machine



Application:



All kinds of metal,ainly used in machinery, automobiles, motorcycles, aerospace, aviation, electronics, instruments, meters and other fields, hard plastic parts of the logo and product nameplate printing (such as: instruments, meters and mechanical equipment Nameplate).Print the content into the computer, the computer processed into data and lost control signal to the controller, the controller controls the print pin in X-Y two-dimensional plane by a certain trajectory, while the print pin under the action of compressed air for high-frequency micro-impact movement,



FAQ



1 .Why is the price of your home marking machine higher than others?



We are more professional, 14 years of marking machine research and development and production team of experts, we serve better, we recruit agents from all over the country and foreign agents, agents throughout the country can come to our doors, our marking machine configuration is high, long life, good use effect



2 .we can not operate what to do?



We have professional marking machine software operating instructions and operating video, we can also become a professional technical operating engineer, can be remote guidance



3. How to repair the marking machine?



Our marking machine is guaranteed for one year. After one year, the spare parts will be charged according to the cost. The small spare parts will be returned to the factory free of charge. Only the freight will be charged.
