Product Details:
Payment & Shipping Terms:
|
| Marking Pin: | 6mm | Name: | Pneumatic Marking Machine |
|---|---|---|---|
| Service: | Two Years Wattary | Feature: | High Quality |
| Marking Product: | Metal | Type: | Pneumatic |
| High Light: | dot peen engraver,handheld dot peen marking system |
||

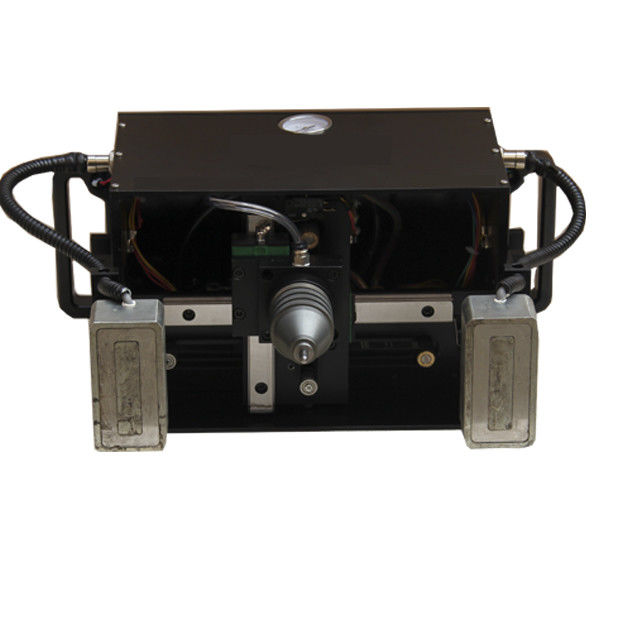

Thorx6 6mm Marking Styuls Marking Number Portable Marking Machine For Steel
1.Our marking machine complies with CE,ISO9001, FDA standards.
2. We supply 1 years warranty service
3. We have full sets laser parts for laser marking machine in stock.
Which can ensure timely delivery and replacement for laser parts on time.
4. We train customer for machine operation at our factory for free.
5. Machine operation manual will be sent together with machine delivery.
6. Before shipment, our engineer will do machine checking within 48 continuous hours to ensure high performance and high stability.
7. We have a professional after sales service team with 5 engineers.
Product quick detial:
1. Take No. 45 steel for example, quenching hardness HRC45-50, carburizing, surface hardness HRC > = 60; nitriding, surface hardness HB > = 600. This also depends on the thickness of the carburizing layer, generally 0.3-0.5mm, nitriding layer thickness of 0.15-0.2mm, the general pneumatic marking machine or electric marking machine can not meet this requirement.
2. this machine can be used to mark carbon steel quenched on HRC45-50.
| Model | Pneumatic Marking Machine | ||
| Working Area | 140*80(L*W) | 80*40(L*W) | 120*50(L*W) |
| Marking Speed Range | 10-100words/min(Adjustable) | ||
| Marking Depth Range | 0.05-1.0mm(According to the materials) | ||
| Unit power | ≤ 200W | ||
| Power | 220V/50HZ/10A | ||
|
Compressed Air Pressure Required |
0.4-0.8Mpa
|
||

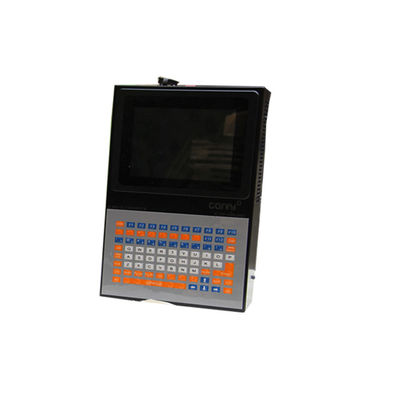

| System Functions |
Character inputting, editing ,marking. VIN code automatically calculating, set, marking. Serial number setting, automatically increasing,marking. Tag data query, reporting, printing. Characters, Graphics, Chinese characters editing. |
||
| Marked Font Size | Arbitrary Adjustable | ||
| The Content of Mark Character |
0-9 figures, A-Z large, lower case letters, graphics, characters ( Users can be random homemade) |
||
| Working Voltage | 220V 50Hz ± 10 % | ||
| Machine Consume Power | ≤ 200W | ||
| Working Environment | Temperature: 0-45℃ Humidity: ≤ 80 % | ||
Product description:
1. The biggest feature of this machine is the use of Zixu independently developed 6mm marking needle, needle core is very thick, printing area increased. The pressure is opened to 0.8MPa, and the depth of printing can reach the depth of the ruling machine.
2.air cooling system has good heat dissipation, long service life and more stable system.
Product advantage
1. support software design and development, customize, connect to PLC, serial communication.
2. fool operation, easy to use. Easy to learn.
3. special depth marking needles. Depth marking, the deepest can reach 2mm, industry leader.
Company information
Chuke is a world famous manufacturer of industrial laser equipment. Since 2005, chukeLaser focused on the development and production of various types of laser machinery and CNC equipments.
As ISO9001: 2000 certified laser machinery manufacturer, CHUKE is committed to providing customers with high-quality, reliable laser machines.
As a result of our quality control measures, our laser cutting machine, laser marking machine, laser engraving machine all have got CE certification. Perfect Laser also has got TUV and FDA certificate. High precision, low energy consumption, automatic processing, little environmental pollution and make our products more and more industries played a important role.
