| Name: | Online Flying Laser Marking Machine | Color: | White Colour |
|---|---|---|---|
| Advantage: | On-line | Brand: | Chuke |
| Place Of Use: | Conveyor Belt | Marking Material: | Metal |
| High Light: | laser part marking machine,deep laser engraving machine |
||

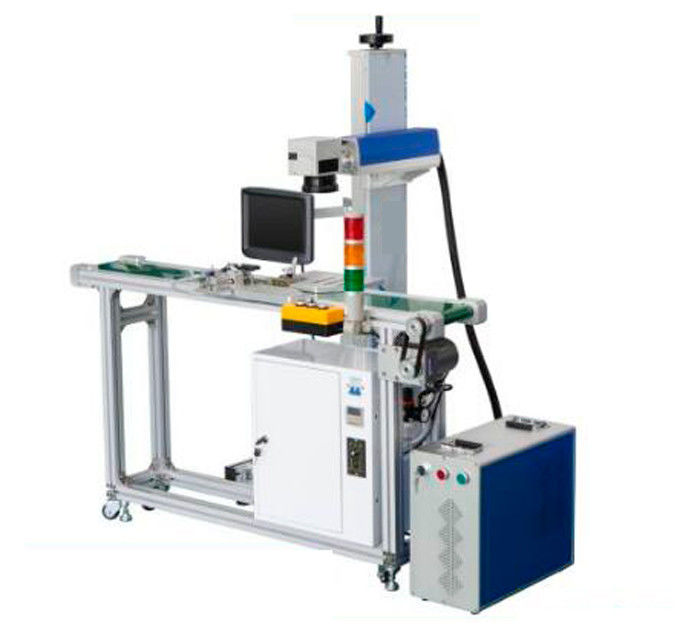

Marking Code Write Colour 30w Max Online Flying Laser Marking Machine For Pcb
Product quick detail:
The operation process is humanized and the equipment runs stably.The special on-line flight marking control software for accessories is used.The characters, numbers, symbols, graphics, automatic code and serial number of permanent information are formed.It plays a very good role in anti-counterfeiting and anti-collision of marking products
Product advantage
It can be used in paper, plastic, film, tin foil and Pcb. We can flexibly design better solutions according to the existing production lines of factories and enterprises to achieve more environmentally friendly, maintenance-free, fast marking requirements.Germany imported high speed galvanometer, up to 9000mm/s. Line marking special, fast marking, clear handwriting, no ambiguity, no deformation.
Product description
High-speed running conveyor belt, suitable for large-scale marking, can be put on the conveyor belt directly printed, convenient and fast. Conveyor belt can be customized according to the user's needs, the maximum load can do 250kg.
| type | Fiber laser marking machine |
| Size | 75*65*145cm |
| Gross Weight | 160kg |
| Laser power | 10/20/30/50 w |
| Laser wavelength | 1064nm |
| Power supply | 220V±10%/50Hz/4A |
| Repeating precision | ±0.002 |
| Repeating frequency | ±0.002 |
| Marking range | 110x110mm(customize) |
| Marking depth | 0.01~1mm |
| Marking speed | 7000mm/s |
| Minimum character | 0.15mm |
| Minimum line width | 0.01mm |
| Marking content |
Graphics, text, bar codes, two-dimensional code, date, batch number, serial number |
What are the characteristics of the fiber laser marking machine?
1.It can process many kinds of metal and non-metal materials. In particular, marking high hardness, high melting point and brittle material has an advantage.
2. It is non-contact processing, no damage to products, no tool wear, and good marking quality.
3.the laser beam is thin and the material consumption is small and the heat affected zone is small.
4.high processing efficiency, the use of computer control, easy to achieve automation.
