Product Details:
Payment & Shipping Terms:
|
| Name: | Mini Laser Marking Machine | Color: | Blue Colour |
|---|---|---|---|
| Advantage: | Laser Marking Machine For Metal | Brand: | Chuke |
| Place Of Use: | Small Size | Laser Power: | 20 Watt |
| High Light: | small laser engraving machine,small laser marking machine |
||
free software mini laser marking machine for metal
Product quick detial
1. small size, light and easy to carry.
2., suitable for all kinds of small metal products, such as nameplates, aluminum cards, dog cards, and iron plates.
3. long service life, no material consumption, zero maintenance
4. simple and convenient operation, directly connected to the computer.
Product advantage
1.Rui branch specializes in small laser, stable performance and good printing effect.
2.Support various formats of pictures, JPG, PNG, PDF, etc.
3.Professional after-sale team, one to one training, teach you to learn machine operation easily.
4.2 years warranty, no worries after sale. Use more reassurance.
Product description
1.The use of high hardness metal shell, both high temperature resistance, to adapt to the harsh industrial environment, high-end atmosphere beautiful.
2.20W sharp laser, printing range up to 150*150mm
3.The focus system is to focus parallel laser beams on one point. The f-theta lens is mainly used. Different f-theta lenses have different focal lengths, marking effects and scopes. The imported high-performance focusing system is used in the fiber laser marking machine. The standard lens focal length f=160mm and the effective scanning range 110 mm are used. The user can match the lens of the model according to needs.

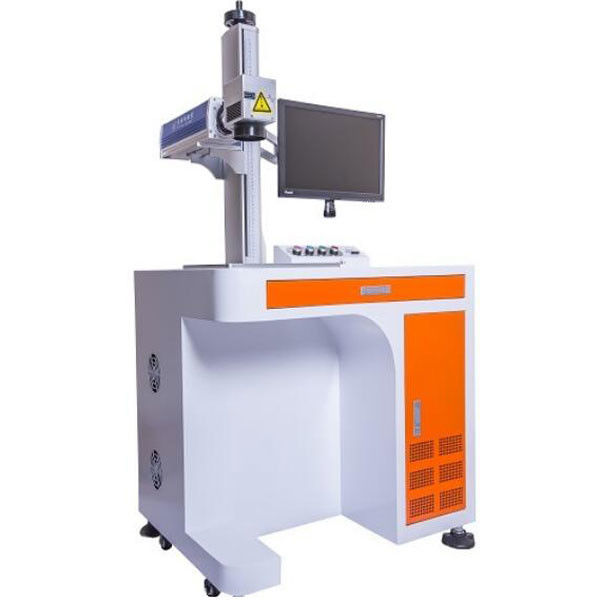

| type | Fiber laser marking machine |
| Size | 75*65*145cm |
| Gross Weight | 160kg |
| Laser power | 10/20/30/50 w |
| Laser wavelength | 1064nm |
| Power supply | 220V±10%/50Hz/4A |
| Repeating precision | ±0.002 |
| Repeating frequency | ±0.002 |
| Marking range | 110x110mm(customize) |
| Marking depth | 0.01~1mm |
| Marking speed | 7000mm/s |
| Minimum character | 0.15mm |
| Minimum line width | 0.01mm |
| Marking content |
Graphics, text, bar codes, two-dimensional code, date, batch number, serial number |
About Chuke ?
Chongqing Chuke Intelligent Machinery &Equipment Co.,Ltdwas founded in 2006. It is a manufacturer specializing in providing marking scheme, marking equipment and its accessories. It is currently the largest mainstream supplier of marking industry in China. The company takes "let the world do not have a bid problem" as the core goal, and hopes that through the chogqing zixu machine works, all customers will have the most suitable marking scheme. Lay a solid foundation for the brand of customers!
Contact Person: zoya zhou
