Ezcad Software Blue Mini Laser Marking Machine Lightweight Speed 7000mm / S

China Ezcad Software Blue Mini Laser Marking Machine Lightweight Speed 7000mm / S supplier

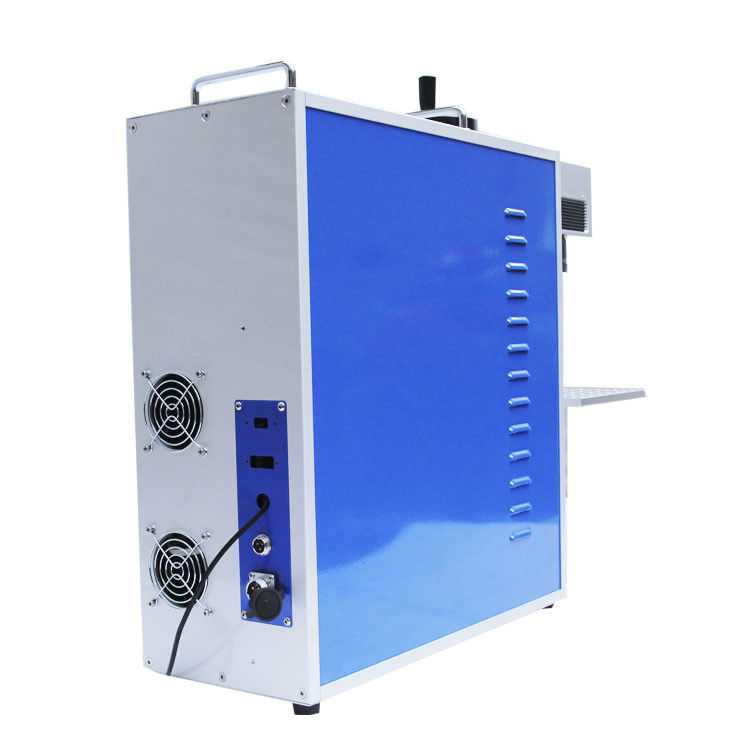

Large Image :  Ezcad Software Blue Mini Laser Marking Machine Lightweight Speed 7000mm / S

Product Details:

Place of Origin: China(mainland)
Brand Name: Chuke
Certification: ISO,CE,FDA
Model Number: FLMM-B01

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD3300-6500 per sets
Packaging Details: Packing in wooden case,75*55*83cm
Delivery Time: after payment 7-15 working days
Payment Terms: L/C,D/A,D/P,T/T,,MoneyGram,Paypal
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Name: Mini Fiber Laser Marking Machine Color: Blue
Marking Speed: 7000mm/s Service: OEM/ODM
Applied Materials: A Variety Of Steel Materials Laser Powe: 20w
High Light:

small laser engraving machine

,

small laser marking machine

Ezcad Software Blue Colour Light Weight Portable Mini Fiber Laser Marking Machine



Product  features



1. International quality, factory price.

2. Beautiful shape, high-end atmosphere. Every part of our machine is carefully designed by professional designers.

3.The fuselage is strong and reliable, and can be weighed 100kg.



Parameter



Type Fiber laser marking machine
Size 75*55*83cm
Gross Weight 55kg
Laser power 30w
Laser wavelength 1064nm
Power supply 220V±10%/50Hz/4A
Repeating precision ±0.002
Repeating frequency ±0.002
Marking range 110x110mm(customize)
Marking depth 0.01~1mm
Marking speed 7000mm/s
Minimum character 0.15mm
Minimum line width 0.01mm
Marking content

Graphics, text, bar codes, two-dimensional code,

date, batch number, serial number



Product description



Intelligent laser lattice technology is used to code, and the parameters such as spacing of lattice density, laser power and laser residence time are adjusted by software to improve the flexibility of coding. It can be well adapted to the online packaging and coding requirements of various industries.



Product applicaiton



Excellent beam quality: See Long series fiber laser marking machine beam quality is much better than the traditional solid-state laser marking machine, output for the fundamental mode (TEMOO), focusing spot diameter less than 20 um. The divergence angle is the 1/4 of the diode pumped laser. It is especially suitable for precision and fine marking



Product advantage



Low cost: the highest electro-optic conversion efficiency of 30%, less than 500W power consumption, is a lamp pumped solid-state laser marking machine 1/10, greatly saving energy costs.



FAQ



Warranty

Two years warranty for whole machine.



Technical support

Lifelong technical support online or by email and 18 hours online service to help you use our machine well.



Oversea service

Offer oversea service for training,installing, operating if necessary (Buyer need offer food & accommodation, round tickets and engineer charges USD200/day)



Tranining service

Offer training at our factory for free (you could visit us and learn).



Packing and shipping



Packing in wooden case,75*55*83cm The machine gross is 55 KG, you can use express delivery. If more than 75KG, you can choose sea transportation.



Delviery time 7-15 working days
Type of shipping Express,air or sea
Terms of payment T/T,credit card,,paypal
package size 75x55x83cm
Gross weight 55KG
