Product Details:
Payment & Shipping Terms:
|
| Marking Pin: | 3mm | Name: | Vin Number Stamping Machine |
|---|---|---|---|
| Service: | One Years Wattary | Feature: | High Quality |
| Marking Product: | Metal | Type: | Pneumatic |
| High Light: | handheld dot peen marking system,dot peen engraver |
||

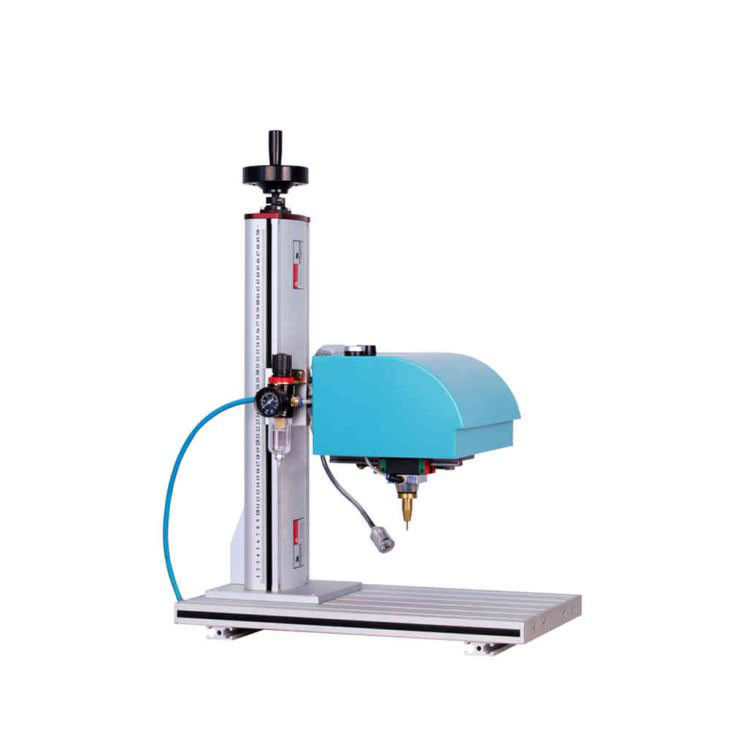

One Year Guarantee Pneumatic Metal Serial Number Vin Number Stamping Machine
Product quick detial:
Chuke touchscreen embedded control system can be fully customised to provide password protected, green button control for operators, with on-screen feedback.
Chassis number punching machine systems have been delivered with bespoke interfaces showing images of fixtures and simple, clear instructions.
| Model | Vin Number Stamping Machine | ||
| Working Area | 140*80(L*W) | 80*40(L*W) | 120*50(L*W) |
| Marking Speed Range | 10-100words/min(Adjustable) | ||
| Marking Depth Range | 0.05-1.0mm(According to the materials) | ||
| Unit power | ≤ 200W | ||
| Power | 220V/50HZ/10A | ||
|
Compressed Air Pressure Required |
0.4-0.8Mpa
|
||
| System Functions |
Character inputting, editing ,marking. VIN code automatically calculating, set, marking. Serial number setting, automatically increasing,marking. Tag data query, reporting, printing. Characters, Graphics, Chinese characters editing. |
||
| Marked Font Size | Arbitrary Adjustable | ||
| The Content of Mark Character |
0-9 figures, A-Z large, lower case letters, graphics, characters ( Users can be random homemade) |
||
| Working Voltage | 220V 50Hz ± 10 % | ||
| Machine Consume Power | ≤ 200W | ||
| Working Environment | Temperature: 0-45℃ Humidity: ≤ 80 % | ||
Product description:
1.24V high power exhaust fan forced ventilation, cooling controller, so that the machine is always at a suitable temperature.
2. Powerful operating system can add design software, link with the Internet, get more information, one machine multi-purpose, integrated operation.
3. full touch screen operation, responsive, convenient and fast.
4. super size display, windows system compatible with a variety of programs.
Product advantage
1. Full English software, introduction operation panel, let you learn all the functions in three minutes.
2.customized software programs can be customized, integrated marking system and pipelining.
3. one-time marking, 2mm depth marking effect, China's first deep marking manufacturers.
4. large scale marking can meet the requirement of large format trademark marking.
FAQ
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
