Automatic Dot Matrix Engraving Machine With 0 - 45℃ Working Temperature

China Automatic Dot Matrix Engraving Machine With 0 - 45℃ Working Temperature supplier

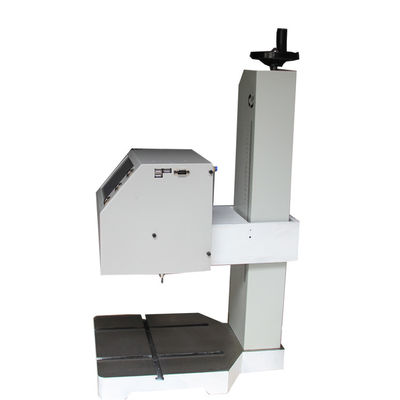

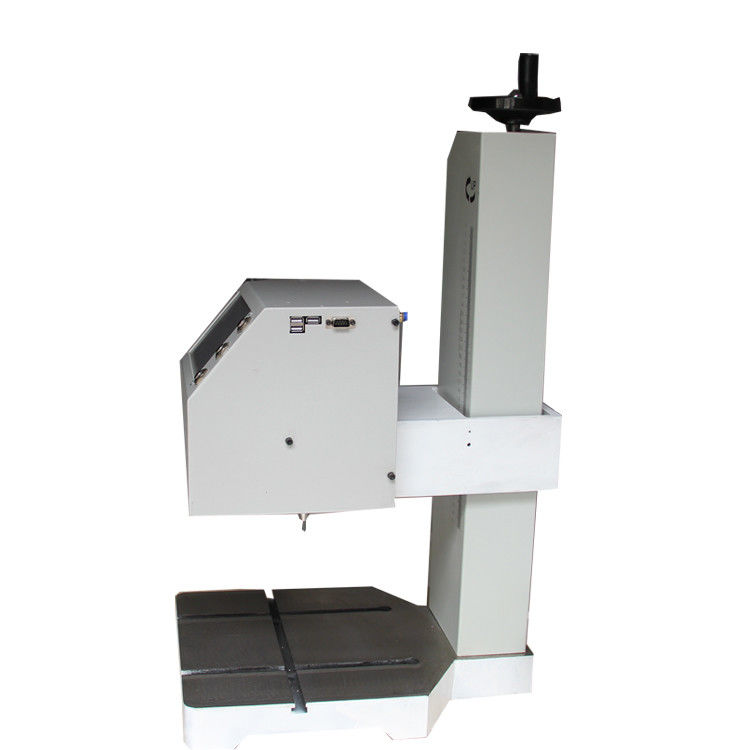

Large Image :  Automatic Dot Matrix Engraving Machine With 0 - 45℃ Working Temperature

Product Details:

Place of Origin: China(mainland)
Brand Name: Chuke
Certification: FDA,CE,ISO
Model Number: PMK-A01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1000-3500 per set
Packaging Details: Packing in carton,45*45*55cm
Delivery Time: after payment 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Marking Pin: 3mm Name: Pin Stamping Equipment
Service: One Years Wattary Feature: High Quality
Marking Product: Metal Type: Pneumatic
High Light:

handheld dot peen marking system

,

dot peen engraver

One Year Guarantee Pneumatic Metal Serial Number Vin Number Stamping Machine



Product quick detial



After the company's colleagues do not fear high temperature overtime efforts, and finally shipped, because the customer marking position is in the state of half plane and half arc, our technicians try to change the standard two-end parallel magnet into a zigzag installation, and for the sake of customers Customers improve production efficiency for their design tooling die, the use of overhead die, successfully avoided marking on the reinforcement of the workpiece, ensure that customers use convenient and fast and ensure that the marking size is consistent, has been recognized by customers, thank customers for their support! Thanks for the efforts of our colleagues.





Model Pin Stamping Equipment
Working Area 140*80(L*W) 80*40(L*W) 120*50(L*W)
Marking Speed Range 10-100words/min(Adjustable)
Marking Depth Range 0.05-1.0mm(According to the materials)
Unit power ≤ 200W
Power 220V/50HZ/10A

Compressed Air Pressure

Required

0.4-0.8Mpa



System Functions

Character inputting, editing ,marking. VIN code automatically

calculating, set, marking. Serial number setting, automatically

increasing,marking. Tag data query, reporting, printing.

Characters, Graphics, Chinese characters editing.

Marked Font Size Arbitrary Adjustable
The Content of Mark Character

0-9 figures, A-Z large, lower case letters, graphics,

characters ( Users can be random homemade)

Working Voltage 220V 50Hz ± 10 %
Machine Consume Power ≤ 200W
Working Environment Temperature: 0-45℃ Humidity: ≤ 80 %



Product description



Pneumatic marking machine: computer control printing needle in X, Y two-dimensional plane according to a certain trajectory movement at the same time, the printing needle in compressed air to do high-frequency impact motion, thus printing a certain depth of marking on the workpiece. Pneumatic marking machine marked characteristics: a larger depth, through computer direct marking output. Pneumatic marking machine - marking material: any metal or non-metal, typical applications: auto parts, nameplates, tags, etc.



Product advantage



Performance parameters: print area: 100X80mm, 140X80mm 200X150mm (or customized) print speed: 3-5 characters / sec (5X7) software application system: Windows 98 Windows XP print depth: 0.01-1.2mm adjustable (depending on the material) precision assurance: error < 0.01 height adjustment range: 1-330mm automatic storage: automatic storage of documents and print content work gas source: 0.5-0.7 Mpa, 3L/S analog display: can directly observe the marking effect of the printing needle impact frequency: 300 times / sec print content: Chinese and English characters, digits, graphics (edited by marking software) text editing: serial number (pipelining number) automatic printing, storage automatic detection, can identify the bar code printing material: various metals (HRC85) The following hardness, all kinds of hard materials (PVC film, plastic bakelite, etc.) power: 300W working voltage: 220VAC





How to use the machine?



By inputting the contents of Chinese and English characters and graphics into the computer, the computer marking software transfers the contents into digital control signals, and transmits them to the controller to drive the printing and print out the characters and graphics formed by continuous dot matrix on the workpiece; the needle moves in the X-Y two-dimensional plane according to the set trajectory, and the printing needle is compressed in the empty space at the same time. A concave mark made of dense dot matrix is printed on the surface of the workpiece under the action of gas. The advantage of pneumatic marking machine is to print online on higher hardness metal by dot matrix.
