Product Details:
Payment & Shipping Terms:
|
| Marking Pin: | 3mm | Name: | Pin Stamp Marking System |
|---|---|---|---|
| Service: | One Years Wattary | Feature: | High Quality |
| Marking Product: | Metal | Type: | Pneumatic |
| High Light: | handheld dot peen marking system,dot peen engraver |
||

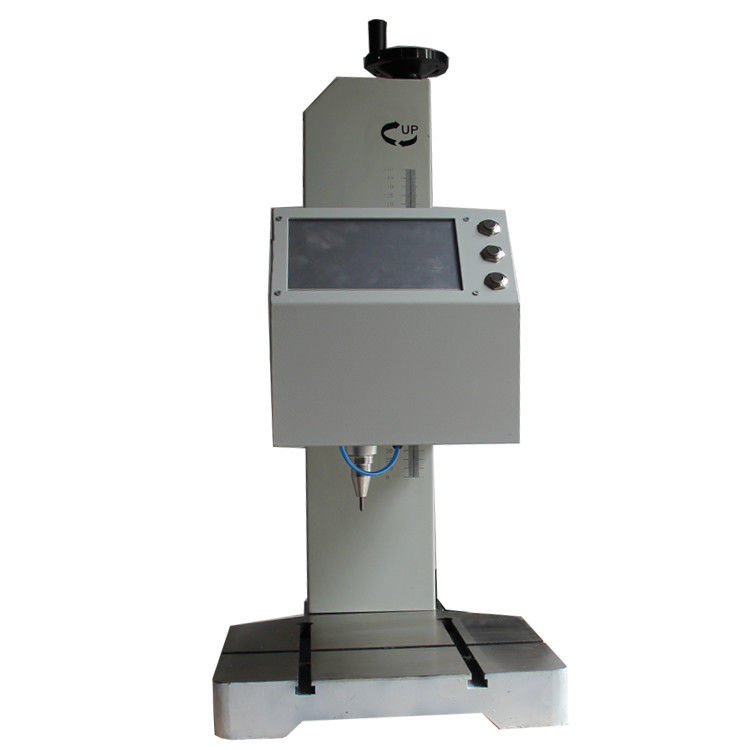

Russian Language Thorx6 Cnc Metal Dot Pin Number Pin Stamp Marking System
Product quick detial
1. Print the number, name, trademark and production date of the engine, piston, body, frame, chassis, connecting rod, engine and cylinder of automobile and motorcycle.
2, electric vehicles, bicycles, motorcycles and other plus number printing;
3, all kinds of goods, vehicles, equipment, product label printing;
4.Various mechanical parts, machine tools, hardware products, metal pipes, gears, pumps, valves, fasteners, steel, instruments and meters. Metal marking for mechanical and electrical equipment; plastics.
| Model | Pin Stamp Marking System | ||
| Working Area | 140*80(L*W) | 80*40(L*W) | 120*50(L*W) |
| Marking Speed Range | 10-100words/min(Adjustable) | ||
| Marking Depth Range | 0.05-1.0mm(According to the materials) | ||
| Unit power | ≤ 200W | ||
| Power | 220V/50HZ/10A | ||
|
Compressed Air Pressure Required |
0.4-0.8Mpa
|
||
| System Functions |
Character inputting, editing ,marking. VIN code automatically calculating, set, marking. Serial number setting, automatically increasing,marking. Tag data query, reporting, printing. Characters, Graphics, Chinese characters editing. |
||
| Marked Font Size | Arbitrary Adjustable | ||
| The Content of Mark Character |
0-9 figures, A-Z large, lower case letters, graphics, characters ( Users can be random homemade) |
||
| Working Voltage | 220V 50Hz ± 10 % | ||
| Machine Consume Power | ≤ 200W | ||
| Working Environment | Temperature: 0-45℃ Humidity: ≤ 80 % | ||
Product description
Multifunctional automobile pneumatic marking machine is specially developed for automobile and related industries. It is suitable for marking frame numbers and signs of automobiles, trucks, trailers and frames, electric vehicles, motorcycles and tricycles. This machine adopts MAC high-frequency solenoid valve imported from the United States, with ultra-high precision control function, to achieve the precise dot matrix and linear engraving, making the marking effect clearer and more beautiful. The main parts of the marking head, using self-enclosed lubrication linear import guide, marking needle for high-grade alloy material, to ensure the marking accuracy and service life. The multi-function automobile marking machine is designed in line with the vehicle rubbing standard of the vehicle management department of the state.
Product advantage
The working principle of the multi-functional automobile pneumatic marking machine is introduced. The marking contents are input into the computer, edited into the required size and format by the built-in software, the computer sends out marking instructions to the marking machine controller, and then drives the marking head parts to run, and the marking needle makes high-frequency vibration impact under the action of high-pressure gas. Type the code or graphics on the frame or sign.
Type parameters
1, computer system: winXP special system, built-in special software;
2, marking size: 160*80mm, 150*70mm, 140*70mm, 200*100mm, 140*30mm, 120*30mm;
3, marking the contents: Chinese and English words, figures, graphics, code, symbols, etc.;
4, marking depth: 0.01-2mm (according to material settings);
5, marking speed: 3-8 words / minute;
6, work power supply: 220V/50HZ;
7, working air pressure: 0.2MPA-0.6MPA;
8, rated power: <300W;
