Product Details:
Payment & Shipping Terms:
|
| Marking Pin: | 3mm | Name: | Number Punching Machine |
|---|---|---|---|
| Service: | One Years Wattary | Feature: | High Quality |
| Marking Product: | Metal | Type: | Pneumatic |
| High Light: | handheld dot peen marking system,dot peen engraver |
||

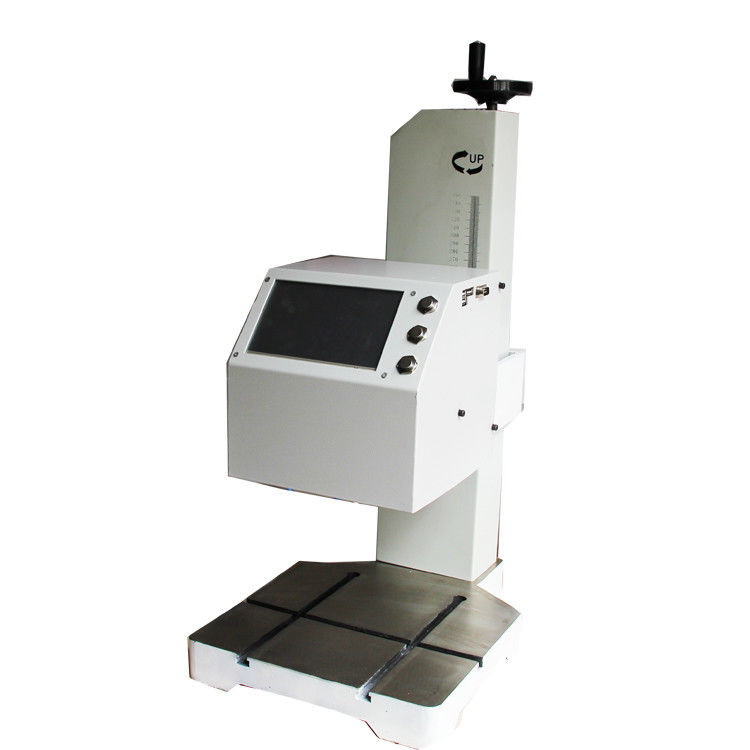

Small Cnc Machines Steel Stamping Machine Number Punching Machine On Metal
Product quick detial
Desktop pneumatic marking machine is a reliable and highly efficient marking equipment independently developed by the company. This machine adopts German micro-impact lattice technology, which can print arbitrary high-standard graphics or text on the surface of different materials. The model has a beautiful appearance, a solid structure, which is convenient to operate, but also to ensure durability and stability of the product. Jiaxin laser pneumatic marking machine can realize automatic and semi-automatic operation mode. Users can choose according to the marking object. At the same time, the model can meet the marking needs of the pipeline, and it can be perfectly combined with the pipeline operation to directly improve work efficiency. Jiaxin Laser Desktop pneumatic marking machine has been continuously tested and improved, its technical performance has been very mature, the service life of the machine can reach 8-10 years, the model has obtained seven technical patents, at present more than 1,000 users at home and abroad, the average trouble-free time is more than 15,000 hours.
| Model | Punching Machine On Metal | ||
| Working Area | 140*80(L*W) | 80*40(L*W) | 120*50(L*W) |
| Marking Speed Range | 10-100words/min(Adjustable) | ||
| Marking Depth Range | 0.05-1.0mm(According to the materials) | ||
| Unit power | ≤ 200W | ||
| Power | 220V/50HZ/10A | ||
|
Compressed Air Pressure Required |
0.4-0.8Mpa
|
||
| System Functions |
Character inputting, editing ,marking. VIN code automatically calculating, set, marking. Serial number setting, automatically increasing,marking. Tag data query, reporting, printing. Characters, Graphics, Chinese characters editing. |
||
| Marked Font Size | Arbitrary Adjustable | ||
| The Content of Mark Character |
0-9 figures, A-Z large, lower case letters, graphics, characters ( Users can be random homemade) |
||
| Working Voltage | 220V 50Hz ± 10 % | ||
| Machine Consume Power | ≤ 200W | ||
| Working Environment | Temperature: 0-45℃ Humidity: ≤ 80 % | ||
Product description
Table type pneumatic marking machine model parameters:
Marking content: arbitrary Chinese and English characters, numbers, special symbols, graphics, code, time, bar code, etc., as well as the common marking pipeline.
Model use: marking content can be automatically stored in the computer, can be edited, queried, and has statistical functions, easy to reuse.
Computer configuration: This machine supports WINDOWS98/ME/XP operation system and is easy to operate.
Font Library: MG font library, SHX font library of AUTO CAD, CHR font library of BORLAND, TTF font library of WINDOWS are supported.
Software cooperation: The computer can read the PLT format graphics of CAD, CORLED RAW, CAXA and other vector drawing software directly.
Product advantage
The base part of the marking head of the desktop pneumatic marking machine is made of precision mold. The overall processing performance is good, which can ensure the marking accuracy and give consideration to the beauty of the marking.
The motion module of marking head adopts imported linear motion guide rail and self-lubricating self-sealing dust-proof, which effectively reduces the wear amount in marking movement and ensures the marking machine running stably under high-precision condition.
The marking machine uses imported pneumatic components and high speed valves for the US MAC company, with a life span of 1-2 billion times.
The marking needle material is made of Swedish high-speed powder metallurgy steel. The unique heat treatment process makes the needle hardness as high as HRA92. It can print 600,000 characters, and can be used after grinding.
The Japanese pneumatic marking machine adopts the Japanese OMRON head switch in place, with high accuracy and good reliability.
