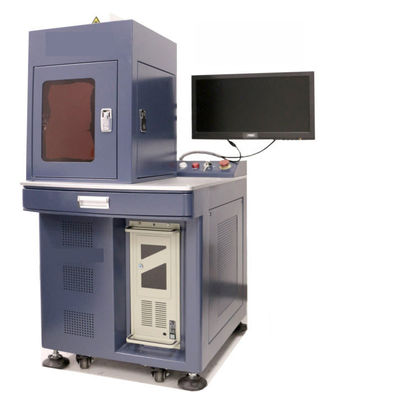

20 Watt Fiber Laser Marking Machine 1064nm Minimum Character 0.15mm For Pcb

China 20 Watt Fiber Laser Marking Machine 1064nm Minimum Character 0.15mm For Pcb supplier

Large Image :  20 Watt Fiber Laser Marking Machine 1064nm Minimum Character 0.15mm For Pcb

Product Details:

Place of Origin: China,Chongqing
Brand Name: Chuke
Certification: CE,FDA,ISO9001
Model Number: FIMM-A01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 3500-9500/Set
Packaging Details: 95x81x122cm wooden case
Delivery Time: 3-8 days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Service: Technical Service Maximun Speed: 7000mm/s
Marking Material: Copper And Aluminum Alloy Model: FLMM-A01
Feature: Cutlery Wear
High Light:

fiber laser marking system

,

fiber laser marker

1064nm Minimum Character 0.15mm 20 Watt Fiber Laser Marking Machine For PCB


Working principle


Integrative structure, compact and compact size, small footprint, easy to move and install, can adapt to the processing site often changing needs;



Using high speed galvanometer, marking speed is 30% faster than that of similar products, respecting every minute of customers.



The laser has a long life and can work continuously for 24 hours.



The special marking software has powerful functions, humanized operation interface, easy to use, and does not need to worry about the troubles caused by frequent changes of operators.



The special machine has strong customization ability and can tailor the exclusive model according to the needs of customers.

Fiber laser marking machine parameter

Laser power

20W
Laser Wavelength 1064nm
Light beam quality <2
Repeating precision ±0.002
Marking range 110x110mm(customize)
Marking depth 0.01~1mm
Marking speed 7000mm/s
Minimum character 0.15mm
Minimum line width 0.01mm
Repeating frequency 20KHz~30KHz
Marking content

Graphics, text, bar codes, two-dimensional code,
date, batch number, serial number

Graphic format supported bmp,png,ai,dxf,dst,plt



220V±10%/50Hz/4A
Size 570mmx270mmx200mm
Gross Weight 135kg
Control interface standard USB port
Laser module life 100000~200000 hours

Application

Complete marker reading and calling is implemented for two-dimensional code controller. The controller is a non-readable character, which is composed of the initiator, isolator, terminator and so on. The software input and read code are not displayed. The software independently developed by Lanshui Laser can be directly input in the interface by controlling abbreviation characters, and can be visually displayed to avoid information loss and omission during production.



Product features



1.The automatic PCB laser marking machine automatically parses the cam file, generates the bar code/two-dimensional code and the required size, optical point coordinates, marking position coordinates, track automatic widening, and generates the corresponding product processing documents. Reduce operator workload and operation mistakes, and achieve stupid operation.



2.scanning the processing sheet through barcode gun, automatically calling engineering drawing files to achieve automatic marking.



3.Automatic PCB laser marking machine with optical point correction, bar code data generation, bar code reading and inspection, NG alarm, bar code recognition and other functions.



4.The software itself records the information of the coded database, marking time, date, coded content, identification status, normal marking, supplementary marking and other production modes, considering the convenience of use.
