Pcb Optical Fiber Laser Marking System Automatic Russian Language 50w

China Pcb Optical Fiber Laser Marking System Automatic Russian Language 50w supplier

Large Image :  Pcb Optical Fiber Laser Marking System Automatic Russian Language 50w

Product Details:

Place of Origin: China,Chongqing
Brand Name: Chuke
Certification: CE,FDA,ISO9001
Model Number: FIMM-A01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 3500-9500/Set
Packaging Details: 95x81x122cm wooden case
Delivery Time: 3-8 days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Service: Technical Service Maximun Speed: 7000mm/s
Marking Material: PCB Model: FLMM-A01
Feature: Cutlery Wear
High Light:

fiber laser marking system

,

fiber laser marker

Russian Language 50w Automatic PCB Optical Laser Marking Machine


Working principle


Complete marker reading and calling is implemented for two-dimensional code controller. The controller is a non-readable character, which is composed of the initiator, isolator, terminator and so on. The software input and read code are not displayed. The software independently developed by Lanshui Laser can be directly input in the interface by controlling abbreviation characters, and can be visually displayed to avoid information loss and omission during production.

Fiber laser marking machine parameter

Laser power

50W
Laser Wavelength 1064nm
Light beam quality <2
Repeating precision ±0.002
Marking range 110x110mm(customize)
Marking depth 0.01~1mm
Marking speed 7000mm/s
Minimum character 0.15mm
Minimum line width 0.01mm
Repeating frequency 20KHz~30KHz
Marking content

Graphics, text, bar codes, two-dimensional code,
date, batch number, serial number

Graphic format supported bmp,png,ai,dxf,dst,plt



220V±10%/50Hz/4A
Size 570mmx270mmx200mm
Gross Weight 135kg
Control interface standard USB port
Laser module life 100000~200000 hours

PCB Laser marking machine application

1.The automatic PCB laser marking machine automatically parses the cam file, generates the bar code/two-dimensional code and the required size, optical point coordinates, marking position coordinates, track automatic widening, and generates the corresponding product processing documents. Reduce operator workload and operation mistakes, and achieve stupid operation.



2.scanning the processing sheet through barcode gun, automatically calling engineering drawing files to achieve automatic marking.

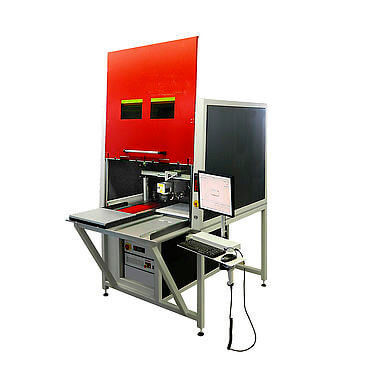

Pcb Optical Fiber Laser Marking System Automatic Russian Language 50w

PCB Laser marking machine product features

1.Automatic PCB laser marking machine with optical point correction, bar code data generation, bar code reading and inspection, NG alarm, bar code recognition and other functions.



2.The software itself records the information of the coded database, marking time, date, coded content, identification status, normal marking, supplementary marking and other production modes, considering the convenience of use.
