200W 1064nm Wavelength Fiber Laser Welding Machine For Jewelry With High Precision

Good quality Fiber Laser Marking Machine for sales
Good quality Fiber Laser Marking Machine for sales
We bought the laser marking machine.it is good quality. Hope CHUKE have the good bussiness all the time

—— Alfanar Electrical System

We bought the laser marking machine.it is goog quality. Hope CHUKE have the good bussiness all the time

—— Alfanar Electrical System

Chuke have been working with us for over 10 years. They provide us with accessories for marking machines, so that our machines sell well in India.

—— EtchON Marks Control

We have already bought second laser marking machines at the beginning, which is compatible with our assembly line operation, fully automated marking, fast, safe and efficient marking.

—— Ford Company

I'm Online Chat Now

200W 1064nm Wavelength Fiber Laser Welding Machine For Jewelry With High Precision

China 200W 1064nm Wavelength Fiber Laser Welding Machine For Jewelry With High Precision supplier
200W 1064nm Wavelength Fiber Laser Welding Machine For Jewelry With High Precision supplier 200W 1064nm Wavelength Fiber Laser Welding Machine For Jewelry With High Precision supplier

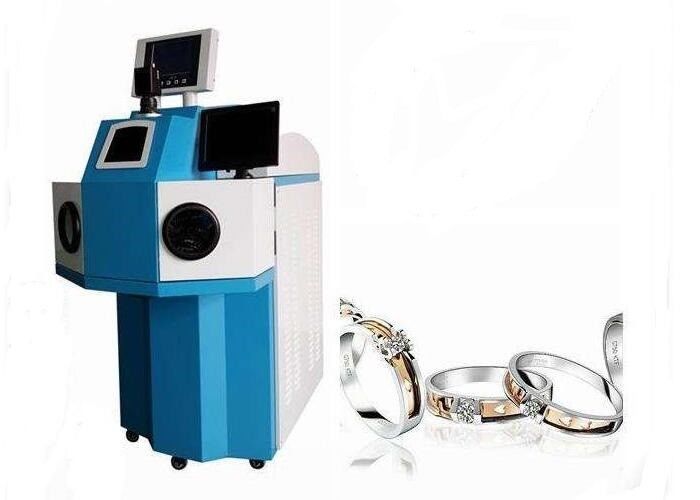

Large Image :  200W 1064nm Wavelength Fiber Laser Welding Machine For Jewelry With High Precision

Product Details:

Place of Origin: China
Brand Name: Chuke
Certification: CE, ISO
Model Number: LWM-A01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 5800 - 8000 /set
Packaging Details: Each set of machine is wrapped in a polybag and packed in a sturdy wooden case linedwith foam to protect against shocks and rough handling
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, , D/A, D/P, MoneyGram,Paypal
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Name: Chuke Jewelry Laser Welding Machine Power: 200 Watt
Wavelength: 1064nm Color: Blue And White
Warranty: 1 Year Cooling System: Water Cooling
Condition: New Single Pulse Energy: 90J
High Light:

cnc laser welding machine

,

fiber optic welding machine





200W 1064nm Wavelength Jewelry Laser Welding Machine with High Precision
Product Description

1. Jewelry laser welding machine is using high energy laser pulse to material localized heating with a small area.
2. The energy of laser radiation diffuses into the interior of material by heat conduction, the material is melted and formed to special weld pool.
3. Jewelry laser welding machine can weld the same or the different material together.

Product Specification



200W 1064nm Wavelength Fiber Laser Welding Machine For Jewelry With High Precision

ModelJewelry Laser Welding MachineLaser wavelength1064nm
Power200WPower consumption6KW
Max laser output power200W

Pulse frequency

0.1-40Hz

Pulse width

0.1-20MS

Cooling input

1.0p

Worktable range

170*170mm

Positional accuracy

0.02mm

Dimension

550*800*800(mm)

Water pressure protection

≤0.025MPa

Cooling water temperature

≤35
water temperature protection 45

Voltage

Single phase 220VAC/50Hz/30A Three phase 380VAC/50Hz/40A


Product Application

Widely apply to patch holes of platinum and gemstone, gold and silver jewelry, spot and seam welding, jaw hand welding when mount parts.
 200W 1064nm Wavelength Fiber Laser Welding Machine For Jewelry With High Precision
Product Advantage


  • corrosion resistance, high temperature resistance, high photoelectric conversion rate and long lifetime.
  • Adjustable laser energy, pulse width, frequency, suitable for welding various metals.
  • Oversized countertop with humanized design is suitable for long time use without fatigue.
  • Fast speed, high efficiency, great depth, small deformation, small heat affected zone, high welding quality, high environmental protection and no-pollution.
  • Cross cursor indication, using the high speed liquid crystal light valve to realize automatic dodging, shielding gas is synchronously outputted with laser to ensure welding spot appearance without oxidation discoloration.

FAQ

Q: Are you a factory ?
A: Yes, We are a Professional manufacturer of laser welding machine, all products are sold directly by fty.


Q: How can I know your machine works well?
A: Before delivery, our machines have to pass strict inspection and accurate commissioning.


Q: How can I pay my order?
A: We accept T/T, paying methods and Alibaba online payment.


Q: How long is the guarantee?
A: We offer 1 year warranty for jewelry laser welding machine.

Q: Do you offer free service how to operate the machine?
A: Of course, we will offer free training online or welcome to visit our facotory for onsite training.

Q: If your machine can't work well, how did you resolve?
A: Professional technical teams are online for 24-hours who can check and give you solution way very soon, for machines beyond the warranty period we can repair with extra charge.
