| Name: | Desktop Laser Welding Machine For Gold And Silver Jewellry | Power: | 300W |
|---|---|---|---|
| Condition: | New | Color: | Red |
| Warranty: | 1 Year | Pulse Width: | 0.1-20ms |
| Wavelength: | 1064nm | ||
| High Light: | cnc laser welding machine,fiber optic welding machine |
||

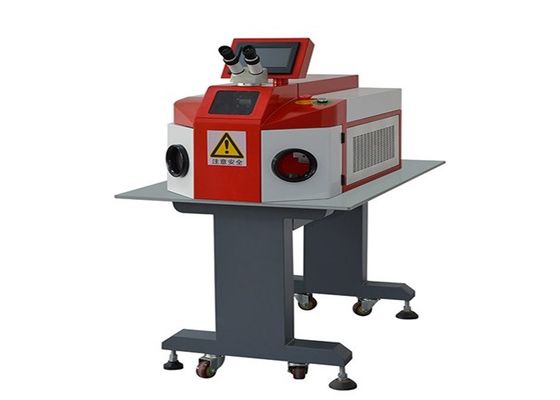

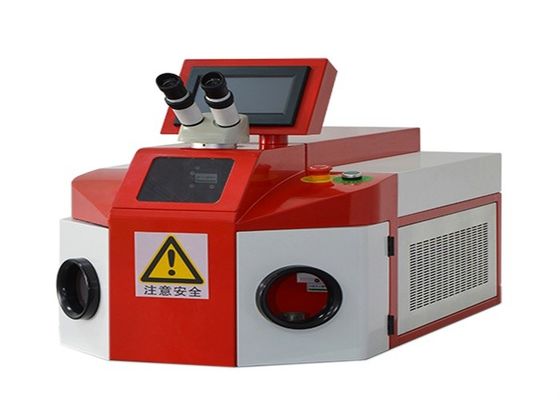

90J Desktop Laser Welding Machine for Gold and Sliver Jewellry Soldering
Product Advantage
1. One-touch operation, One-key opertaion, Simplify the machine startup process, an operator can operate conveniently in actual use.
2. Small size with desktop design will reduce workplace and easy to transport and move.
3. 24 hours longtime continuous working, stable performance.
4. Advanced automatic lens hood protects your eyes from damage.
5. Improve greatly welding effiency, save both time and labor.
6. Compared with the conventional welding process, more environmentally friendly and less pollution, will not cause any allergic for human wear.
Product Specification
| Name | Laser Welding Machine for Gold and Silver Jewellry | Observation system | Microscope |
| Power | 300W | Max Laser Power | 400W |
| Power System | 6KW | Single Pulse Energy | 90J |
| Pulse Frequency | 0.1-40Hz | Pulse Width | 0.1-20MS |
| Cooling Input | 1.0P | Cooling System | Water Cooling |
| Laser Wavelength | 1064nm | Positional Accuracy | 0.02mm |
| Working Area | 170*170mm | Dimension | 550*800*800(mm) |
| Focal Spot Diameter | 0.1-2.0mm | Power Supply | 220V/50Hz/30A 380V/50Hz/40A |
| Water Pressure Protection | ≤0.025MPa | Weight | 80kg |
Product Application
Laser welding machine is widely used for gold and silver jewellry. The welding is steady, less distortion, efficient and non-pollution and energy saving. Easy learning and easy operation.
Product Description
Laser technology as the symbol of third technology renew is used in many areas, laser welding for gold and silver jewellry is one of the most important applications of laser technology.
Laser welder for jewellry has advantages of high speed, high quality, high precision and high stability, its desktop design is the best choice of more managing space.
FAQ
Q: When could you possibly deliver after placing orders ?
A: About 7 - 10 working days.
Q: What is your packing method?
A: Each set of laser welding machine is wrapped in a polybag and packed in a sturdy wooden case lined with foam to protect against shocks and rough handling.
Q: Do you offer overseas after-sales service?
A: No oversea service, but our technical team can offer free training online training support.
Q: How long is the guarantee?
A: We offer 1 Years' warranty for jewelry laser welding machine.
Q: What is your shipping way?
A: The standard shipping way is UPS, TNT, FedEx, DHL and can select express per your request.
