Continuous Pulse Optical Fiber Laser Welding Machine For CBB Capacitor

China Continuous Pulse Optical Fiber Laser Welding Machine For CBB Capacitor supplier
Continuous Pulse Optical Fiber Laser Welding Machine For CBB Capacitor supplier Continuous Pulse Optical Fiber Laser Welding Machine For CBB Capacitor supplier

Large Image :  Continuous Pulse Optical Fiber Laser Welding Machine For CBB Capacitor

Product Details:

Place of Origin: CHINA
Brand Name: CHUKE
Certification: CE, ISO, FDA
Model Number: FLWM-A02

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD 6800-9800/ SET
Packaging Details: Standard export wooden case
Delivery Time: 15 working days
Payment Terms: L/C, T/T, , MoneyGram, D/A, D/P, PayPal
Supply Ability: 30 SET per Month
Contact Now
Detailed Product Description
Name: Capacitor Optical Fiber Welding Machine Condition: New
Power: 100J Delivery: EXW China
Payment: TT 100% In Advance Warranty: 12 Months
High Light:

stainless steel welding equipment

,

cnc laser welding machine





Fast Speed Continuous Pulse Optical Fiber Welding Machine for CBB Capacitor





Technical Specification:



Laser Crystal ND:YAG Laser Wavelength 1064nm
Rated Output Power 400W Single Pulse Energy 100J/10MS
Pulse Frequency 1-100HZ Pulse Width 0.2-20MS
Focal Spot Diameter 0.2-3mm Power Supply AC380V/50HZ
Workbench Range 200*300 (XY) Positional Accuracy 0.02mm
Power Consumption 12KW Cooling Type Water Cooling
Positional Mode LD CCD optional Loading Ability ≤200Kg
Language Chinese and English Net Weight 300Kg

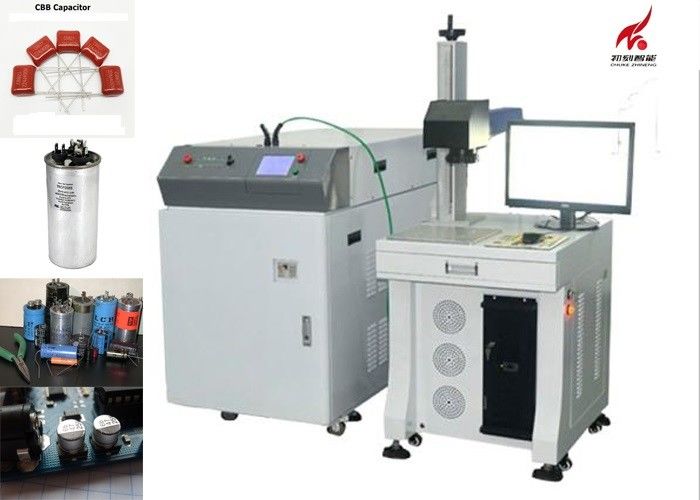

Continuous Pulse Optical Fiber Laser Welding Machine For CBB Capacitor





Product Description:

Continuous Pulse Optical Fiber Laser Welding Machine For CBB Capacitor

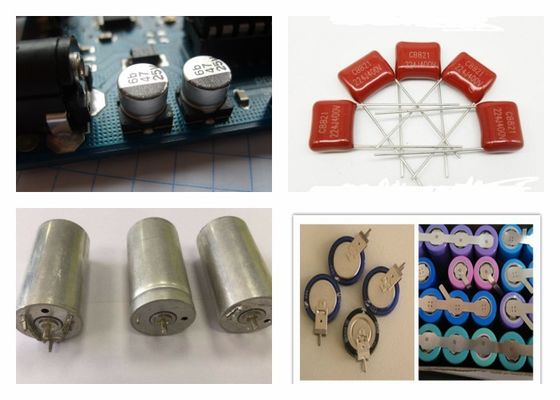

1. The advantages of laser welding machine for metal capacitor shell mainly include fine welding seam, firm, good surface quality, good sealing, less resin degradation, less breakage, suitable for medical products and electronic products.



2. Good controllability, simple welding small and not easy to reach parts, small size and disordered shape parts; Small welding stress deformation, not easy to damage products.



3. Suitable for welding heterogeneous metals; Do not use volatile organic solvents and adhesives, will not produce harmful gases, high recovery of products, ecological and environmental protection.



4. Low melting point and simple control of absorbency, welding can be carried out under low strength and low aggregation conditions.





Product Features:



1. Realtime control, various waveform Settings, bring fine welding quality.



2. Stability, high reliability, 24 hours stable operation.



3. CCD coaxial monitoring system is configured and image cutting equipment is selected. After switching operation, the positions of solder joints can be investigated together or apart from each other in one display, which is simple and intuitive.



4. Energy response fiber optic transmission laser welding machine USES real-time negative energy reaction, laser energy is stable, welding point size is uniform.



5. Energy beam split or time splitter can be used for joint or time splitter welding.

6. Waveforms can be arbitrarily set according to welding data, shape and so on.

7. Key element equipments are selected from foreign imports to ensure the quality of products.


FAQ:

Q: How does the machine get packaged?
A: Each set of machine will be packed in the standard export wooden case and overall stuffing with foam to protect the machine from vibration and jarring.

Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers canlearn by themselves.

Q: How can I do if the machine goes wrong?
A: If machine goes wrong, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
