Product Details:
Payment & Shipping Terms:
|
| Name: | Advertisement Letter Welding Machine | Power: | 200 Watt |
|---|---|---|---|
| Wavelength: | 1064nm | Cooling: | Water Cooling |
| Color: | Blue And White | Laser Type: | Pulsed |
| Condition: | New | OEM: | Yes |
| High Light: | cnc laser welding machine,fiber optic welding machine |
||

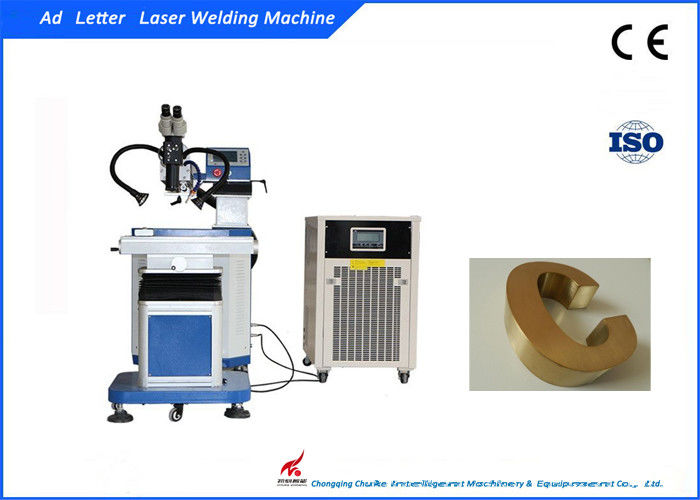

200Watt Factory Direct Automatic Ad Letter Laser Welder for Advertising Ideas
AD Letter Welder Parameter:
| Power | 200watt | 400watt |
| Power Supply | 220V+10%/50Hz | 380V+10%/50Hz |
Pulse Width | 0.5-0.25MS | |
Pulse Frequency | 0.1-100Hz | |
| Laser Wavelength | 1064nm | |
Laser Type | Pulse ø7*145mm | |
Laser Cavity Length | 117mm | |
Spot Size | 0.2-3.0mm | |
Cooling System | Water Chiller | |
Observation System | CCD/microscope(optional) | |
Shielding Gas | Hydrogen(optional) | |
Output focal Length | 80mm/120mm/150mm/200mm | |
Worktable Size | 600*1100mm | |
Lifting Size | worktable=500mm light path=600mm | |
Worktable Loading | 50KGS | |
Total Weight | 150KGS | |
AD Letter Welder Instruction:
Advertising letter laser welding machine is a new welding technology used in the advertisement industry, especially stainless steel has very high standards for the welding technique because of appearance requirement.
With the advent of advertising words welding machine, there is no scope to display increasingly their abilities in the advertisement industry for the traditional argon arc welding, cold welding.
The appearance of new laser advertising word welding machine and mature practicality will bring a technical innovation to advertising words welding industry.
AD Letter Welder Application:

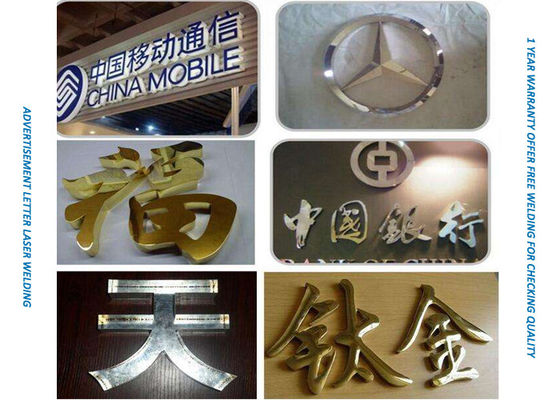

Mainly used for various of metal letters, LED illuminated letters, outdoor advertisement billboards welding.
Ad letters welder is suitable for Metal Logo LED Advertising Letters, such as stainless steel, aluminum, iron, alloy, carbon steel and so on.
AD Letter Welder Features:
1. Laser head supports to electrically move back and forth, up and down, left and right and 360 degree rotary.
2. Small heat affected zone will not be deformeded.
3. Design for letters in the advertising industry with lengthened optical path up to 800mm.
4. No raised spot after welding process, the appearance is beautiful and tight.
5. No requirement of polishing process, the welding effect is more clear and intuitive.
6. Saving lower material and labor costs.
7. CCD monitor and microscope can be optional.
8. Specially long focal distance lens F=200mm to meet the demand for ultra-high front welding.
Why Choose Us?
1. Establishing business with Chuke Machinery & Equipement Co., Ltd is safe and benefit.
2. 13 Years' Factory Experience and 10 Years' Export Experience.
3. CE, ISO, FDA, Patents Quality Guaranty.
4. 24 Hours pre-sales and after-sales Service.
5. Strictly testing and commissioning before delivery.
6. Offer free welding sample before sales.
7. Online support to train installation and operation.
