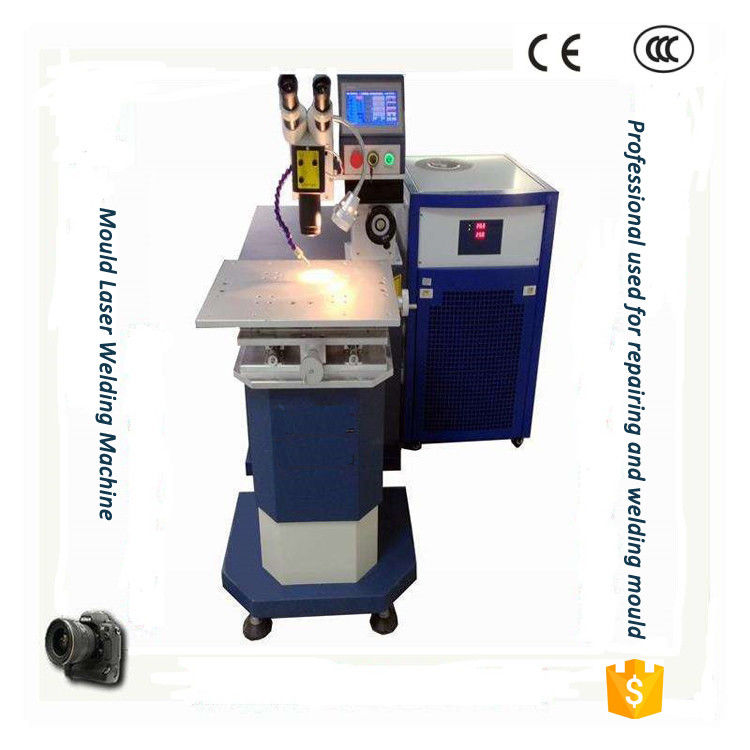

Mould Repair Laser Welding Machine Description
The laser mold welding machine is a current advanced welding equipment. It is a special welding laser equipment specially produced for the mold industry. It can be used for the repair of precision molds and the error caused by product production.
Laser mold welding machine is engraved in various 3C electronic digital products, mobile phones, toys, automobiles, motorcycles and other mold manufacturing and molding industries. By using the laser welding wire to repair the mold, the used mold can be fully utilized again, which greatly saves the manufacturing cost of the mold and improves the working efficiency.
Laser mold welding machine technology can also be applied to modify and make up the production design or size of the mold, reducing the production cycle and time of mold product development.
Mould Repair Laser Welding Machine Application

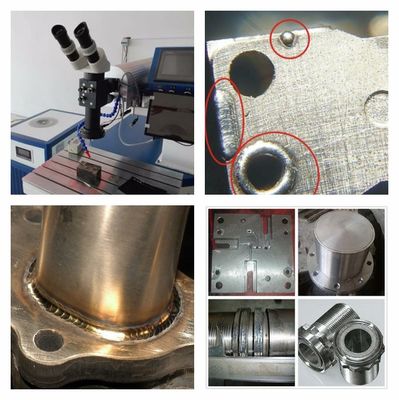

1. Mold laser welding machine can repair molds: plastic mold, die-casting mold, stamping mold, plastic mold, etc.
2. Excepting for repairing the mold, the mold laser welding machine can also be welded: gold jewelry, silver jewelry, stainless steel jewelry, wear of parts, watch parts, welding of parts of mobile phone stainless steel shell, welding of various stainless steel kettle spouts, stainless steel sanitary products welding and laser welding processes have been used in more and more fields.
Mould Repair Laser Welding Machine Specification
| Name |
Mould Repair Laser Welding Machine |
| Laser Wavelength |
1064nm |
| Max Power |
200W |
| Laser Frequency |
0.1~30Hz |
| Pulse Width |
0.1~20ms |
| Focal Spot Diameter |
0.3~2mm |
| Positional Accuracy |
±0.02mm |
|
Light Concentrating Housing
|
British ceramic cavity
|
|
Cooling Input
|
1.5p chiller
|
| Power Supply |
220V Single phase/50Hz/30A
|
|
Worktable Range
|
100*120mm
|
|
Water Cooler Size
|
400*650*700mm
|
|
Dimension
|
600*1400*1200mm
|
Mould Repair Laser Welding Machine Features
1. Fast processing speed.
2. Can process the local heat treatment of parts.
3. The deformation and heat affected zone is small.
4. Can be used to process components with complex shape and micro parts.
5. No preheating.
6. Can be used to repair cracks, breakage, corner edges, sand hole and mold wear.
7. No deformation of edge collapse.
8. No bubble and sand hole produced.
