Product Details:
Payment & Shipping Terms:
|
| Marking Pin: | 110 Mm | Name: | Dot Peen Marking Machine |
|---|---|---|---|
| Service: | One Years Wattary | Feature: | High Quality |
| Marking Product: | Metal | Type: | Pneumatic |
| High Light: | handheld dot peen marking system,dot peen engraver |
||

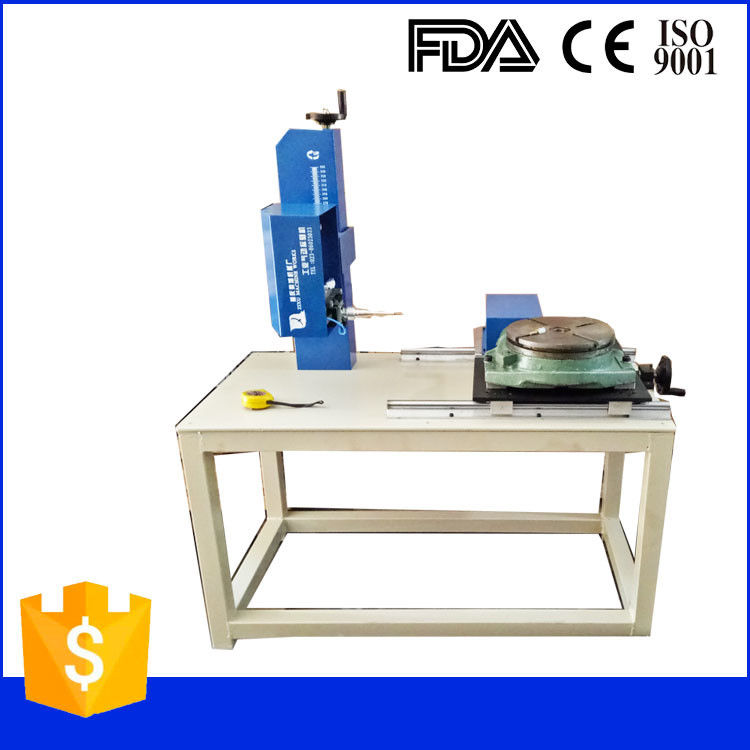

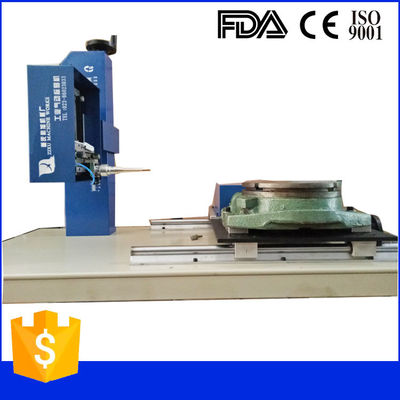

Blue Colour Desktop Dot Pin Marking Machine For Carbon Steel Flange Engraver
Product quick detial:
1. Two-year warranty, man-made and irresistible factors
2. Lifelong maintenance and spare parts supply
3. Free assistance to customers in arranging logistics and providing full customs clearance information
4. Free online installation and commissioning, free training for operation and maintenance personnel
5. Free design fixtures according to user needs
6. Free software upgrade for users
7. Provide technical advice to customers free of charge
8. Undertake external processing services and maintenance of various marking equipment
| Model | Dot Peen Marking Machine | ||
| Working Area | 140*80(L*W) | 80*40(L*W) | 120*50(L*W) |
| Marking Speed Range | 10-100words/min(Adjustable) | ||
| Marking Depth Range | 0.05-1.0mm(According to the materials) | ||
| Unit power | ≤ 200W | ||
| Power | 220V/50HZ/10A | ||
|
Compressed Air Pressure Required |
0.4-0.8Mpa
|
||
| System Functions |
Character inputting, editing ,marking. VIN code automatically calculating, set, marking. Serial number setting, automatically increasing,marking. Tag data query, reporting, printing. Characters, Graphics, Chinese characters editing. |
||
| Marked Font Size | Arbitrary Adjustable | ||
| The Content of Mark Character |
0-9 figures, A-Z large, lower case letters, graphics, characters ( Users can be random homemade) |
||
| Working Voltage | 220V 50Hz ± 10 % | ||
| Machine Consume Power | ≤ 200W | ||
| Working Environment | Temperature: 0-45℃ Humidity: ≤ 80 % | ||
Product description:
1. It can be operated completely offline, friendly man-machine interface, easy to learn and use, and easy to operate.
2. Automatically print serial number, VIN code, etc.
3. The printed graphics and the like are solidified in the system and cannot be changed at will.
4. Pneumatic printing, as long as there is power and gas source to work.
5. The needle is made of hard alloy material, and the hardness of the printing material can reach HRC60.
6. Anti-interference, strong radiation resistance, and adapt to the harsh working environment
7. Very low failure rate and low maintenance
8. Low power consumption, low cost, low price
Product advantage
1. A variety of fonts are optional, you can edit the font yourself.
2. The print head can be adjusted up and down to adjust the marking depth at will.
3. Can directly display the observation mark effect on the screen
4. With the needle system, it can accurately move the print content to the corresponding position
5. The software supports printing English, numbers, Chinese characters, graphics, etc., and the print
content can be switched at will.
6. Automatically arrange serial number, print time, quantity, content
7. Automatic storage function for easy statistics
8. Alloy steel marking needle, durable, marking effect is clear and smooth
9. The machine is stable and the heat dissipation is good.
Why choose the machine?
1. High-hard alloy marking needle, which can print metal workpieces with hardness below HRC60 and hard non-metal such as plastic, rubber, wood, hard paper, etc. The needle strength is 20% higher than ordinary, durable, marking effect Clear.
2. Marking software is powerful, with automatic memory, automatic water function, equipment can print numbers, Chinese characters, letters, symbols, rulers, QR codes, graphics and so on.
3. The original copper valve core valve has precise pressure regulation and stability.
4. High-precision original motherboard, original solenoid valve, stable performance, high sensitivity, no delay in passing gas, high cost performance.
5. Original sliding high-precision U-shaped guide rail, high printing precision and quality assurance.
6. Custom cast aluminum workbench, smooth and flat, good stability, conducive to accurate printing.
7. The whole machine is packed in wooden box, suitable for long-distance transportation to avoid machine damage.
