Glass CO2 Laser Engraver , Small Laser Engraving Machine 60W 80W 100W 150W

Good quality Fiber Laser Marking Machine for sales
Good quality Fiber Laser Marking Machine for sales
We bought the laser marking machine.it is good quality. Hope CHUKE have the good bussiness all the time

—— Alfanar Electrical System

We bought the laser marking machine.it is goog quality. Hope CHUKE have the good bussiness all the time

—— Alfanar Electrical System

Chuke have been working with us for over 10 years. They provide us with accessories for marking machines, so that our machines sell well in India.

—— EtchON Marks Control

We have already bought second laser marking machines at the beginning, which is compatible with our assembly line operation, fully automated marking, fast, safe and efficient marking.

—— Ford Company

I'm Online Chat Now

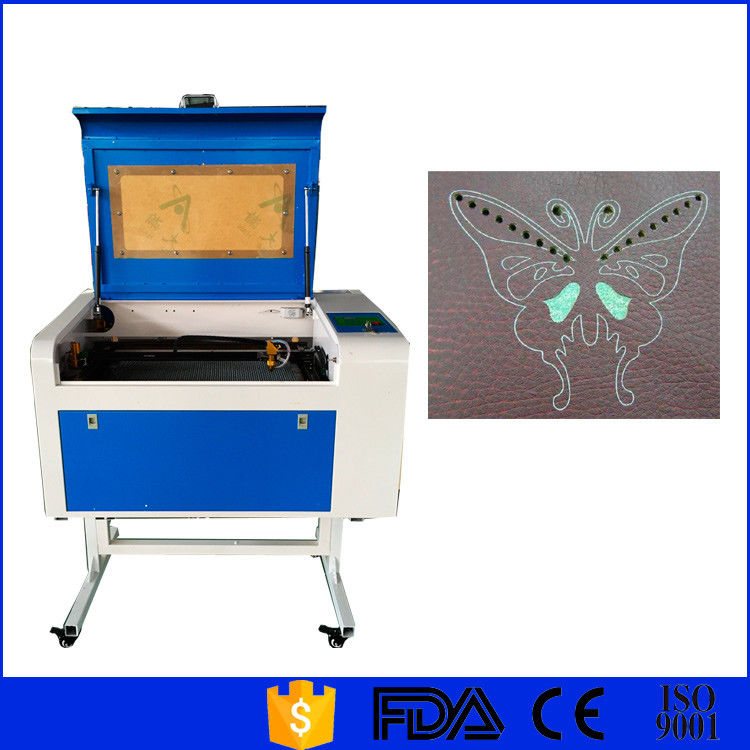

Glass CO2 Laser Engraver , Small Laser Engraving Machine 60W 80W 100W 150W

China Glass CO2 Laser Engraver , Small Laser Engraving Machine 60W 80W 100W 150W supplier
Glass CO2 Laser Engraver , Small Laser Engraving Machine 60W 80W 100W 150W supplier Glass CO2 Laser Engraver , Small Laser Engraving Machine 60W 80W 100W 150W supplier

Large Image :  Glass CO2 Laser Engraver , Small Laser Engraving Machine 60W 80W 100W 150W

Product Details:

Place of Origin: China
Brand Name: chuke
Certification: CE,ISO9001,FDA,TUV
Model Number: COMM-A01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 2000-4000 per set
Packaging Details: Packing in wooden
Delivery Time: 5-8 days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability: 1000set/month
Contact Now
Detailed Product Description
Laser Type: Sealed CO2 Laser Tube Laser Power: 50w
Cooling Mode: Circulating Water Cooling Max. Engraving Speed: 60000mm/min
Max Cutting Speed: 50000mm/min
High Light:

co2 engraving machine

,

co2 laser engraving machine



High Speed Glass 60W 80W 100W 150W Co2 Laser Engraving Machine Co2



Product quick detial:



A. Original imported stepper motor and drive system
B. Domestic laser (60/80/100/150W) optional
C. Adopt foreign imported linear guide
D. Dual transmission mode: industrial serial port, USP serial port
E. Large subtitle LCD screen, user-friendly button control panel
F. Optical path system adopts Singapore imported laser lens system
G. High-strength stainless iron honeycomb bottom plate or aluminum blade board optional
H. DCLASER Control System
I. PCI card / USB interface online / disconnected directly read U disk

Glass CO2 Laser Engraver , Small Laser Engraving Machine 60W 80W 100W 150W



Machine model Laser engraving cutting machine
Laser type Sealed CO2 laser tube
Laser power 40W/60W/80W/100W
Cooling mode Circulating water cooling
Laser power control 0-100% software control
Control system DSP offline control system
Max. engraving speed 60000mm/min
Max cutting speed 50000mm/min
Repetition accuracy ≤±0.01mm
Min. Letter Chinese:1.5mm, English:1mm



Product description



1. Does your laser run from a laptop or Desktop PC?


A: both are OK, as long as your operation system is window 2000/XP/vista/win7



2. Does your laser work from printer in coreldraw/autocad?
A: our laser machine can work in CorelDraw and AutoCAD directly.
and it connects to PC by using a USB cable.



3. What files is the software compatible with?
A: JPG,PNG,BMP, PLT, DST, DXF,CDR,AI,DSB,GIF,MNG,TIF,TGA,
PCX,JP2,JPC,PGX,RAS,PNM,SKA,RAW



4. What's the difference between the different laser tubes?
A: usually,the power of the tube is decided by two parameters:
1) the length of the tube,the longer the tube is, the more powerful.
2) the diameter of the tube,the bigger the tube is, the more powerful.



5. What other models does your company have ?

A: There are 7 main models in our factory, like small laser 300*200mm, 300*400mm, large laser 400*600mm, 600*900mm, 900*1300mm, 1000*400mm, 1000*600mm,1300*2500mm etc. please contact our sales for the proper model.



6. How to confirm the best model ?

A: please check the three questions and the model list below, it will help you to make the choice.

Q1- What's the working material ?

Q2- What's the size of material ?

Q3- What's the Cutting depth ?



Product advantage



The mechanical system of the laser engraving machine adopts a unique deceleration design, and the movement is stable and smooth.

The cutting effect is smooth and non-aliased. The software uses a continuous curve algorithm that cuts faster.

Fully meet the engraving and cutting of large wood, PVC, acrylic, plexiglass, cloth, leather and other materials. It is an economical device.

The performance of the whole machine is stable, easy to operate, and with professional software, it can achieve high quality and efficient processing effect for various industries.



Why choose the machine?



1- The table size of this machine is 400mmX600mm.It is equipped with 60W laser power supply with 60W laser tube,mainly used in different materials engraving.

2- This model Laser machine uses blocking design, easy to install and adjust, the machine frame in reason, the materials can put into from the front and behind, it can Exhaust the smoke on the above and below of the laser machine.

3- it uses offline control system, English LCD, USB interface, support CAD and CorelDraw output directly.

4- This machine is equipped with high precision ball screw up and down working table, that can be up and down by motor.
