Product Details:
Payment & Shipping Terms:
|
| Colour: | Red | Maximun Speed: | 7000mm/s |
|---|---|---|---|
| Quality Of Light Plate: | M2<2 | Minimum Line Width: | 0.1mm |
| Laser Brand: | Raycus | Application: | Metal |
| Application Material: | Steel, All Kinds Of Metal Materials | Service: | 24 Hours Online Service |
| Support Graphics Formates: | Special Charameter | ||
| High Light: | laser marking device,metal marking equipment |
||

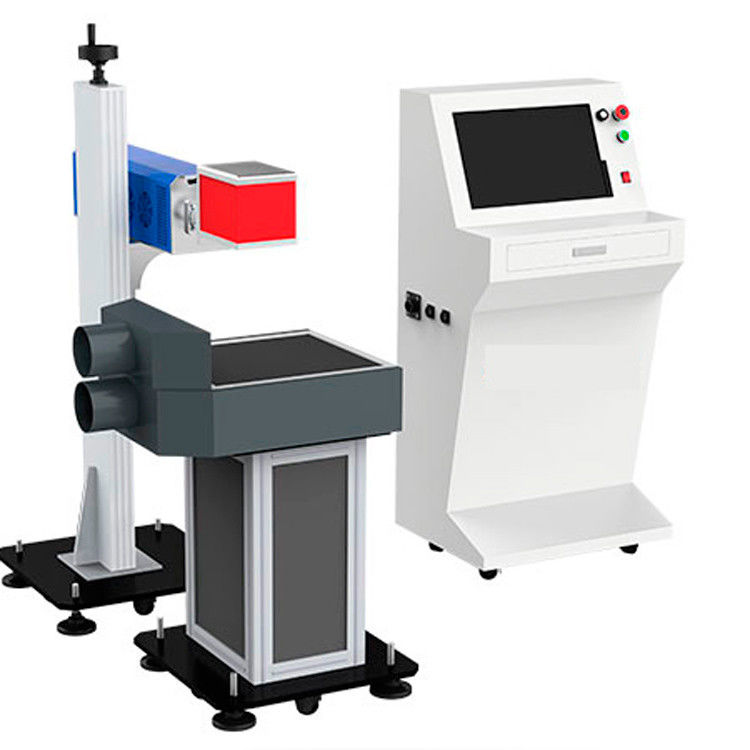

1. Full-direction wheel & adjustable foot convenient to move.
2. Long lifespan of fiber laser source: 100,000 hours.
3. High quality scanning galvanometer with good seal, small volume, compact.
4. JCZ controller, USB interface, swift and stable transmission.
5. High precision up to 0.001mm bring you the fantastic and satisfied marking effect.
6. Superior laser beam, the definition is 1 micron, 10 times as that of traditional products.
7. No consumbles, one fiber marker can work for more than 10 years without any consumbles.
8. Fast speed, marking speed 7000mm/s is 3 to 5 times above that of traditional products.
9. The fiber laser beam no need to adjust the laser optical beam.
10. Low consumption <400W is 1/25 ~ 1/10 times as that of Diode and YAG, more economized and environmetal.
11. Strong compatibility, TTF font, SHX, BMP, DXF, AI, PLT and other format files output from CorelDraw, PS, AutoCAD, etc.
12. Integrated air cooling system, the cooling effect is more excellent than the water cooling effect in YAG laser, no maintenance.
|
Laser power |
30W |
| Laser Wavelength | 1064nm |
| Light beam quality | <2 |
| Repeating precision | ±0.002 |
| Marking range | 110x110mm(customize) |
| Marking depth | 0.01~1mm |
| Marking speed | 7000mm/s |
| Minimum character | 0.15mm |
| Minimum line width | 0.01mm |
| Repeating frequency | 20KHz~30KHz |
| Marking content |
Graphics, text, bar codes, two-dimensional code, date, batch number, serial number |
| Graphic format supported | bmp,png,ai,dxf,dst,plt |
|
|
220V±10%/50Hz/4A |
| Size | 570mmx270mmx200mm |
| Gross Weight | 135kg |
| Control interface | standard USB port |
| Laser module life | 100000~200000 hours |
Application
laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel,
1. Long service life, high reliability, fine beam quality
2. Using the third generation of optical fiber laser technology, high-speed permanent free maintenance
3. Using a full set of German imported accessories, laser and galvanometer laser long service life.
4.Adjustable scale, control 500mm height up and down by hands wheel, it can mark different thickness samples.
5. JCZ copyrighted main board, fool software and easy operation.
Packing and shipping
1.Standard export wooden case packing
Delivery Time
1~5 working days
FAQ
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: Can we add a protection cover?
A: Yes, we can add a protection cover if you need. We can customize the design as customers’ requests.
