High Accuracy Dot Pin Marking Machine


Principle:

The needle marking all marks (text, numbers, LOGO, two-dimensional code) is composed of a series of points, each point is composed of needle impact marking surface. The controllable current pulse generates magnetic field through the electromagnetic coil, and the impact pin is generated by the magnetic field. The marking pin of hard alloy or mosaic industrial diamond hits the workpiece surface violently under the action of magnetic field. The high performance spring takes the needle back to the initial position and waits for the next pulse. The marking frequency is adjusted by adjusting the marking dynamics and the motion speed of the X and Y axes. The uniqueness of the purple sun marking point pin marking is that the controller can measure the frequency between every two pulses to ensure the consistency of the impact.

Application:

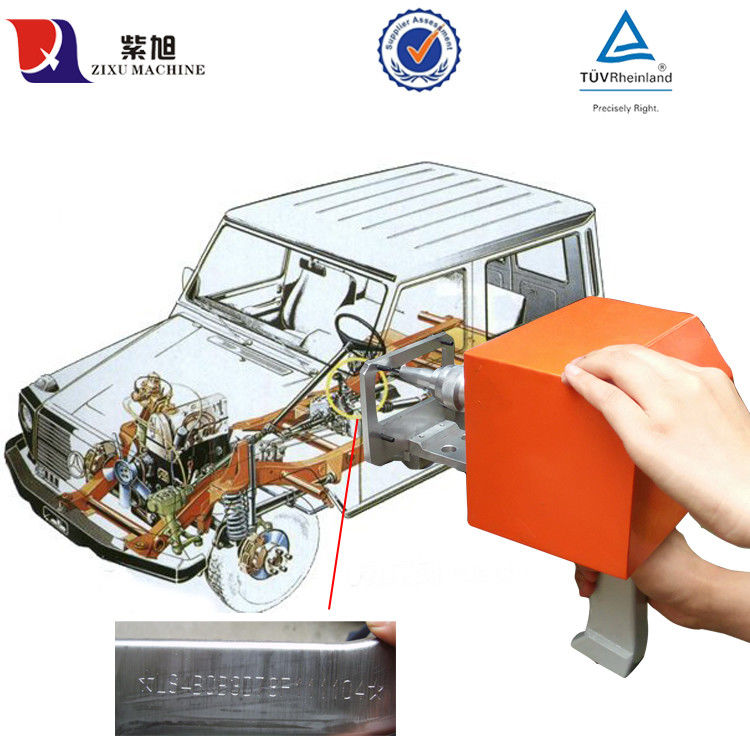

The VIN marking Chuke marking machine is the car chassis, and the engine and the transmission box (VIN) vehicle identification number mark provides a complete set of solutions. Whether it's producing 10 cars a day or using the purple sun marking machine for 10 minutes on the car every day, the purple sun has a suitable solution. The VIN marking system of the purple sun's integrated planning machine places the control system directly on the marking station and provides the T7 control system for the operator to use quickly and conveniently.

Portable Dot Peen Marking Machine parameter



Usage method

Install the pressure valve, connect the trachea, open the controller, open the software, set up the mark, open the air switch, and press the print switch to start the printing.

Product features

The purple sun marking machine provides a complete robot, a visual guide system that can encode VIN automatically on the chassis, engine, or gear box. Data can be entered from the T7 controller, the bar code on the worksheet, the RFID label, the spreadsheet, or manual input by the operator.

FAQ

Must the pneumatic marking machine be connected to the air compressor?

Yes, the pneumatic marking machine must be connected to the air compressor, so that the marking force is big and can hit the depth you want.

Design feature

The purple sun's revolutionary VIN markup system can mark a complete 19 character code in an unprecedented 4 seconds to be 0.5mm depth.


After service

1> All of our machine will be full-checked by our quality control department before the shipment. We make sure that customers
will be get good products from us. and all of our machine with a 12 months quality guarantee period.
2> We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the
customer.
3> We will offer plenty of online supports, by email, video, telephone and fax.
4> Our engineer can make a door-to-door instruction training service.

Packing and shipping

Carton case
Delivery Time
7 days after received payment



Chuke Factory

Chongqing Chuke Intelligent Machinery &Equipment Co.,Ltd
, is a professional engaged in marking machine design and industrial enterprises. Founded in 2006, covers an area of 2000 square meters. In annual production of 500 sets of laser marking machine, pneumatic and electric marking machine more than 1000 units, marking needle (pneumatic marking needle species of up to more than 100 species) annual output of more than 100 thousand sets.

Since the establishment of our company, the products are loved by countries around the world. Such as the United Kingdom, Spain, France, Germany, the United States, Dubai and Brazil, South Korea and other more than and 30 countries and regions. After we continue to improve and perfect the product quality has been achieved CE, ISO9001, FDA, TUV certificate, won the domestic and foreign large number of customers favor and approval.

More than and 10 years of development, our company has always adhered to the "integrity, quality, innovation, service" concept. Absorb new ideas, strict quality control, a full range of service tracking, adhere to make high-quality products. Now has a group of elite management and a team of high-quality professional and technical team. We take the quality as the life, the time is the prestige, the price is the competitive power management belief, based on the domestic and foreign market.
