Application:
Can be printed on any kind of material parts in any graphic and Chinese and English characters, any editor to adjust the size of the characters, with automatic print date and water code, VIN code. Communication networking; Worktable with precision mold casting, 64 subdivision drive, imported linear guide, high-precision stepper motor high reliability. Applications: Suitable for all kinds of metal and non-metallic plane direction automatic marking.

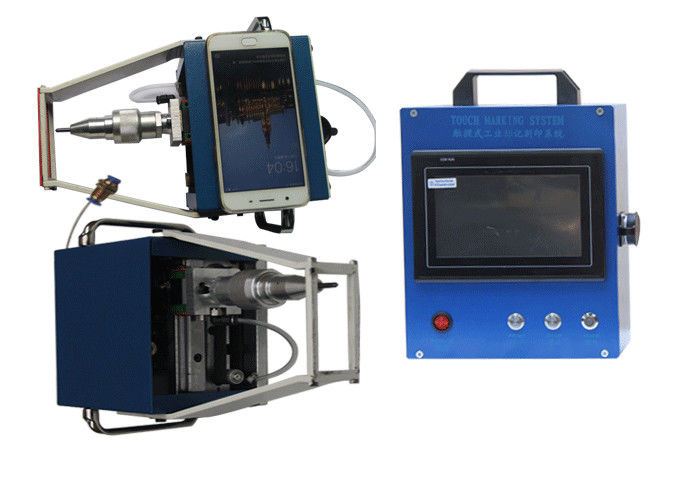

Portable Dot Peen Marking Machine parameter
| model | Pneumatic marking machine |
| weight | 20kg |
| Machinpower | <300w |
| Power supply | 220v/110v |
| Strokefre quency | 300times/s |
| Marking speed | 2-5 characters(2x2mm)/s |
| Marking depth | 0.01 to 1mm (Vary to the material) |
| Standard marking area | 80x40mm,130x30mm,140x80mm,200x200mm |
Usage method
1. Handover problems: The work should be completed, the CD-ROM, spare marking needles, manuals, "marking content" folder and spare folders, steel marking machine Which is good, marking editors, methods of operation and matters needing attention to complete the transfer Until the church.
2. Wiring safety: If you change the position of the machine, turn off the computer and the controller before the change, and remove the wiring before changing position.
Product features
Software system developed by our factory, developed marking control software system.
a, optimized stepper motor algorithm.
b, can edit, modify and print any Chinese characters, Arabic numerals, graphics, graphics support cad software features.
c, the standard windows design style, the software can run in windows xp / 2000/98, the nameplate pneumatic marking machine price, the software has a friendly man-machine dialogue function, easy for operators to quickly grasp.
d, vin, serial number and date of the custom print.
e, a unique print on the needle and automatic printing system.
f, management-friendly print artifact counter.
FAQ
Typing is not standard
cause of issue
Marking machine marking crooked characters are missing or trailing strokes, in particular, "0" and "8" can not be sealed.
Check the print software switch gas delay parameters.
The correct switch gas delay parameters: gas 2 off gas 6
Note: The printed material can also affect the print result.
Such as: copper, aluminum, plastic and some other soft materials, due to the characteristics of the material itself caused the above problems.
Due to the depth of the print too fast, print speed is too fast causing the above problems.
Note: You can reduce the pressure regulator output pressure, adjust the print depth, lower print speed to solve the above problem
Tooling, the workpiece is not fixed well.
Note: When using the tooling must be fixed tooling and workpieces.
Design feature
Can be customized large nameplate fixtures. There are circumferential fixtures, pneumatic stamping code metal stamping, circumferential fixture for diameter 200MM, weight 20 kg parts, pneumatic stamping code prices, if it is a large workpiece can choose horizontal rotary marking method , We do a lot of clamping parts is 500MM-1000MM, the weight of 100 kg can be marked below the circumference.
After service
If the products provided by the company to the customers are already in use or installed, there are product quality problems or service problems, the products are dealt with in accordance with the after-sale treaties of the company's products and the unscheduled maintenance is carried out to ensure that the products of the company run accurately and smoothly at the customer's site to meet the customers' actual conditions Demand, continue to enhance customer satisfaction.
Packing and shipping
Only one mantissa box is allowed after each batch of product is packed. That is, the number of packages per batch only allows one decimal.
| Delviery time | 7-15 working days |
| Type of shipping | Express,air or sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 45*45*55cm |
| Gross weight | 22KG |
