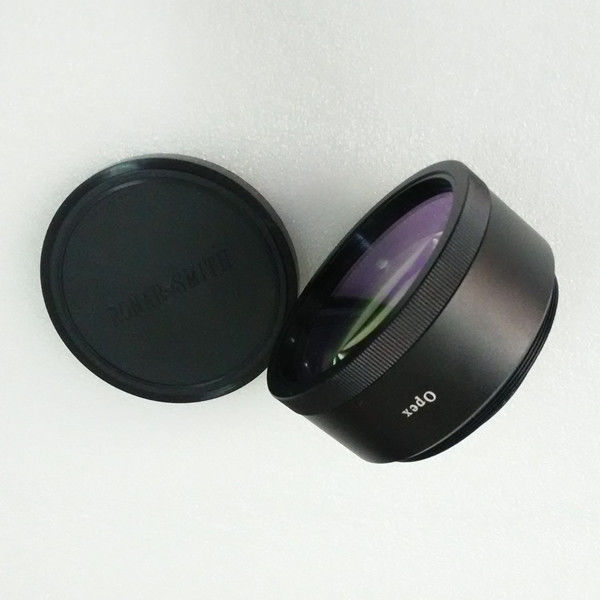

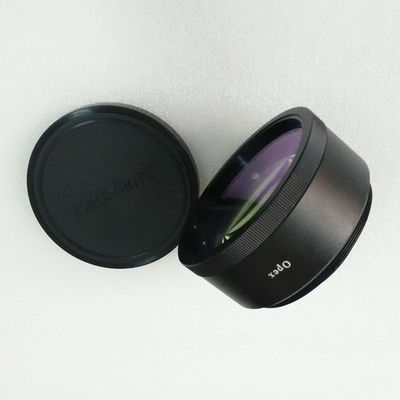

Bochang Brand Name Fiber Laser Marking Machine Lens For Focusing

Good Perfomance Fiber Laser Marking Machine Lens For Focusing

Working principle

1. Improve the ability of the edge beam to incident to the detector.
2, in the same main optical system, the additional field lens will reduce the area of the detector. If we use the same detector area, we can expand the field of view and increase the flux of incident.
3, the non-uniform illumination on the photosensitive surface of the detector can be homogenized.

Application

Field mirror is mainly used for laser beam focusing machine focused on the laser marking machine is an indispensable accessory, widely used in laser marking machine assembly.

Usage method

Install it on the laser marking machine

Product feature

The field mirror can be divided into f-theta lens and far center lens. Because the cost and cost of the far heart lens are very high, the F-theta lens is mainly used in the laser marking machine used in industry. Without deformation, the location of the focus depends on the focal length of the lens and the tangent of the deflection angle. The location of the focus depends only on the focal length and the deflection angle, which simplifies the calculation method of the focus location.

FAQ

How to choose the laser marking airport mirror suitable for yourself, and what factors should be paid attention to the lens selection of the laser marking machine?
The common lens in the laser marking machine are 50*50, 110*110, 160*160, 220*220, 300*300, 500*500 and so on. How to use different lenses is actually how to choose different focal length. There are several factors that decide the size of the specific object, the size of the marking range, the degree of refinement and the overall matching of the equipment.

Design feature

increase the ability of edge beams to enter the detector;(2) In the same main optical system, the additional field mirror will reduce the detector area. If you use the same detector area, you can expand the field of view, to increase the incident flux;
(3) The modulation plate can be placed out of the image plane to solve the problem that the modulator is nowhere to be placed.

Product features

High precision and high transparency of the field mirror with the optimization of laser beam quality characteristics, on the contrary, if the choice of low-quality field mirror will damage the beam, making the marking quality is not good, fuzzy and so on.

Packaging & Shipping

The transportation of goods shall comply with the relevant provisions of the relevant transportation department (road, rail, sea and air). Shipping, the goods should be configured to balance, ceramsite sand production line should not be emphasis on one or one end, if necessary, take counterweight measures. When loading, pay attention to the contact area between small parts and body parts with small weight. Such as the anvil may be set weight. Set heavy parts should take measures to increase the contact area of the carrier and the body.

Chuke Factory

Zixu Machinery Factory specializes in producing laser marking machine and provides all kinds of marking machine accessories.Developing, developing and producing marking products occupy the leading position in the same industry in terms of output, quality, variety, product coverage and equipment reputation, Create a good economic and social benefits.The company relies on science and technology plant, with strong financial and technical strength, in product design, technology, production, quality inspection, marketing, and so has a number of years engaged in professional, profound knowledge, skilled, practical experience of senior engineering and technical personnel And managers.Companies carry forward the "unity, pragmatic, hard work and innovative" spirit of enterprise, "honesty, compassionate Boli" business philosophy, "

After-sales Services
Training how to instal the machine parts, training how to use the machine.
.
