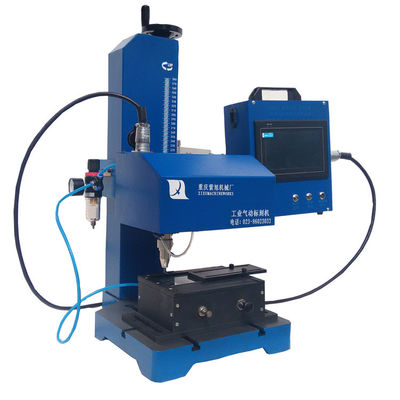

HRA93 Cnc Pneumatic Marking Machine Powerful Function Qr Code Tag Plate

Principle:
 Hybrid marking machines are designed based on Pneumatic technology addressing high speed marking. Pneumatic marking machines has faster operational time. With its Dot Peen marking technology user can achieve higher accuracy. The advanced technology take up Vibro Marking machine at highest precision of marking. This is the perfect choice for consistent depth of marking on large number of components. A special stylus provided with vibro marking machine, that marks upto 0.8 mm in soft steel component. Our pneumatic marking machines are popular in all application areas that requires much faster and deep marking. The complete marking machine with built in electronics based on the most stable Ethernet Port, Suitable for 24 * 7 working . Requires computer with LAN port or connect the machine in wireless router. Requires compressed air supply for working. Versatile and suits most direct part marking applications

Application:
The marking was supposed to be done on inside surface of a ball. The surface was cylindrical in shape… just like doing marking on wall of the hole.
Solution: We had to put an extension on the marking machine so that the marking stylus could protrude out of the marking machine. Then a dotted type stylus was used to take care of the irregular surface on the inside of the ball. The marking which also involved a logo was done very effectively using this trick.

Portable Dot Peen Marking Machine parameter



Usage method

First connect the air compressor, adjust the pressure to 0.2mpa-0.6mpa, connect the 19 core plug line, connect the power line, open the software and use it.
Product features

Pneumatic marking machine for general desktop products is small, light weight 20 kg easy move parts, also can choose manual fixture and nameplate nameplate with pneumatic clamp, purple nameplate standard fixture is in the range of 140*80MM, you can customize the large circle and nameplate fixture. Fixture fixture for circle diameter 200MM, weight 20 kg of parts, if large workpiece can choose horizontal rotary marking method, the maximum loading and clamping parts we do is 500MM-1000MM, weight 100 kg can be circular marking.
FAQ

What is the right mark for a famous brand? We usually use 2mm or 3mm marking needles to make famous brands, and the printing effect is exquisite.
Design feature
Accessories that comes with marking machine is the next big thing. User can create complete automatic systems using them. Manual nameplate clamping device, Pneumatic nameplates clamping device are included in accessories. It has fully customized auto nameplate feeder application already developed for automated process. With Penumatic and Electric marking machines there are other variants too. It is available as a 3 axis machine with either a rotary device to mark on circumferential components or motorized Z axis machine to adjust heights based upon component thickness.

After service

We can provide the main component for each marking machine, because we do not have the maintenance department at overseas . You can send back the problem spare parts to maintenance or replacement the new spare parts for your marker.
We depend on our domestic reputation and customer satisfaction to succeed. Therefore, your feedback is extremely important to us.
Packing and shipping
Packaging Details
Plywood case
Delivery Time
3 days(depends on your quantity request)
