Product Details:
Payment & Shipping Terms:
|
Marking Speed: | 2-5 Chanracters/s | Marking Deepth: | 0.01-1mm(vary To Material) |
---|---|---|---|
Application Material: | Silver,gold | Controller: | 7"LCD Touch Screen |
Software: | Insert ThorX6/ThorX7 | Product Name: | Easy Operation Product Data Small Workpieces Hand Held Etching Machine |
Marking Area: | 140x80mm | Marking Materials: | Above HRC60 Need Special Stylus |
Repeat Accuracy: | 0.02-0.04mm | Power: | 300w |
High Light: | pneumatic engraving machine,laser printing machine |

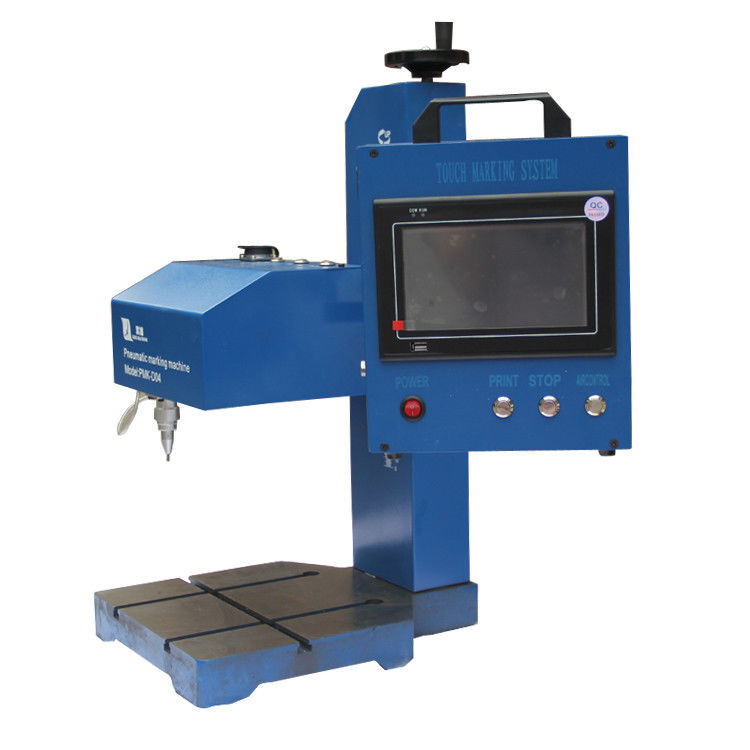

Easy Operation Product Data Small Workpieces Hand Held Etching Machine
Principle:
Print the content into the computer, the computer processed into data and lost control signal to the controller, the controller controls the print pin in X-Y two-dimensional plane by a certain trajectory, while the print pin under the action of compressed air for high-frequency micro-impact movement, Thus printing beautiful marks on the workpiece. The printing method is tracing printing
Application:
Pneumatic industrial marking printers are mainly used in machinery, automobiles, motorcycles and other fields, the automotive, motorcycle parts and other mechanical products for printing.
Portable Dot Peen Marking Machine parameter
model | Pneumatic marking machine |
weight | 20kg |
Machinpower | <300w |
Power supply | 220v/110v |
Strokefre quency | 300times/s |
Marking speed | 2-5 characters(2x2mm)/s |
Marking depth | 0.01 to 1mm (Vary to the material) |
Standard marking area | 140x80mm |
Usage method
1 Press the back panel shown above, the computer system cable, the power connection;
2 one end of the control cable that is 19-core aviation plug with the back of the electric control box 19 core connector, the other end with the host 19 core connector;
3 Use Φ8 trachea to connect the pneumatic parts of the marking machine with the air source of the factory; 4 Start the computer; 5 Turn on the power of the control box;
6 according to the instructions of the software manual (or press the software interface prompts) enter the correct print content; 7 workpiece positioning, marking.
Product features
Under normal circumstances, the pressure is set to 0.5MPa (general workpiece) or 0.2-0.3MPa (aluminum or nameplate). In the case of certain pressure, usually adjust the distance of the print pin to achieve different depths. You can achieve this by moving the handwheel up and down to print the mechanism.
FAQ
What is the right mark for a famous brand? We usually use 2mm or 3mm marking needles to make famous brands, and the printing effect is exquisite.
Design feature
Generally speaking, the softer the material, the darker the printing is; the closer the printing needle is from the surface of the workpiece (greater than the minimum distance), the deeper the printing is; the lower the pressure is The higher the print, the darker it is; the slower the print speed, the deeper the print.
After service
1. We sell the whole one year warranty, life-long maintenance;
2. Free installation, debugging my company sold products;
3. Free training for the use of operators, maintenance staff;
4. Free equipment upgrade software;
Packing and shipping
Packaging Details
Plywood case
Delivery Time
3 days(depends on your quantity request)
Delviery time | 7-15 working days |
Type of shipping | Express,air or sea |
Terms of payment | T/T,credit card,,paypal |
package size | 45*45*55cm |
Gross weight | 22KG |
Chuke Factory
Chuke Machinery Factory was established in 2006, before my company staff have many years of machining experience, so initially I was established in the production of marking the needle business, with the customer's needs, our company has gradually achieved business expansion , So far the company's technology has been in the forefront of domestic counterparts, customized business reached a new level, both pneumatic marking machine or laser marking machine have been recognized by customers, marking needle is occupied the vast domestic market Part of the market. Our products have been certified by world famous quality system, including: ISO, CE, PDA, TUV and so on. Recently, the company is capturing new technical problems and providing brand new services to customers with higher requirements. Our products are completely free within the warranty period of repair and replacement, the warranty period only charge a cost, at any time to solve the urgent needs of customers, in order to solve customer needs for the purpose. No matter where you are, we can serve you.
