Product Details:
Payment & Shipping Terms:
|
| Product Name: | Shift Codes Laser Engraving Machine | Laser Wavelength: | 1064nm |
|---|---|---|---|
| Marking Range: | 110x110mm | Marking Speed: | 7000mm/s |
| Control Interface: | Standard USB Port | Application Material: | Plastic |
| Laser Power: | 30w | Application: | Beverage Packaging |
| Service: | Establish User Files | Profit Model: | Wholesale |
| Support Graphics Formates: | Barcode | ||
| High Light: | laser marking equipment,co2 laser engraving machine |
||

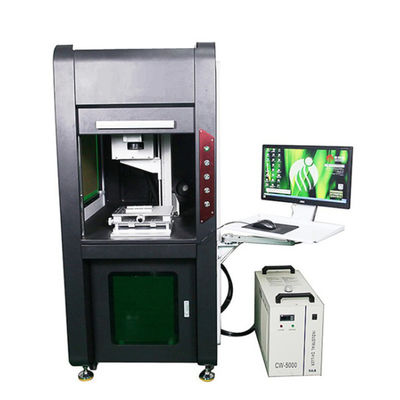

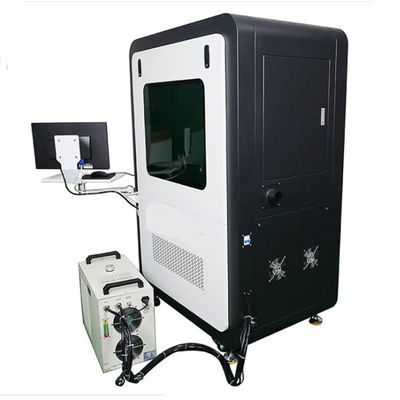

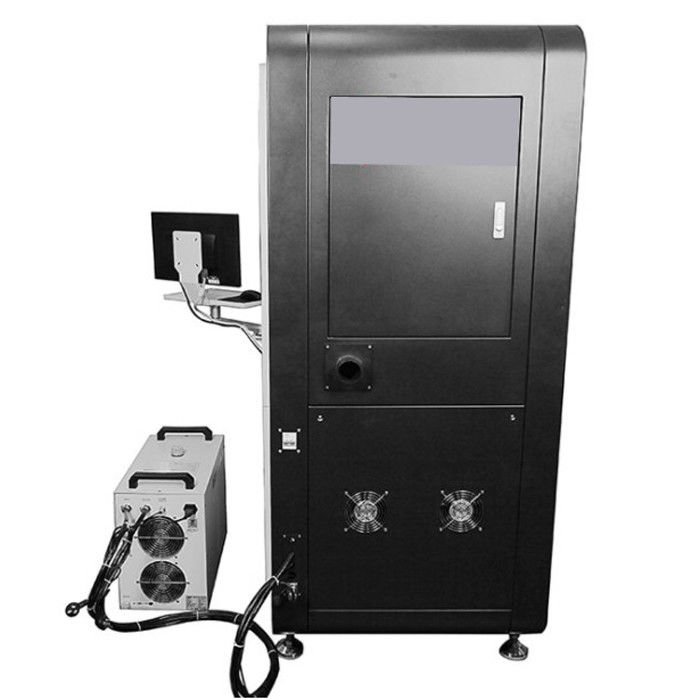

Marking Shift Codes Laser Engraving Machine For Wood And Acrylic
Working principle
CO2 laser source is with CO2 gas as medium, makes CO2 gas and other auxiliary gas into the discharge pipe and high pressure on the electrode, the glow discharge is generated in the discharge tube, the gas release wavelength of 10.64um laser, the laser energy is amplified by galvanometer scanning and F-Theta mirror focus, controled by computer , then marking image, text, figures and lines on the workpiece according to the user's requirements
co2 laser marking machine parameter
| Model number | CO2 laser marking machine | |
| Laser power | 15w/30w | |
| Maximum speed | 7000mm/s | |
| Graphics formats | PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO.DXF | |
| Quality of light plate | M2<2 | |
| Power stability | (8h)<+-1% rms | |
| Pulse repetition frequency | 20KHZ-60KHZ | |
| Power | <800w | |
| Minimum line width | 0.1mm | |
| Minimum character | 0.4mm | |
| Laser wavelength | 10.6um/10.2um | |
| Marking size | 100x100/175x175/300x300mm | |
| Cooling method | Air cooling | |
| Working voltage | 110/220v+-10%,50/60HZ |
Application
It is suitable for marking the largest number of non-metallic materials, such as paper packaging, plastic products, label paper, leather cloth, glass ceramics, resin and plastic, bamboo and wood products, PCB board and so on.
Usage method
1,The shell should be connected to the ground line, and the power line is single phase three line.2.The power supply is cut off and the high voltage discharge is carried out in order to ensure safety.
Product features
CO2 laser Source is used as a general type,Post focusing, the volume is small and the degree of integration is high.
FAQ
There are dust in the machine in the machine, and the moisture is too high and the air is corrosive. Check: observe the discharge point in the dark. Treatment: remove dust, water and other things, change the working environment.
Design feature
The continuous burning fuse is usually short circuited in the machine and there is a serious dirt in the machine. Check: check the line step by step, and there is a short circuit for the high pressure part. Treatment: repair short circuit, remove dirt.
Packing and shipping
Packing by wooden case, packing size,for desktop model:95*80*122cm,more security delivery with heavier weight and higher freight
| Delviery time | 7-15 working days |
| Type of shipping | Express,air or sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 95x55x83cm |
| Gross weight | 188KG |
