Laser Welder Australia Metal Welding and Fabrication Soldering Machine Automatic

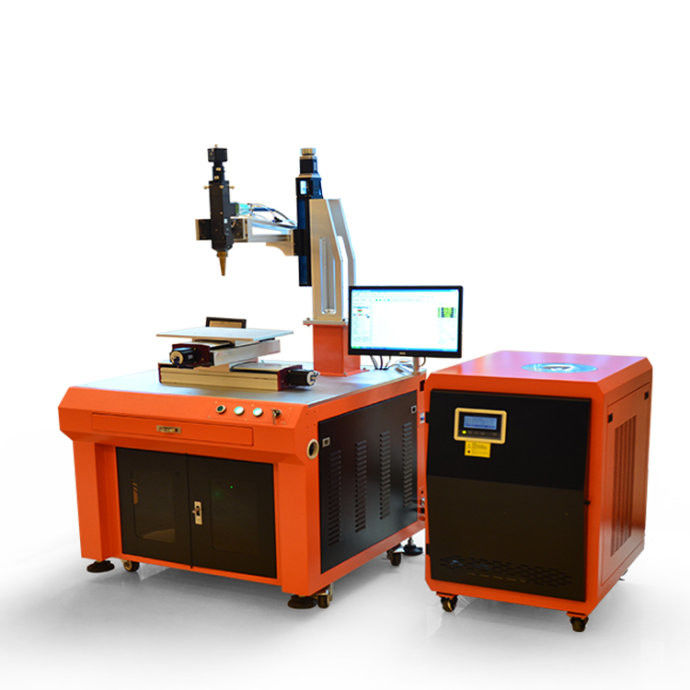

Automatic Fiber Laser Welding Machine Description
Continuous automatic fiber laser welding machine wins global users with its precise welding process, high cost performance and perfect after-sales service.
The products are sold all over the world, customer satisfaction is 100%, because the solder joints after processing are extremely fine and smooth. Beautiful, once praised by customers: "The welding process is seamless."
Automatic Fiber Laser Welding Machine Application
1. Bathroom industry: water pipe joints, reducer joints, tees, valves, stainless steel shower.
2. Spectacle industry: glasses, stainless steel, titanium alloy and other materials, precise welding of the outer frame.
3. Battery industry: lithium battery, battery pack, electric vehicle battery box, gas battery sealed case, sensor, diode, electrode laser welding.
4. Electronic industry: MP3/MP4 shell, keyboard, motherboard screw soldering, USB data cable, notebook and other structural parts can be laser welded.
5. Hardware industry: impeller, kettle, water cup, hip flask, stainless steel bowl, aluminum alloy, door handle, mixer, shelf, complex stamping parts etc.
6. Welding of copper parts, aluminum parts, casting parts.
Automatic Fiber Laser Welding Machine Specification
| Average Output Power |
750w |
| Max Pulse Energy |
7.5J |
| Laser Wavelength |
1064nm |
| Repeation Frequency |
0~5000 |
| Laser Welding Depth |
1.5mm |
| Pulse Width |
0.5~50ms |
| Welding Speed |
4.5m/min |
| Power Consumption |
300W |
| Cooling Type |
Water Cooling |
| Positional System |
Red light or CCD |
| Power Supply |
220V/60Hz |
| Working Environmental Temperature |
10~35℃ |
| Operation Temperature |
≤95% |
Automatic Fiber Laser Welding Machine Advantages
1. The automatic fiber-optic welding machine subverts the working mode of the previous laser welding machine, and it is flexible and convenient to handle by hand, and the welding distance is longer.
2. Replace the previously fixed optical path with a hand-held torch. This mode of operation not only facilitates the welding of molds, advertising characters, kitchen utensils, etc., but also makes laser welding possible in outdoor operations.
3. With automatic focusing and rotating function, it can weld products of any shape in 3D space.
4. High production efficiency, fast welding speed, automatic mass production / tailor-made integrated water
5. Can be welded, straight, circular, elliptical arc, square and other plane arbitrary track, four-axis automatic platform suitable for a variety of shaped workpieces.
6. Using the latest DSP control system, it is more stable, and the software operation is simpler, which meets the requirements of large stroke and the welding of complex products.
Automatic Fiber Laser Welding Machine Features
1. The welding head is equipped with five meters of imported optical fiber, which is flexible and convenient, and can realize outdoor welding.
2. The operation mode of the hand-held welding torch can realize the welding of any part of the workpiece at any angle.
3. Intelligent switching of dual optical paths, evenly distributed time-divisional energy.
4. Suitable for all kinds of complex welds, spot welding of various devices.
5. CCD camera monitoring system for easy observation and precise positioning.
