Pneumatic Cnc Dot Peen Marking Systems Metal Engraving Flange Marking Machine

China Pneumatic Cnc Dot Peen Marking Systems Metal Engraving Flange Marking Machine supplier
Pneumatic Cnc Dot Peen Marking Systems Metal Engraving Flange Marking Machine supplier Pneumatic Cnc Dot Peen Marking Systems Metal Engraving Flange Marking Machine supplier Pneumatic Cnc Dot Peen Marking Systems Metal Engraving Flange Marking Machine supplier Pneumatic Cnc Dot Peen Marking Systems Metal Engraving Flange Marking Machine supplier Pneumatic Cnc Dot Peen Marking Systems Metal Engraving Flange Marking Machine supplier

Large Image :  Pneumatic Cnc Dot Peen Marking Systems Metal Engraving Flange Marking Machine

Product Details:

Place of Origin: China(mainland)
Brand Name: Chuke
Certification: FDA,CE,ISO
Model Number: PMK-A01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1000-3500 per set
Packaging Details: Packing in wooden
Delivery Time: after payment 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Marking Pin: 110mm Name: Flange Engraving Machine
Service: One Years Wattary Feature: High Quality
Marking Product: Metal Type: Pneumatic
High Light:

handheld dot peen marking system

,

dot peen engraver



Cnc Metal Flange Marking Machine Dot Peen Metal Flange Engraving Machine



Product quick detial

Pneumatic Cnc Dot Peen Marking Systems Metal Engraving Flange Marking Machine

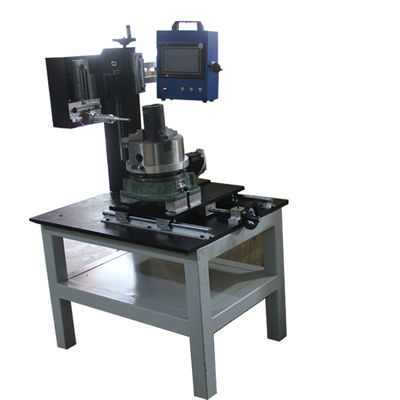

1.Pneumatic rotary marking machine is often used for some products to make the circumferential

surface, so Chuke marking machine company is equipped with a rotating fixture on the basis of

the pneumatic marking machine. The pneumatic marking machine and the rotating fixture are

synchronized.

Pneumatic Cnc Dot Peen Marking Systems Metal Engraving Flange Marking Machine

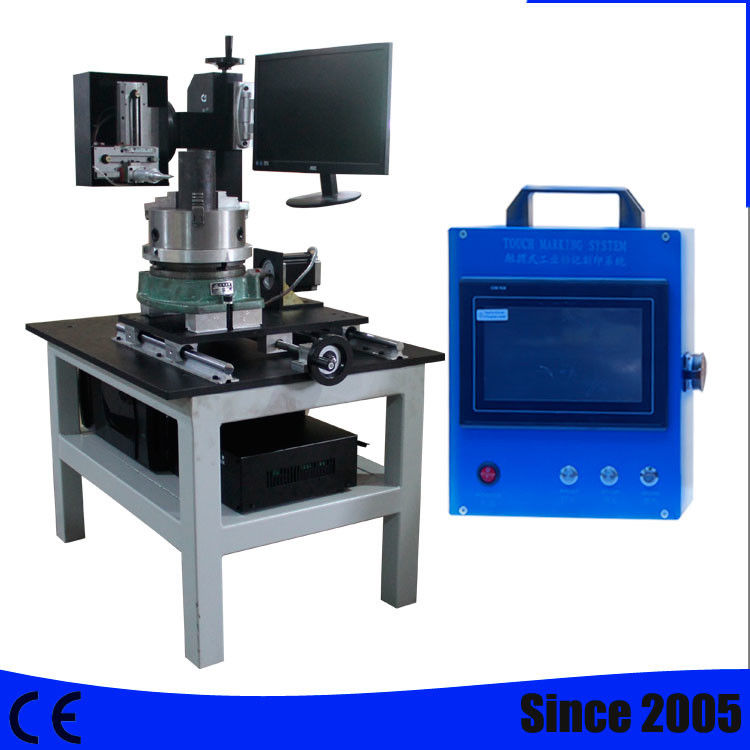

2.The pneumatic rotary marking machine belongs to the standard type of circumferential surface

marking in the Chuke marking machine. It adopts the standard printer parallel interface technology

and adopts the vertical lifting head with the circumferential surface fixture.


3.In addition to the plane function, the marking machine also It is possible to perform printing on

a circumferential surface or a circular cross section for a workpiece having a weight of not more

than 10 kg and a clamping diameter of not more than 100 mm.

Pneumatic Cnc Dot Peen Marking Systems Metal Engraving Flange Marking Machine





Model Flange Engraving Machine
Working Area 140*80(L*W) 80*40(L*W) 120*50(L*W)
Marking Speed Range 10-100words/min(Adjustable)
Marking Depth Range 0.05-1.0mm(According to the materials)
Unit power ≤ 200W
Power 220V/50HZ/10A

Compressed Air Pressure

Required

0.4-0.8Mpa



System Functions

Character inputting, editing ,marking. VIN code automatically

calculating, set, marking. Serial number setting, automatically

increasing,marking. Tag data query, reporting, printing.

Characters, Graphics, Chinese characters editing.

Marked Font Size Arbitrary Adjustable
The Content of Mark Character

0-9 figures, A-Z large, lower case letters, graphics,

characters ( Users can be random homemade)

Working Voltage 220V 50Hz ± 10 %
Machine Consume Power ≤ 200W
Working Environment Temperature: 0-45℃ Humidity: ≤ 80 %



Product description



Flange pneumatic marking machine is a flange-to-marking machine designed according to the

requirements of flange marking. This equipment is simple and quick to operate. It is the preferred

choice for flange marking. Flange pneumatic marking machine price and customization, more

information is welcome to display information, our company will provide you with professional

design solutions.





Product advantage



The special pneumatic marking machine for flanges has adjustable printing direction and is used

for large workpieces. Special fixtures are designed according to customer needs.

With the marking of the workpiece, the workbench can be customized to make the equipment

beautiful and beautiful and the factory environment.

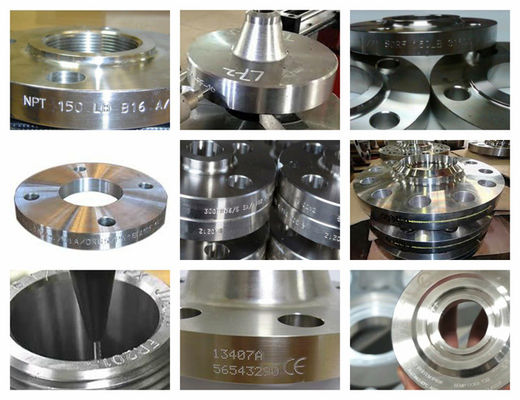

Flange marking machine can print any graphic and Chinese and English characters on

various materials, edit and adjust the character size, and automatically print the date and

serial code, VIN code.Communication network can be connected; the workbench is made of

precision mold casting, 64 subdivision drivers, imported linear guides and high precision stepper

motors with high reliability.



Type parameters



1, computer system: winXP special system, built-in special software;



2, marking size: 160*80mm, 150*70mm, 140*70mm, 200*100mm, 140*30mm, 120*30mm;



3, marking the contents: Chinese and English words, figures, graphics, code, symbols, etc.;



4, marking depth: 0.01-2mm (according to material settings);



5, marking speed: 3-8 words / minute;



6, work power supply: 220V/50HZ;



7, working air pressure: 0.2MPA-0.6MPA;



8, rated power: <300W;

Pneumatic Cnc Dot Peen Marking Systems Metal Engraving Flange Marking Machine
