Qr Code Mini Fiber Laser Marking Machine 20w / 30w / 50w For Metal Spare Parts

Good quality Fiber Laser Marking Machine for sales
Good quality Fiber Laser Marking Machine for sales
We bought the laser marking machine.it is good quality. Hope CHUKE have the good bussiness all the time

—— Alfanar Electrical System

We bought the laser marking machine.it is goog quality. Hope CHUKE have the good bussiness all the time

—— Alfanar Electrical System

Chuke have been working with us for over 10 years. They provide us with accessories for marking machines, so that our machines sell well in India.

—— EtchON Marks Control

We have already bought second laser marking machines at the beginning, which is compatible with our assembly line operation, fully automated marking, fast, safe and efficient marking.

—— Ford Company

I'm Online Chat Now

Qr Code Mini Fiber Laser Marking Machine 20w / 30w / 50w For Metal Spare Parts

China Qr Code Mini Fiber Laser Marking Machine 20w / 30w / 50w For Metal Spare Parts supplier
Qr Code Mini Fiber Laser Marking Machine 20w / 30w / 50w For Metal Spare Parts supplier Qr Code Mini Fiber Laser Marking Machine 20w / 30w / 50w For Metal Spare Parts supplier

Large Image :  Qr Code Mini Fiber Laser Marking Machine 20w / 30w / 50w For Metal Spare Parts

Product Details:

Place of Origin: China,Chongqing
Brand Name: Chuke
Certification: CE,FDA,ISO9001
Model Number: FIMM-B01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 3500-9500/Set
Packaging Details: 75x55x83 cm wooden case
Delivery Time: 3-8 days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Colour: Blue Material: Stainless Steel
Marking Content: Date Matrix Marking Area: 100X100Mm
Laser Power: 30W Product Name: Laser Etching Machine
Used Industry: Stainless Steel Brand: Raycus
Service: Can Customize Language: English
High Light:

fiber laser marking system

,

fiber laser marker

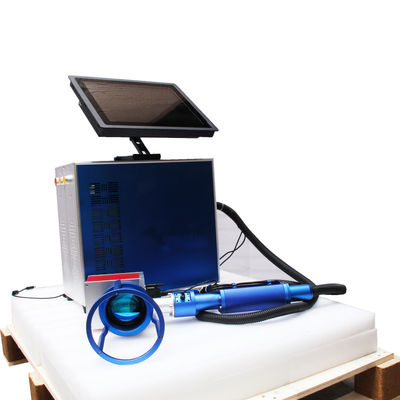

Portable Qr Code Mini Laser Engraver 20w / 30w / 50w For Metal Spare Parts



1.good marking results
This machine can meet user requirements of the various elaborate patterns in the tiny surface
2.high rate of electrical-optical conversion
No power coupling loss,saving operating costs,the laser device has 100000 hours life time,maintenance-free and no consumables.

3.high speed high efficiency
It significantly improves the marking quantity at the same time,
Accelerate user,s return of the investment

4.Integrated structure
No power coupling loss,saving operating costs,the laser device has 100000 hours life time,maintenance-free and no consumables.



Mini laser engraver for metal parameter



Laser power

30W
Laser Wavelength 1064nm
Light beam quality <2
Repeating precision ±0.002
Marking range 110x110mm(customize)
Marking depth 0.01~1mm
Marking speed 7000mm/s
Minimum character 0.15mm
Minimum line width 0.01mm
Repeating frequency 20KHz~30KHz
Marking content

Graphics, text, bar codes, two-dimensional code,

date, batch number, serial number

Graphic format supported bmp,png,ai,dxf,dst,plt



220V±10%/50Hz/4A
Size 570mmx270mmx200mm
Gross Weight 65kg
Control interface standard USB port
Laser module life 100000~200000 hours

Application

1.A widely selectivity of operating wavelengths,ultra-low amplitude noise,high stability and ultra-long lifetime.
2.Ezcad control system with stable performance and high reliability.more than 10000 sets of equipment are using ezcad control card ,shield -utilizing parts of complex functions,ensuring higher stability.
3.red light pointer
Adopt red light pointer to show the laser path since laser beam is in-visible.

4.lifting handle
Can adjust the distance between the marking head and object ,makes the marking easily .the standard distance of elevating is 400mm,it can be customized.

5.Ruler scale
Helps user to adjust position the height of different marking object .then,user can positioning and find it easily next time.

6.Portable handle

Easy to held the machine
Easy to held the machine by hand.



Aluminum canning operations are among the fastest packaging lines in the world and require specialized equipment. Metal cans are widely used with shelf-stable foods and when products require retorting, specialized color-change inks serve as a visual quality control indicator that the products have successfully completed the process.

offers printing solutions to match the demands of these applications, including ultra high speed printer options. Coupled with a comprehensive range of high speed and thermochromic inks, Videojet brings over 40 years of canning application expertise to our customers. In addition, high powered fiber lasers offer unique mark options for specific metal canning applications..



FAQ



Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.



Design feature



Laser processing energy density, time is short, heat affected zone is small, small thermal deformation, thermal stress, will not affect the internal electrical performance





Product features



Low-cost supplies, pollution-free, energy saving, in line with European environmental standards, in line with GMP requirements of the pharmaceutical industry. Processing costs low. One-time investment in equipment is more expensive, but continuous, extensive processing ultimately reduces the processing costs per part.





Packing and shipping



Packing by corrugated board boxes, Light weight, freight is lower, we, supply by air more fast for shipping



Company information



Chongqing zixu machine works is a professional manufacturer of industrial laser equipments, . Since 2006, zixu focused on the development and production of various types of laser machinery and CNC equipments.

Our products include laser engraving machine, laser cutting machine, laser marking machine, laser welding machine, die board laser cutting machine, 3D lser engraving machine, dot peen marking machine, inkjet printer, etc.. More than 20 series, 300 types, certificated by CE, ISO9001:2000, have exported to more than 180 countries.

Our machines are featured by high precision, low energy consumption, automatic processing, little environmental pollution, which play an important role in more and more fields, such as industry, electronics,hardware, advertising, furniture, telecommunication, jewelry, food, clothing, shoes,etc.
