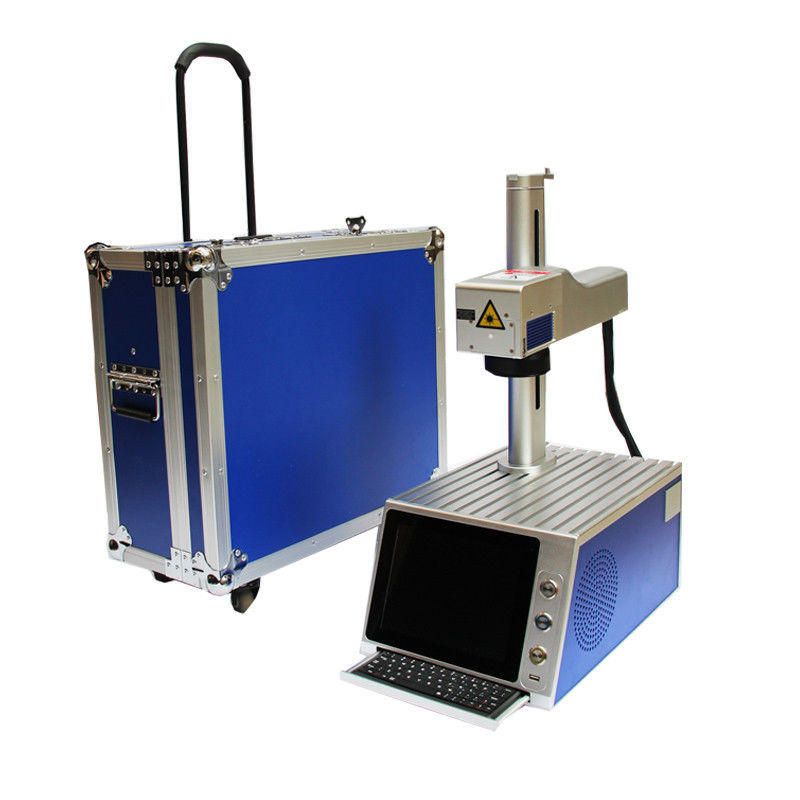

Galvo Head Mini Laser Engraver Etching Machine For Metal , Energy Saving

China Galvo Head Mini Laser Engraver Etching Machine For Metal , Energy Saving supplier
Galvo Head Mini Laser Engraver Etching Machine For Metal , Energy Saving supplier Galvo Head Mini Laser Engraver Etching Machine For Metal , Energy Saving supplier

Large Image :  Galvo Head Mini Laser Engraver Etching Machine For Metal , Energy Saving

Product Details:

Place of Origin: China
Brand Name: chuke
Certification: CE/ISO9001/FAD/SGS
Model Number: FLMM-B01

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 2600-2700usd
Packaging Details: Wooden box, 188kg, 95*81*122cm
Delivery Time: 7~10 work days
Payment Terms: T/T, , L/C
Supply Ability: 100 set/month
Contact Now
Detailed Product Description
Name: Portable Laser Engraver Power: 20w
Laser Source: Raycus Machine Type: Portable
Software: Ezcad Marking Material: Metal
High Light:

laser marking device

,

metal marking equipment



Galvo Head Mini Laser Engraver Etching Machine For Metal , Energy Saving



1.Product quick detial

1.Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery. It is small design and the complete weight is 22kg.
2. High Precision: Re-position precision is 0.002mm
3. High Speed: Imported scanning system makes the scanning speed is up to 7000mm/s
4. Easily Operating: Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW or Photoshop.
5. High Reliability: MTBF>100,000 hours
6. Energy Saving: The efficiency of optic-electrical converting is up to 70%
7. Low Running Cost: No wearing part. Free maintaining, no need to adjust the laser path.

2.Product advantage

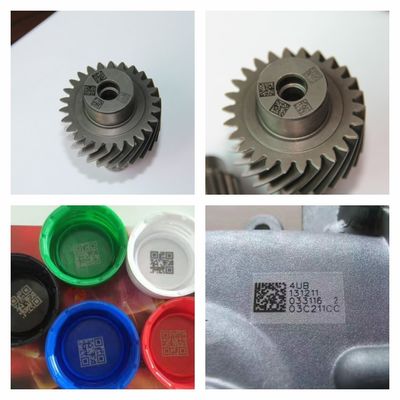

1.good marking results
This machine can meet user requirements of the various elaborate patterns in the tiny surface
2.high rate of electrical-optical conversion
No power coupling loss,saving operating costs,the laser device has 100000 hours life time,maintenance-free and no consumables.

3.high speed high efficiency
It significantly improves the marking quantity at the same time,
Accelerate user,s return of the investment

4.Integrated structure
No power coupling loss,saving operating costs,the laser device has 100000 hours life time,maintenance-free and no consumables.



3.Product description

1.A widely selectivity of operating wavelengths,ultra-low amplitude noise,high stability and ultra-long lifetime.
2.Ezcad control system with stable performance and high reliability.more than 10000 sets of equipment are using ezcad control card ,shield -utilizing parts of complex functions,ensuring higher stability.
3.red light pointer
Adopt red light pointer to show the laser path since laser beam is in-visible.

4.lifting handle
Can adjust the distance between the marking head and object ,makes the marking easily .the standard distance of elevating is 400mm,it can be customized.

5.Ruler scale
Helps user to adjust position the height of different marking object .then,user can positioning and find it easily next time.

6.Portable handle

Easy to held the machine
Easy to held the machine by hand.



4.Facotry

Chongqing zixu machine works is a professional manufacturer of industrial laser equipments, . Since 2006, zixu focused on the development and production of various types of laser machinery and CNC equipments.

Our products include laser engraving machine, laser cutting machine, laser marking machine, laser welding machine, die board laser cutting machine, 3D lser engraving machine, dot peen marking machine, inkjet printer, etc.. More than 20 series, 300 types, certificated by CE, ISO9001:2000, have exported to more than 180 countries.

Our machines are featured by high precision, low energy consumption, automatic processing, little environmental pollution, which play an important role in more and more fields, such as industry, electronics,hardware, advertising, furniture, telecommunication, jewelry, food, clothing, shoes,etc.

Welcome to visit our website at www.cnmarking.com
