Product Details:
Payment & Shipping Terms:
|
| Apply: | Europe | Application: | Chassis VIN |
|---|---|---|---|
| Drive Type: | Electric | Controller: | Touch Screen |
| Software: | Insert ThorX7 | Product Name: | Factory Depth Steel Electic Dot Punching Machine With Big Power Stamping |
| Marking Area: | 130x30mm | Marking Materials: | Above HRC60 Need Special Stylus |
| Repeat Accuracy: | 0.02-0.04mm | Power: | 300w |
| High Light: | pin stamping machine,raycus laser source |
||

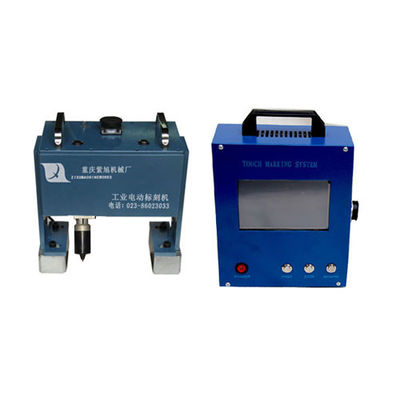

Factory Depth Steel Electic Dot Punching Machine With Big Power Stamping
Working Principle
Electromagnetism marking machine uses electromagnetic as kinetic energy instead of pneumatic high frequency micro impact dot matrix printing.
Application Range
It can be widely applied to automobile bodies, sheet metal parts, nameplates, etc., which need beautiful appearance, no need of gas source and low noise work, especially for the fine marking of high-grade products such as aluminum, copper, electroplating and anodizing parts.
Instructions
The system hints that the character is not in the font library
Check whether the input of special characters and symbols
Check whether there is font
The characters and select the line input character, whether
If the last three items are unmistakable, the description of the font file is wrong, or the character that needs to be printed is not in the defined font, please contact our maintenance staff at this time.
It saves the gas source and reduces the printing noise at the time of work. There is no splash of metal dust in printing.
| Marking area: | 130X30mm(or customized) |
| Marking speed: | 3-5 characters / second (2X2) |
| Software application system: | LCD touch screen |
| Marking depth: | 0.01-1.2mm Adjustable (depending on the material) |
| Accuracy Assurance: | ≤ 0.01 |
| Height adjustment Range: | 10mm |
| Automatic storage: | can automatically store files and print content, 3L / S |
| analog display: | you can directly observe the marking on the screen |
| Print pin impact frequency: | 300 beats / second |
| Marking content: | Chinese and English characters, numbers, graphics (By marking software editing) Graphic |
| Editing: | Serial number (serial number) Automatic printing, storage, weight automatic detection, can identify the bar code |
| Marking material: | all kinds of metal (HRC85 hardness below), all kinds of hard materials Plastic bakelite, etc.) |
| Power: | 300W |
| Working voltage: | 110VAC / 220VAC |
| Delviery time: | 3-15 working days |
| Type of shipping: | Express,air or sea |
| Terms of payment: | T/T,credit card, |
| package size: | 45X45X55cm |
| Gross weight: | 23KG |
| Warranty time: | one year |
Service Content
More peace of mind:
Free shipping, free installation and commissioning, free operation and maintenance personnel training.
FAQ
What are the marking contents?

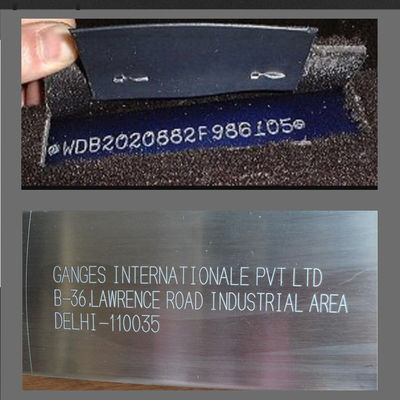

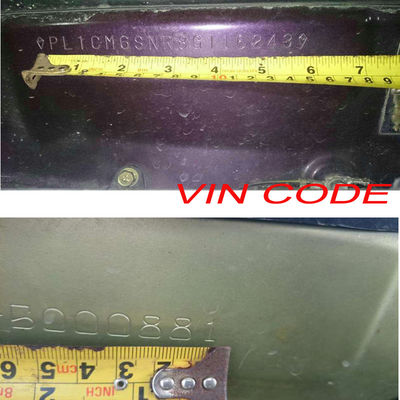

Alphanumeric info, date matrix or dot matrix 2D codes, shift codes, barcode, serial number, date, VIN code, time, letter, figure, logo, graphics and etc.
Design Features
The advantage is the online printing of high hardness metal through a lattice.
The interface lock function, no need to worry about other people to change during the marking process.
Factory Introduction
Chongqing Chuke intelligent machinery equipment Co.,ltd is a subsidiary of Chongqing ZiXu Machine works, is a professional engaged in marking machine design and industrial enterprises. Founded in 2006, covers an area of 2000 square meters. In annual production of 500 sets of laser marking machine,500 sets dot peen marking machine and electric marking machine,more over 100000 pieces marking stylus.Products are exported to all countries in the world,Such as the India, Spain, France, Germany, the United States, Brazil, South Korea and other more than and 30 countries . After we continue to improve and perfect the product quality has been achieved CE, ISO9001, FDA, TUV certificate, won the domestic and foreign large.
We have two types of packing: suit for air and ocean transportation.
Packing by corrugated board boxes, Light weight, freight is lower
Packing by wooden case, more security delivery with heavier weight and higher freight.
Technical training for operation and maintenance personnel; (training content: the principle of equipment installation and debugging and marking machine, composition and common knowledge of computer. The computer programming, the electrical control principle and the daily maintenance of the equipment and so on, and carry on the actual operation. Equipment common troubleshooting training, further familiarity with equipment, answering questions.
