| Marking Pin: | 3mm | Name: | Flange Engraving Machine |
|---|---|---|---|
| Service: | One Years Wattary | Feature: | High Quality |
| Marking Product: | Metal | Type: | Pneumatic |
| High Light: | handheld dot peen marking system,dot peen engraver |
||

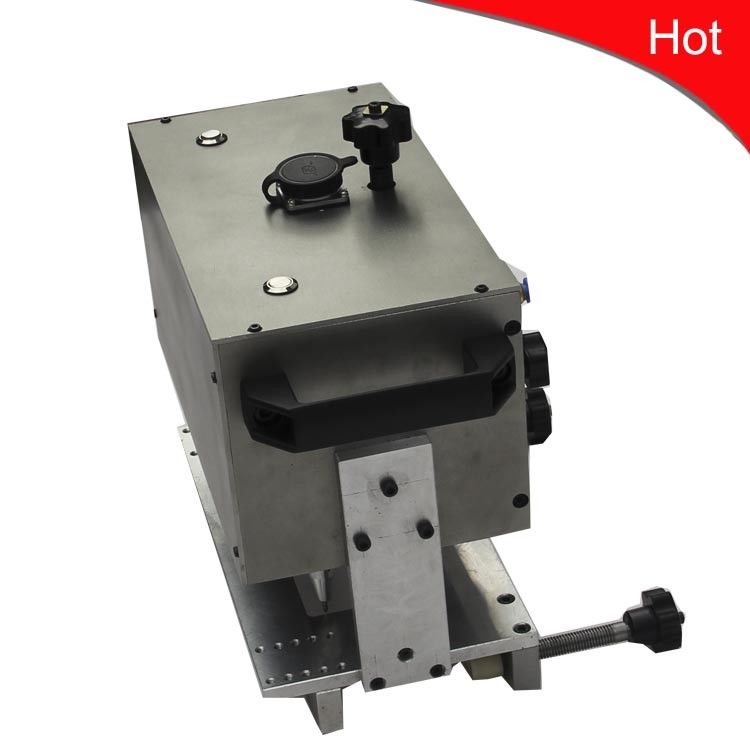

Portable Dot Peen Flange Engraving Machine Marking Machine For Flanges
Product description

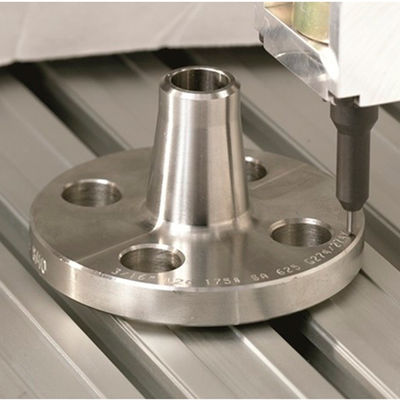

Widely applicable to flanges, larger workpiece end face and circumferential marking, flange
pneumatic marking machine with adjustable printing direction, 360 degree direction can achieve
machine. Using three-axis linkage technology, effectively overcome the problem of large flange
inertia , can design special fixtures and workbench according to customer requirements.
Product advantage
Rich mark content: Users can input and arrange Chinese and English characters, Arabic
numerals, common symbols, and arbitrary graphics.Flange-specific pneumatic marking
machines are available in a variety of marking styles: fixed character, serial number, date,
time, VIN standard, mirror image, arbitrary angle rotation, sector and bar code scanning.
Flange-specific pneumatic marking machine Scope: Suitable for cylindrical workpieces,
flanges, flat and circumferential surface marking of large workpieces
Product quick detial
Printed workpiece diameters up to 300-600mm "out of range can be customized" for a variety
of cylindrical workpieces, such as flanges, pipe fittings. The computer controls the steel needle
to move in accordance with the stroke set by the software in a two-dimensional plane, and
simultaneously uses the compressed gas to make the steel needle perform high-frequency
impact motion, thereby forming a standardized and beautiful character pattern on the marking object
| Model | Pneumatic Marking Machine | ||
| Working Area | 140*80(L*W) | 80*40(L*W) | 120*50(L*W) |
| Marking Speed Range | 10-100words/min(Adjustable) | ||
| Marking Depth Range | 0.05-1.0mm(According to the materials) | ||
| Unit power | ≤ 200W | ||
| Power | 220V/50HZ/10A | ||
|
Compressed Air Pressure Required |
0.4-0.8Mpa
|
||
| System Functions |
Character inputting, editing ,marking. VIN code automatically calculating, set, marking. Serial number setting, automatically increasing,marking. Tag data query, reporting, printing. Characters, Graphics, Chinese characters editing. |
||
| Marked Font Size | Arbitrary Adjustable | ||
| The Content of Mark Character |
0-9 figures, A-Z large, lower case letters, graphics, characters ( Users can be random homemade) |
||
| Working Voltage | 220V 50Hz ± 10 % | ||
| Machine Consume Power | ≤ 200W | ||
| Working Environment | Temperature: 0-45℃ Humidity: ≤ 80 % | ||
FAQ
For all of HBS products, we ensure 12 months warranty against the delivery of the commodities
to the customers;
Chuke third-party technical support and international engineers is available in most of countries.
Chuke carry out 24 hours online free operation traing, trouble shooting and after sales services;
Chuke have strong engineer teams for international door to door after sales services at any time.
