| Name: | Small Fiber Laser Marking Machine | Color: | Blue |
|---|---|---|---|
| Marking Speed: | 7000mm/s | Service: | Good Aftersales |
| Applied Materials: | A Variety Of Steel Materials | Laser Powe: | 30w |
| High Light: | small laser engraving machine,small laser marking machine |
||

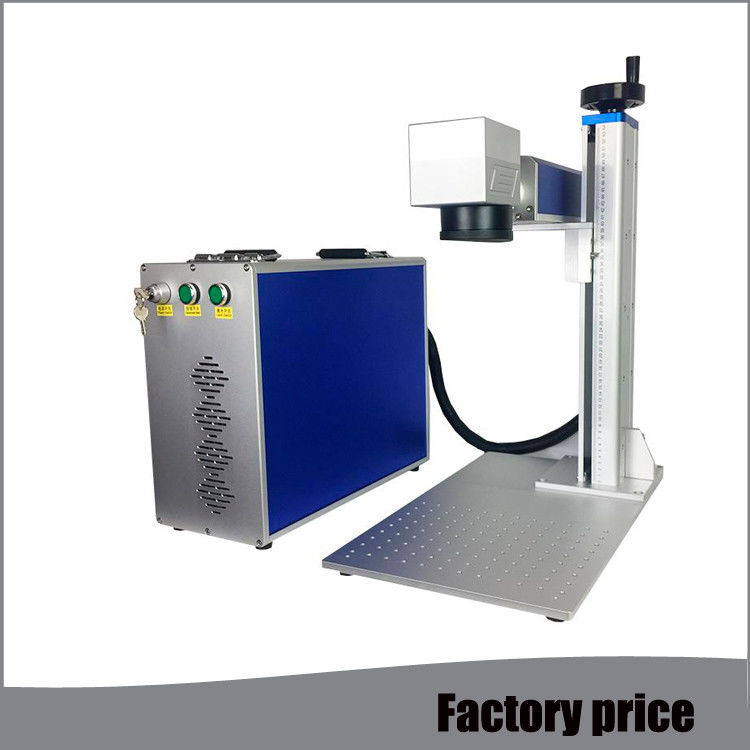

Metal Fiber Mini Laser Marking Machine EZCAD Software Low Power Consumption
Product features
Compact design for ease of intergration
100,000 hours using life
Zero maintenance
Model: Fiber Marking Machine
Applicable materials:Applicable various metal,.alloy and some non-metal materials.
Applicable industry:
Metal,alloy ,oxide,ABS,epoxy resin,printing ink,etc. which are widely applying for electronics,jewelry,automobiles,communication products,plastic buttons,IC,etc.
Parameter
| Type | Fiber laser marking machine |
| Size | 75*55*83cm |
| Gross Weight | 55kg |
| Laser power | 30w |
| Laser wavelength | 1064nm |
| Power supply | 220V±10%/50Hz/4A |
| Repeating precision | ±0.002 |
| Repeating frequency | ±0.002 |
| Marking range | 110x110mm(customize) |
| Marking depth | 0.01~1mm |
| Marking speed | 7000mm/s |
| Minimum character | 0.15mm |
| Minimum line width | 0.01mm |
| Marking content |
Graphics, text, bar codes, two-dimensional code, |
Product description
1. Industrial PC display, stable performance
2. Beijing JCZ software, simple operation
3. 2 Years warranty and lifelong free maintenance
4. Lifelong repair service even out of warranty
5. Support OEM and customized service
6. Portable and desktop type optional
7. Core components are made by own factory, reliable quality and durable
Product applicaiton

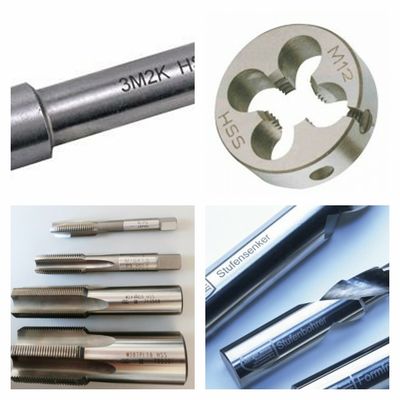

Fiber laser marking machine is suitable for working with most metal marking applications.such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron Iitanium etc, and can also mark on many non-metal materials,such as ABS, Nylon, PES, PVC, Makrolon.
Applicable industries
Electrical Engineering and Electrical part and component
Mobile ( Cover, battery, keyboard , I Phone Case )
Jewelry (Ring , pedeant , bracelet ) , eyeglass , clocks and craft
Building materials PVC pipe, Car motor car spare part,Insturments and meters and cutting tool
Plastic plastic case , aviation and aerospace
Military product hardware fitting and accessory , sanitary appliance
Food & beverage Medicine package and medical instrument , solar PV industry
Product advantage
1portable fiber laser marking machine has a long service life. The service life of the machine is long, customers do not need to change the machine frequently, so that customers can use laser marking machine marking processing can be a large amount of cost savings.
2, portable fiber laser marking machine has the characteristics of no maintenance. Maintenance of the machine is one of the ways to make the machine work better. This feature of maintenance-free saves customers a lot of unnecessary trouble, saves time and indirectly improves work efficiency.
Packing and shipping
Packing in wooden case,75*55*83cm The machine gross is 55 KG, you can use express delivery. If more than 75KG, you can choose sea transportation.
| Delviery time | 7-15 working days |
| Type of shipping | Express,air or sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 75x55x83cm |
| Gross weight | 55KG |
Fault 1: laser intensity drop, marking is not clear enough.
Solution:
1 whether the laser resonator changes or not, and fine-tuning the resonator lens. The output spot is good.
Acousto-optic crystal offset or low output energy of acousto-optic power supply; adjust the position of acousto-optic crystal or increase the working current of acousto-optic power supply;
3 the laser deviates from the center of the galvanometer: adjusting the laser;
4 if the current is adjusted to about 20A, the sensitivity is not strong enough: krypton lamp is aging and new lights are replaced.
