Product Details:
Payment & Shipping Terms:
|
| Min Quantity: | 1 Set | Colour: | White |
|---|---|---|---|
| Name: | Low Cost Dot Pin Marking Machine | Marking Depth: | 0.01-1mm |
| Marking Materials: | Metallic | Service: | Can Customize |
| Type: | Pneumatic Printer | Profit Model: | ODM |
| Support Graphics Formates: | 2d Code | ||
| High Light: | dot punching machine,handheld dot peen marking system |
||

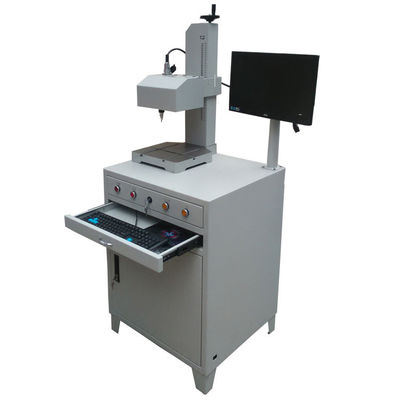

Low Cost Dot Pin Marking Machine India For Marking Machine Metal Parts
Principle
The needle marking all marks (text, numbers, LOGO, two-dimensional code) is composed of a series of points, each point is composed of needle impact marking surface. The controllable current pulse generates magnetic field through the electromagnetic coil, and the impact pin is generated by the magnetic field. The marking pin of hard alloy or mosaic industrial diamond hits the workpiece surface violently under the action of magnetic field. The high performance spring takes the needle back to the initial position and waits for the next pulse. The marking frequency is adjusted by adjusting the marking dynamics and the motion speed of the X and Y axes. The uniqueness of the purple sun marking point pin marking is that the controller can measure the frequency between every two pulses to ensure the consistency of the impact.
Application:
The marking was supposed to be done on inside surface of a ball. The surface was cylindrical in shape… just like doing marking on wall of the hole.
Solution: We had to put an extension on the marking machine so that the marking stylus could protrude out of the marking machine. Then a dotted type stylus was used to take care of the irregular surface on the inside of the ball. The marking which also involved a logo was done very effectively using this trick.
| model | Dot pin marking machine |
| weight | 50kg |
| Machinpower | <300w |
| Power supply | 220v/110v |
| Strokefre quency | 300times/s |
| Marking speed | 2-5 characters(2x2mm)/s |
| Marking depth | 0.01 to 1mm (Vary to the material) |
| Standard marking area | 80x40mm,130x30mm,140x80mm,200x200mm |
Usage method
Open the controller, set up the mark, carry on the needle operation on the software, check the needle condition by the software, and then carry on the marking operation.
Product features
Using marking machines are highly advised in most of the automation application. It has very easy integration capability. This is proved as the cost effective and reliable solution than any controller based touch screen based marking machine.
FAQ
What are the consumables of the pneumatic marking machine? The consumable material of the pneumatic marking machine is the marking needle, and the service life of the marking needle is generally 3-5 months. The service life of the diamond marking needle is three years.
Design features
Pneumatic marking machine parts with top configuration, pneumatic marking machine is driven by pneumatic solenoid valve outlet control, in the use of marking machine in the process of electromagnetic valve have been blocked, the solenoid valve can not energized, the solenoid valve can not light sparkles, solenoid valve pneumatic marking machine is a very important part of the above, the better the quality of the electromagnetic valve, the greater the power, of course, longer life, can fully guarantee the normal marking effect, some customers always marking needle effect is not good, the same marking needle, if out of gas solenoid valve is not the same, marking effect is certainly there are differences, purple marking machine allocation of all genuine MAC solenoid valve, oil-water separation, good strength, with Chongqing type marking needle better
After service
Inquiry and consulting support.
* Sample testing support.
* View our Factory. Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing and shipping
Packaging:
Packaging material: Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
| Delviery time | 7-15 working days |
| Type of shipping | Express or by sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 65x55x75cm |
| Gross weight | 50kg |
Chuke Factory
Chuke Intelligent Machinery & Equipment Co., Ltd specializes in the development and production of pneumatic marking machine, pneumatic marking machine parts, pneumatic marking needle. R & D and production of marking needle sales 11 years, is the earliest production marking needle manufacturers. Marking needle production from the ordinary lathe equipment to fully automatic CNC equipment, marking needle technology is the beginning of several processes, and now has a fully automated equipment, a process is completed, fully guaranteed product quality, accuracy, concentricity and yield issues. So purple Asahi marking needle has been fully able to meet the various types of marking machine needs. Has been throughout the country and the world. Market share of 70%. Purple Asahi is the real marking needle experts.
