Product Details:
Payment & Shipping Terms:
|
Machine Type: | Portable | Marking Pin: | 4mm |
---|---|---|---|
Controller: | USB Controller | Name: | Marking Machine For Toyota Chassis Number |
Service: | Customized | Marking Content: | Chassis Number |
Marking Materials: | Metallic | ||
High Light: | dot punching machine,handheld dot peen marking system |

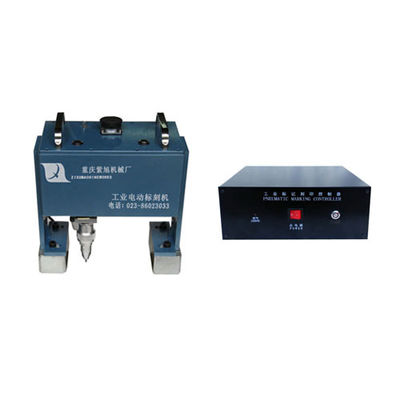

Portable Type Cnc Dot Pin Marking Machine For Chassis Number
Principle
The contents of the input to computer English character and graphics printing, computer marking software convert the content of digital control signal transmitted to the controller, drive and print on the workpiece play consisting of a continuous lattice character and graphics; the needle in the X Y two dimensional plane trajectory according to the set, and print needle under the effect of compressed air on the surface of the work piece to print out the concave marks composed of dense lattice.
Application:

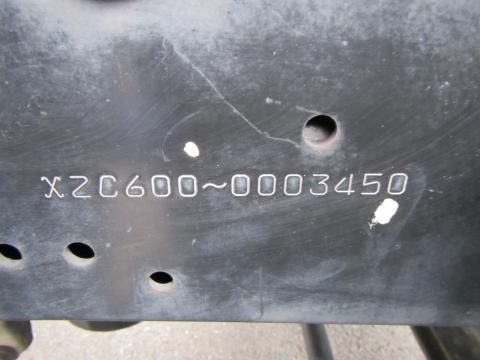

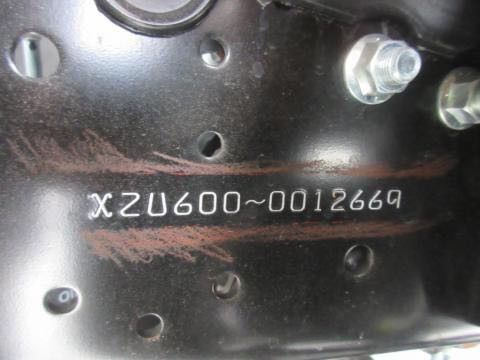

Markings of motorcycle frames, large pipes, special-shaped pieces, nameplates, and various workpieces that are not moved easily
model | Dot pin marking machine |
weight | 23kg |
Machinpower | <300w |
Power supply | 220v/110v |
Strokefre quency | 300times/s |
Marking speed | 2-5 characters(2x2mm)/s |
Marking depth | 0.01 to 1mm (Vary to the material) |
Standard marking area | 130x30mm |
Usage method
Take out the trachea, put the machine and the controller in good condition, connect the letter inserting line, plug in the power supply, and install the marking needle on the machine. The marking needle only needs to be marked away from the marking object 5mm.
Product features
For not easy to move to the workpiece on the bench marking, marking machine head to move the workpiece marking, it inherits the advantages of desktop pneumatic marking machine original, made a great improvement in the applicability of the products, to make up for the lack of bench marking machine, widely used in automobile beam easy to use, simple operation, easy to carry, can be matched with a notebook computer or machine.
FAQ
Can the scale of the pneumatic marking machine be customized? The marking stroke can be set reasonably, the marking machine is enlarged, the marking machine with increasing scope, the portable marking machine, the special marking machine for cylinder, the automobile engine marking machine and the frame marking machine. Each one is tailored for you.
Design features
Standard machine motor using a custom two-phase hybrid stepping motor, the rotor using the highest quality materials, with high step accuracy, high speed stability, high torque, so that the printing effect is very beautiful
After service
1. We sell the whole one year warranty, life-long maintenance;
2. Free installation, debugging my company sold products;
3. Free training for the use of operators, maintenance staff;
4. Free equipment upgrade software;
Packing and shipping
Packing in carton case, The machine gross is 1-75KG, you can use express delivery. If more than 75KG, you can choose sea transportation.
Delviery time | 7-15 working days |
Type of shipping | Express or by sea |
Terms of payment | T/T,credit card,,paypal |
package size | 45x45x55cm |
Gross weight | 23kg |
Chuke Factory
Chuke Machinery Factory was established in 2006, before my company staff have many years of machining experience, so initially I was established in the production of marking the needle business, with the customer's needs, our company has gradually achieved business expansion , So far the company's technology has been in the forefront of domestic counterparts, customized business reached a new level, both pneumatic marking machine or laser marking machine have been recognized by customers, marking needle is occupied the vast domestic market Part of the market. Our products have been certified by world famous quality system, including: ISO, CE, PDA, TUV and so on. Recently, the company is capturing new technical problems and providing brand new services to customers with higher requirements. Our products are completely free within the warranty period of repair and replacement, the warranty period only charge a cost, at any time to solve the urgent needs of customers, in order to solve customer needs for the purpose. No matter where you are, we can serve you.
